MRCOOL 24K MRCOOL® Hyper Heat Central Ducted Complete System

MRCOOL 24K MRCOOL® Hyper Heat Central Ducted Complete System.

What this system is

• CENTRAL-24-HP-C-230A00 — 24K BTU Hyper Heat Central Ducted Heat Pump Condenser
• CENTRAL-24-HP-MUAH230A00 — 24K MRCOOL® Hyper Heat Central Ducted Air Handler

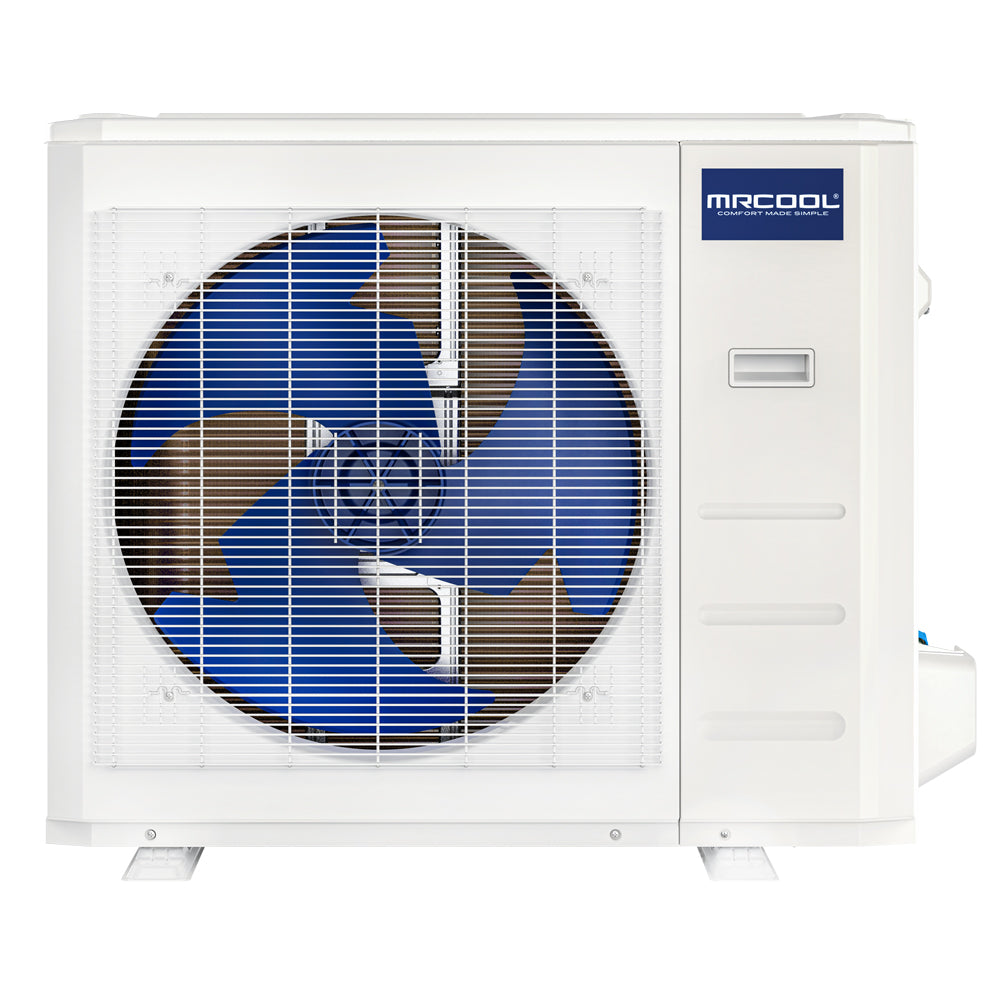

Outdoor condenser — CENTRAL-24-HP-C-230A00

The MRCOOL® 24K BTU Hyper Heat Central Ducted Heat Pump Condenser is a dependable choice for handling extreme winter and summer temperatures. Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F. Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-410A refrigerant ensures no environmental harm. Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.

• Enhanced Heating Capacity
• Includes features such as timer mode, auto cool mode, fan only mode, and more
• Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
• Multi-Position Installation
• Variable Speed
• Optional Heat Kit
• Compact, Side Discharge Design
• R-410A environmentally friendly refrigerant
• Follow Me™ Function
• Easy-Access Removable Filter

Indoor unit — CENTRAL-24-HP-MUAH230A00

The 24K MRCOOL® Hyper Heat Central Ducted Air Handler is an affordable and efficient choice for your home's heating and cooling requirements, regardless of external weather conditions. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures optimal performance. Constructed from painted galvanized steel, the unit's side-discharge design, slide-out blower, self-diagnostics panel, and removable filters make maintenance simple and easy. Effortless installation is possible by an HVAC technician, as the unit is compatible with the optional MRCOOL® No-Vac® Quick Connect® Line Set. Pre-charged with environmentally friendly R410-A refrigerant, this line set removes the need for vacuuming or flare welding and is kink-resistant. It also provides versatile installation possibilities due to its adaptability to various configurations. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote. In the unlikely event of any operational concerns, the air handler is backed by a reassuring 10-year warranty for parts and labor, offering you peace of mind. Furthermore, registration is not required for the included labor warranty.

• Enhanced Heating Capacity
• Includes features such as timer mode, auto cool mode, fan only mode, and more
• Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
• Multi-Position Installation
• Variable Speed
• Optional Heat Kit
• Compact, Side Discharge Design
• R-410A environmentally friendly refrigerant
• Follow Me™ Function
• Easy-Access Removable Filter

Documents

• Specification sheet (CENTRAL-24-HP-C-230A00) (PDF)
• Installation manual (CENTRAL-24-HP-C-230A00) (PDF)
• Service manual (CENTRAL-24-HP-C-230A00) (PDF)
• Remote manual (CENTRAL-24-HP-C-230A00) (PDF)
• Brochure (CENTRAL-24-HP-C-230A00) (PDF)
• Warranty (CENTRAL-24-HP-C-230A00) (PDF)
• AHRI certificate (CENTRAL-24-HP-C-230A00) (PDF)
• EnergyGuide label (CENTRAL-24-HP-C-230A00) (PDF)
