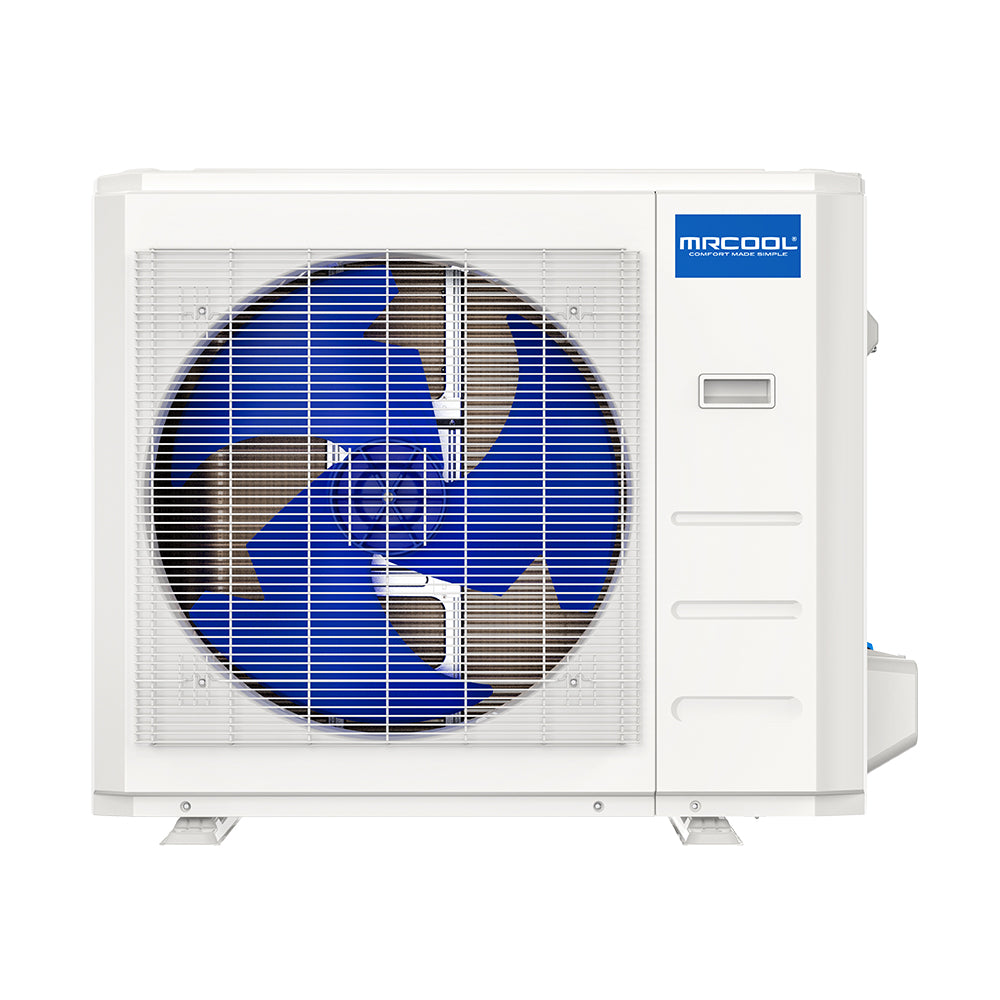

MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v
2 Ton | SEER2 22.7 | R-454B | 208/230V
- 24000 BTU cooling capacity
- Up to 22.7 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
Installing your own HVAC system doesn’t have to be difficult. The 5th Generation MRCOOL® DIY® 24k BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is made with homeowners in mind, offering a simple and efficient way to heat or cool areas between 750 and 1,000 sq. ft.—without the need for professional tools or technical experience.
This system includes a 25-foot pre-charged Quick Connect® line set filled with eco-friendly R-454B refrigerant, removing the need for vacuuming during installation. It’s a safe, time-saving solution that helps reduce labor costs and installation complexity.
Controlling your comfort is easy with multiple options: the included remote, the SmartHVAC app on Apple or Android devices, or voice control via Alexa and Google Assistant. The Follow Me® feature adds personalized comfort by sensing the temperature around the remote and adjusting accordingly. For coastal areas, the Gold Fin® condenser coating offers added protection from corrosion, ensuring lasting performance in harsh environments.
Additional features include energy-saving modes like Auto and Sleep, a built-in timer function, and automatic restart after power loss—all designed to maximize comfort and efficiency with minimal effort.
Supported by its industry-leading warranty, MRCOOL® offers lasting protection and peace of mind with a 7-year compressor warranty and a 5-year parts warranty, along with eligibility for the MRCOOL® Care Program. With advanced features, simple DIY installation, and dependable year-round performance, this system is engineered for long-term comfort and confidence.
Features
- NEEP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Additional specifications
| UPC | 840255586979 |
|---|---|
| Series | DIY 5th gen Single-Zone Mini-splits |
| Refrigerant charge (oz) | 67.37 |
| Heating capacity (BTU/h) | 24000 |
| HSPF2 (region V) | 7.1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 24 |
| Max fuse / breaker (A) | 25 |
| Inverter | DC |
| Line set included (ft) | 25 |
| Max line set length (ft) | 164 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5 |
| Compressor warranty (yrs) | 7 |
| Shipping W x H x D (in) | 42.91 x 37.01 x 19.88 |
| Shipping weight (lbs) | 155.65 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Owner's manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 22.7 |
| EER2 | 12.7 |
| HSPF2 | 9.5 |
| Sound Level | 58.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 122.8 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
