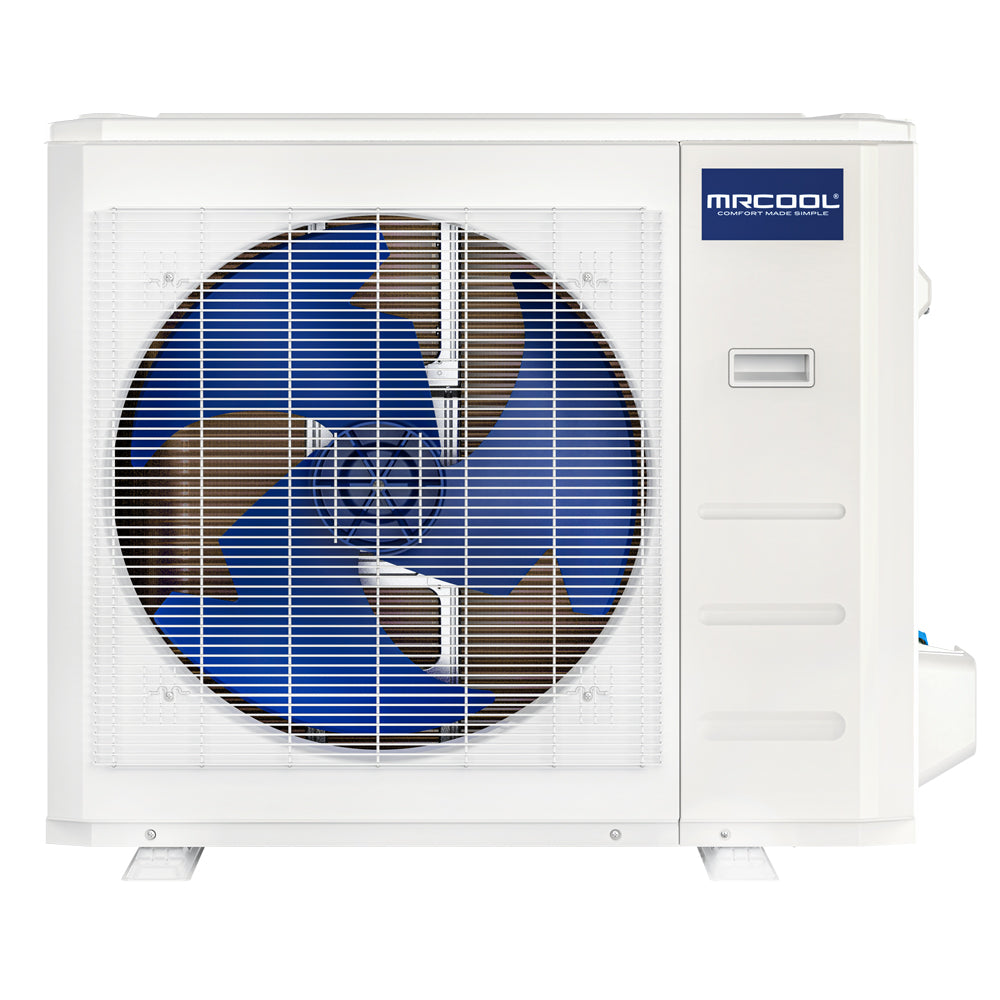

MRCOOL 24K BTU Hyper Heat Central Ducted Heat Pump Condenser
SEER2 17.4 | R-410A | 208-230V
- 24000 BTU cooling capacity
- Up to 17.4 SEER2 rated efficiency
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The MRCOOL® 24K BTU Hyper Heat Central Ducted Heat Pump Condenser is a dependable choice for handling extreme winter and summer temperatures. Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F. Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-410A refrigerant ensures no environmental harm. Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.
Features
- Enhanced Heating Capacity
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
- Multi-Position Installation
- Variable Speed
- Optional Heat Kit
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
Additional specifications
| UPC | 840255553049 |
|---|---|
| Series | Central Ducted Hyper Heat |
| Refrigerant charge (oz) | 102.29 |
| Heating capacity (BTU/h) | 24000 |
| HSPF2 (region V) | 8 |
| Airflow (CFM) | 3000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 20.5 |
| Max fuse / breaker (A) | 35 |
| Inverter | DC |
| Max line set length (ft) | 164.04 |
| Aux heater included | No |
| Aux heater available | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| UL listed | Yes |
| Shipping W x H x D (in) | 42.91 x 35.04 x 19.88 |
| Shipping weight (lbs) | 146 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Condenser |
|---|---|
| Capacity | 24000 BTU |
| SEER2 | 17.4 |
| EER2 | 11.7 |
| HSPF2 | 10 |
| Sound Level | 62 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 136.69 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
