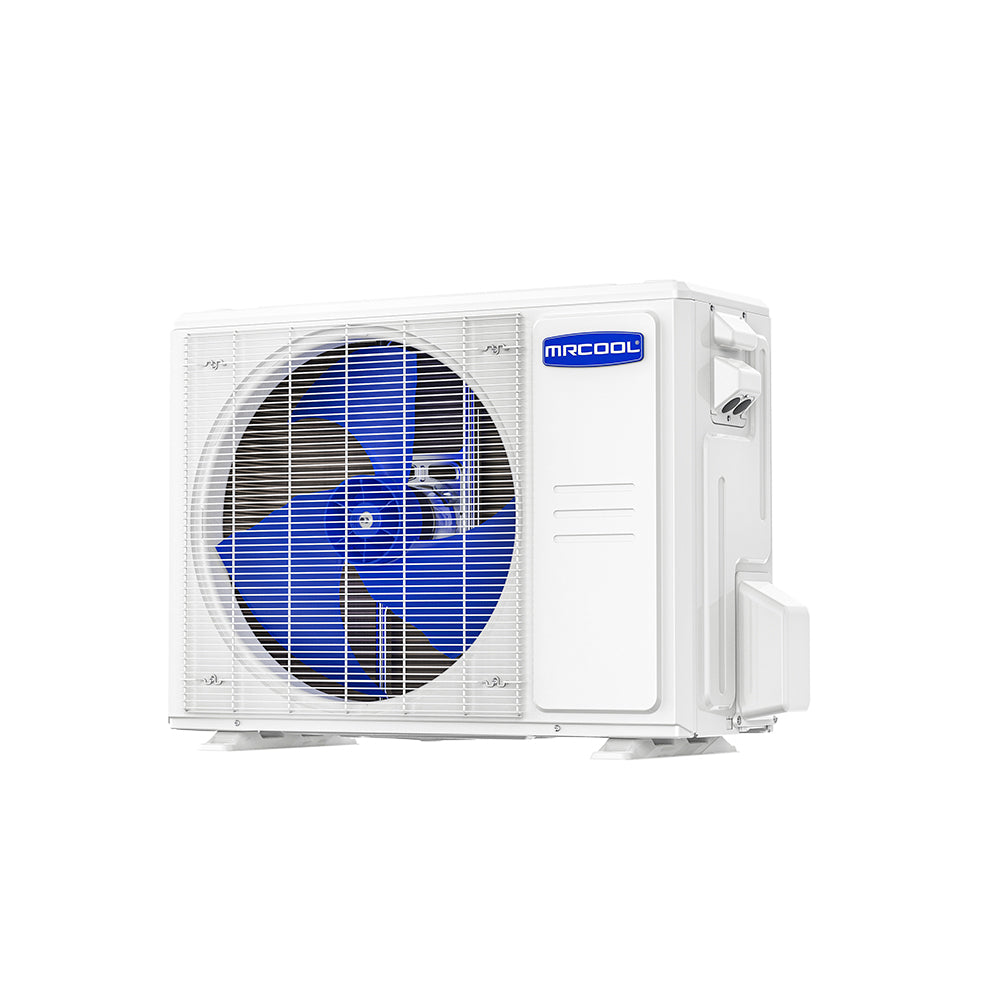

MRCOOL 2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
2 Ton | SEER2 18.1 | R454B | 208-230V
- 24000 BTU cooling capacity
- Up to 18.1 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Enhance your home’s comfort with the 2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser, designed for both efficiency and reliability. This system is built to meet your heating and cooling needs while helping to keep energy costs low.
With a 24K BTU capacity, the VersaPro® features a variable-speed design that delivers an impressive SEER2 rating of 18.1 and an HSPF4 rating of 9.7. When paired with the MRCOOL® VersaPro® Central Ducted Air Handler, you create a tailored system for your home’s specific needs. The advanced DC inverter technology ensures consistent performance, adjusting to changing temperatures to maintain the ideal indoor environment. It also comes with a MRCOOL® Smart thermostat, making it easy to adjust the temperature to your liking.
The VersaPro® condenser uses R-454B refrigerant, which is not only efficient but also eco-friendly. Its durable painted galvanized steel construction promises long-lasting reliability, while the compact side-discharge design and self-diagnostic capabilities make maintenance easier and less time-consuming.
With a 10-year warranty on the compressor and parts, you can feel confident that you’re making a smart investment. Make the switch to the 2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser today and experience unparalleled comfort and energy efficiency in your home for many years ahead.
Additional specifications
| UPC | 840255582698 |
|---|---|
| Series | VersaPro® Central Ducted Condenser |
| Refrigerant charge (oz) | 74.08 |
| Heating capacity (BTU/h) | 26000 |
| HSPF (region IV) | 9.7 |
| HSPF (region V) | 7.7 |
| Airflow (CFM) | 1765.7 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 19 |
| Max fuse / breaker (A) | 20 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 39.17 x 29.13 x 15.67 |
| Shipping weight (lbs) | 109 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 18.1 |
| EER2 | 11 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 35.04 x 26.5 x 13.46 |
|---|---|
| Weight | 102 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
