MRCOOL

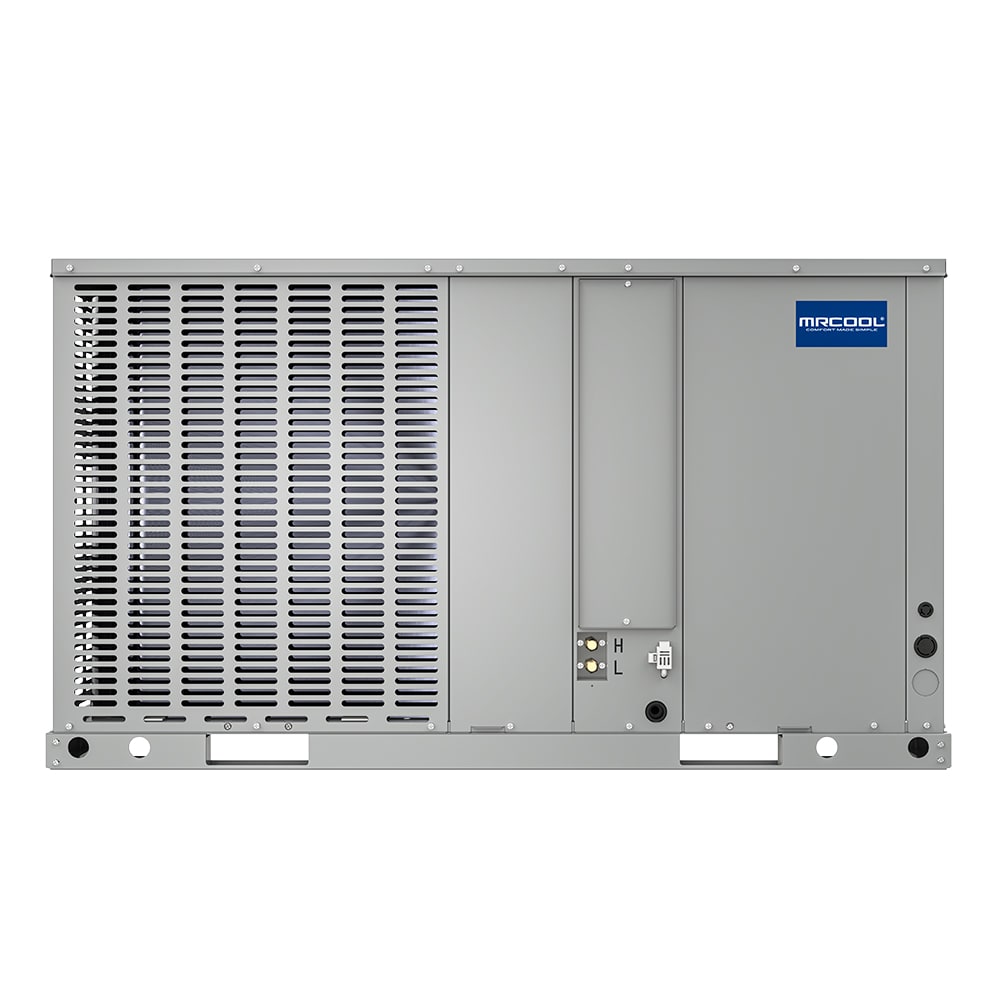

MRCOOL 2 Ton Horizontal VersaPro® Package Heat Pump - R454B
2 Ton | SEER2 13.4 | R-454B | 208/230V
- 22800 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 24K Package Heat Pump delivers dependable, year-round comfort in one compact, space-saving system. Designed for high-performance cooling in summer and powerful heating in winter, it offers the perfect balance of efficiency, durability, and convenience—making it an excellent upgrade for homeowners seeking a cost-effective HVAC solution.
With a 13.4 SEER2 rating, the VersaPro® 24K reduces energy consumption, lowering utility bills and environmental impact. It uses R-454B refrigerant, a next-generation option with a much lower global warming potential than older refrigerants, supporting eco-conscious upgrades without sacrificing performance.
Built for long-lasting durability, the unit features a power-painted galvanized steel cabinet that protects against weather and wear. Its horizontal discharge design allows quiet operation, ideal for residential areas where space and sound control matter. Inside, aluminum tubing and fin coils improve heat transfer while resisting corrosion better than copper, reducing maintenance and extending service life.
A high-efficiency full series compressor and PSC blower motor work together for superior airflow control, enhanced temperature regulation, and lower energy use. Built-in safeguards protect against pressure extremes and coil temperature issues.
Backed by a 10-year limited parts warranty and 10-year compressor warranty, the MRCOOL® VersaPro® 24K Package Heat Pump is a reliable, efficient, and environmentally responsible investment—delivering comfort, savings, and peace of mind season after season.
Additional specifications
| UPC | 840255588652 |
|---|---|
| Series | VersaPro® R-454B Package Heat Pump |
| Refrigerant charge (oz) | 62 |
| Heating capacity (BTU/h) | 22,400 |
| Airflow (CFM) | 840 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 17.9 |
| Max fuse / breaker (A) | 25 |
| Inverter | No |
| Blower motor type | PSC |
| Blower motor HP | 1/4 |
| Blower speeds | 3 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Min ambient cooling (F) | 32 |
| Min ambient heating (F) | -0.4 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5 KW / 7.5 KW / 10 KW |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 38 x 25.81 x 52.76 |
| Shipping weight (lbs) | 340 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Heat Pump |
|---|---|
| Capacity | 22800 BTU |
| Tonnage | 2 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 13.4 |
| EER2 | 11 |
| HSPF2 | 6.7 |
| Sound Level | 80 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Physical & Certifications
| Dimensions (W x H x D) | 37.75 x 24.81 x 52 |
|---|---|
| Weight | 326 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
