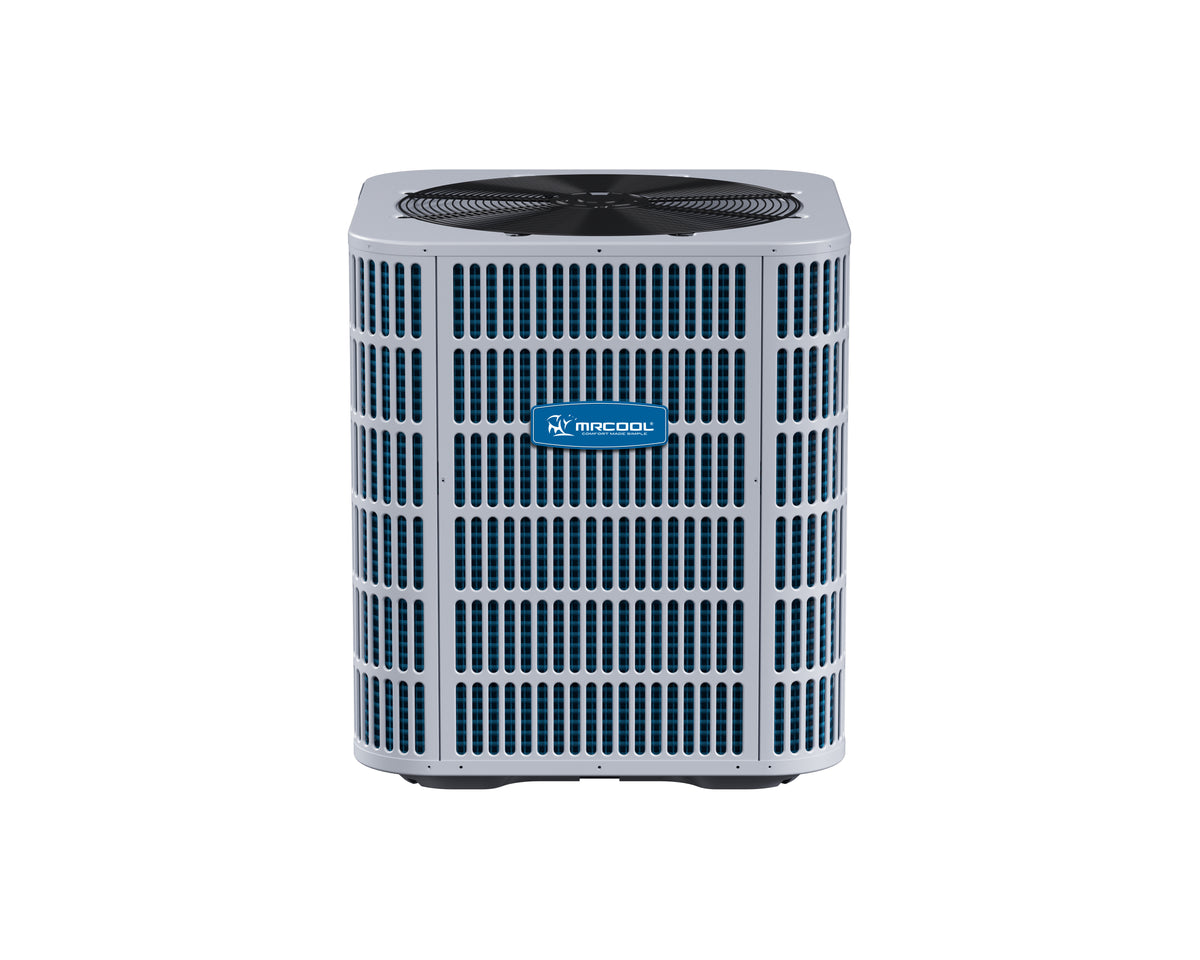

MRCOOL 2 Ton 15 SEER2 PRODIRECT Series Heat Pump Condeners
SEER2 15.2 | R410A | 208/230V
- 24000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Transform your comfort experience with the MRCOOL® 2 Ton PRODIRECT™ Series Heat Pump. This innovative system is meticulously crafted for efficiency, providing outstanding cooling and heating capabilities with an impressive SEER2 rating of up to 15.2, all while utilizing eco-friendly R410a, a chlorine free refrigerant. Engineered for durability, the PRODIRECT™ condenser boasts inner-groove copper tubes and resilient aluminum fins. Maintenance is straightforward, thanks to the service valves with sweat connections and accessible gauge ports. With the 24K PRODIRECT™ you can enjoy whisper-quiet operation at just 74 decibels, similar to the gentle hum of a dishwasher, allowing for a serene home atmosphere. Safety is paramount with built-in high and low-pressure switches that guarantee dependable performance. The compact structure not only simplifies installation and transport but also offers added protection with its wire fan discharge grille and sturdy steel louver coil guard. Plus, enhance your system's efficiency with an optional dryer filter accessory. The MRCOOL® 2 Ton PRODIRECT™ Series Heat Pump is backed by a standard 5-year warranty, along with an additional 5-year extended warranty on parts and compressor upon registration. As an AHRI-certified and ETL-listed unit, it meets stringent HVAC industry standards. Choose MRCOOL® for unparalleled comfort and peace of mind.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585590 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Heat Pump Condenser |
| Refrigerant charge (oz) | 103 |
| Heating capacity (BTU/h) | 24000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15.5 |
| Max fuse / breaker (A) | 24 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 24000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 74 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 28 x 24 15/16 x 28 |
|---|---|
| Weight | 154 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
