MRCOOL

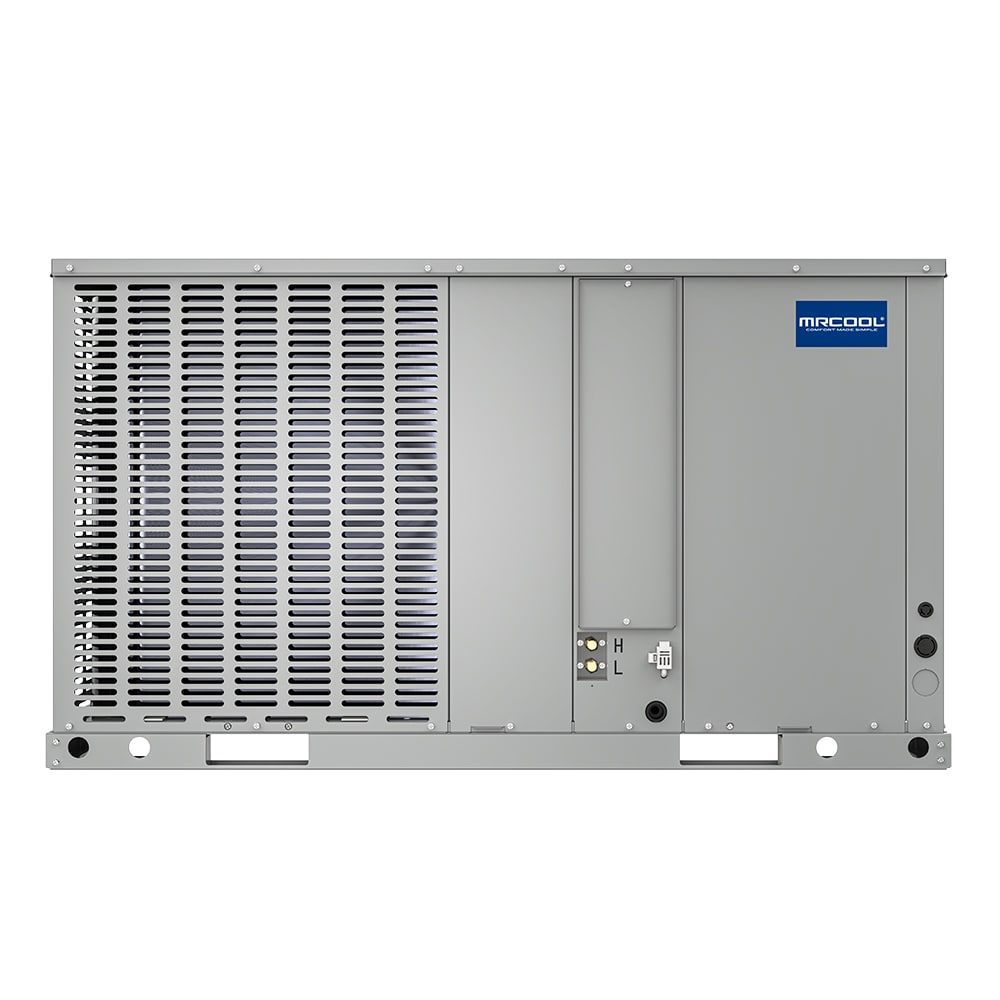

MRCOOL 2.5 Ton Horizontal VersaPro® Package Heat Pump - R454B
2.5 Ton | SEER2 13.4 | R-454B | 208/230V
- 28200 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 30K Package Heat Pump is built for year-round performance, combining powerful heating and cooling in a single, compact unit. Ideal for homeowners seeking both efficiency and durability, it delivers dependable comfort through sweltering summers and cold winter months.
With a 13.4 SEER2 rating, the VersaPro® 30K helps reduce household energy usage, lowering monthly utility costs without sacrificing output. Using R-454B refrigerant, it offers an environmentally responsible solution with a much lower global warming potential than traditional refrigerants, allowing for eco-friendly upgrades that maintain performance.
Durability is built into every detail. The power-painted galvanized steel cabinet defends against harsh weather, rust, and wear, while the horizontal discharge design ensures quiet operation—perfect for residential properties where space and noise control matter. Aluminum tubing and fin coils deliver strong heat transfer and superior corrosion resistance compared to copper, reducing maintenance needs and extending system life.
A high-efficiency full series compressor works alongside an ECM blower motor for exceptional airflow control, enhanced temperature balance, and reduced energy use. Built-in safety features guard against pressure extremes and coil temperature issues.
Covered by a 10-year limited parts warranty and 10-year compressor warranty, the MRCOOL® VersaPro® 30K delivers lasting comfort, efficiency, and peace of mind—season after season.
Additional specifications
| UPC | 840255588669 |
|---|---|
| Series | VersaPro® R-454B Package Heat Pump |
| Refrigerant charge (oz) | 58 |
| Heating capacity (BTU/h) | 27,600 |
| Airflow (CFM) | 1050 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 24.4 |
| Max fuse / breaker (A) | 30 |
| Inverter | No |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 3 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Min ambient cooling (F) | 32 |
| Min ambient heating (F) | -0.4 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5 KW / 7.5 KW / 10 KW / 15 KW |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 38 x 25.81 x 52.76 |
| Shipping weight (lbs) | 340 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Heat Pump |
|---|---|
| Capacity | 28200 BTU |
| Tonnage | 2.5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 13.4 |
| EER2 | 11 |
| HSPF2 | 6.7 |
| Sound Level | 81 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Physical & Certifications
| Dimensions (W x H x D) | 37.75 x 24.81 x 52 |
|---|---|
| Weight | 326 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
