MRCOOL

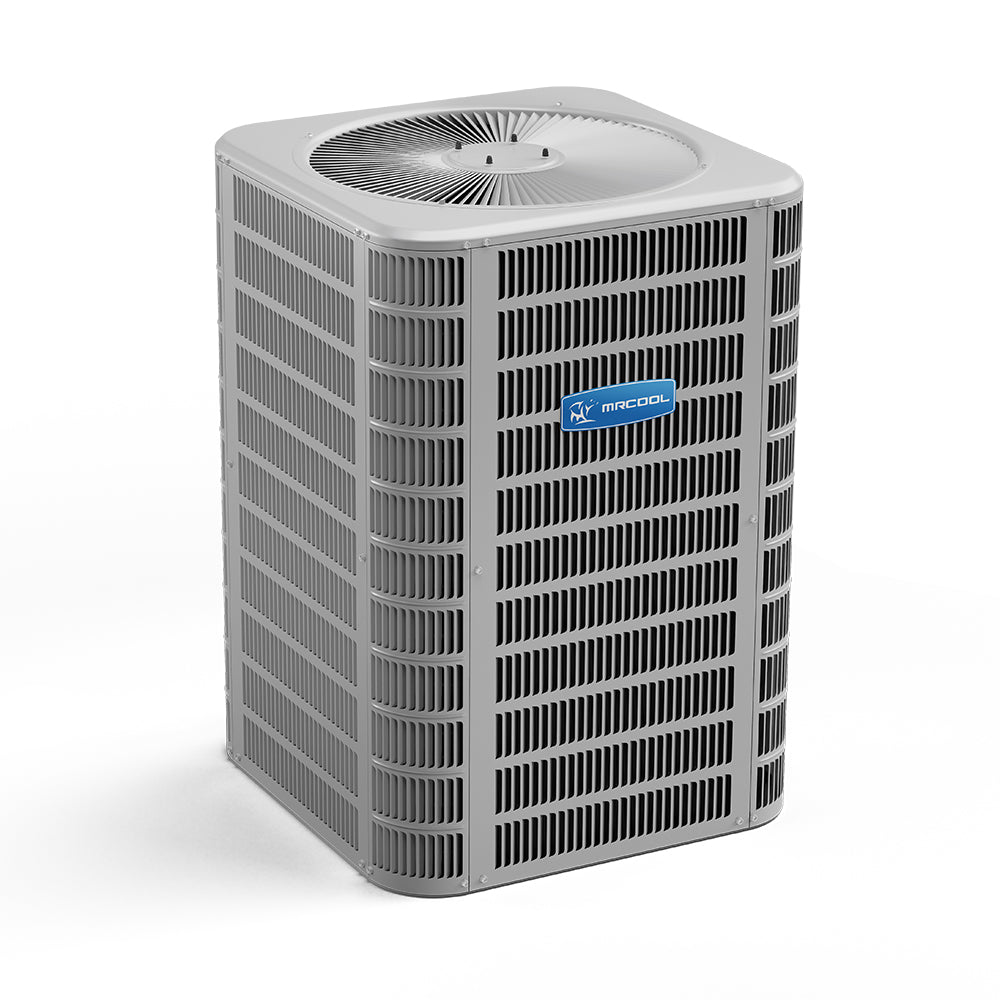

MRCOOL 2.5 Ton 30,000 BTU Split System Heat Pump
2.5 Ton | R-410A | 208-230V
- 28000-28600 BTU cooling capacity
- Single compressor
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The MRCOOL 15 SEER Heat Pump Split System works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck. You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
Features
- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil
- 4-screw louver panels, corner-mounted controlsand 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified
- 10 year registered parts warranty
Additional specifications
| UPC | 810512031023 |
|---|---|
| Series | Signature Split Heat Pump |
| Refrigerant charge (oz) | 90 |
| Heating capacity (BTU/h) | 25400-26000 |
| SEER | 15 |
| EER | 11.5 |
| Airflow (CFM) | 950-1070 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 17.1 |
| Max fuse / breaker (A) | 25 |
| Inverter | No |
| Metering device | TXV |
| Line set included (ft) | 15, 25, 35, 50 |
| Max line set length (ft) | 50 |
| Line set fitting | Sweat |
| Max coverage area | 1250 |
| Min ambient cooling (F) | 55 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 7.5kw, 10kw, 15kw |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | No |
| ETL listed | Yes |
| Parts warranty (years) | 5 Year Parts Warranty |
| Shipping W x H x D (in) | 31.00 x 37.50 x 30.50 |
| Country of origin | Mexico |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 28000-28600 BTU |
| Tonnage | 2.5 Ton |
| Compressor / Stages | Single |
| Sound Level | 76 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 28.25 x 37.00 x 28.25 |
|---|---|
| Weight | 178.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
