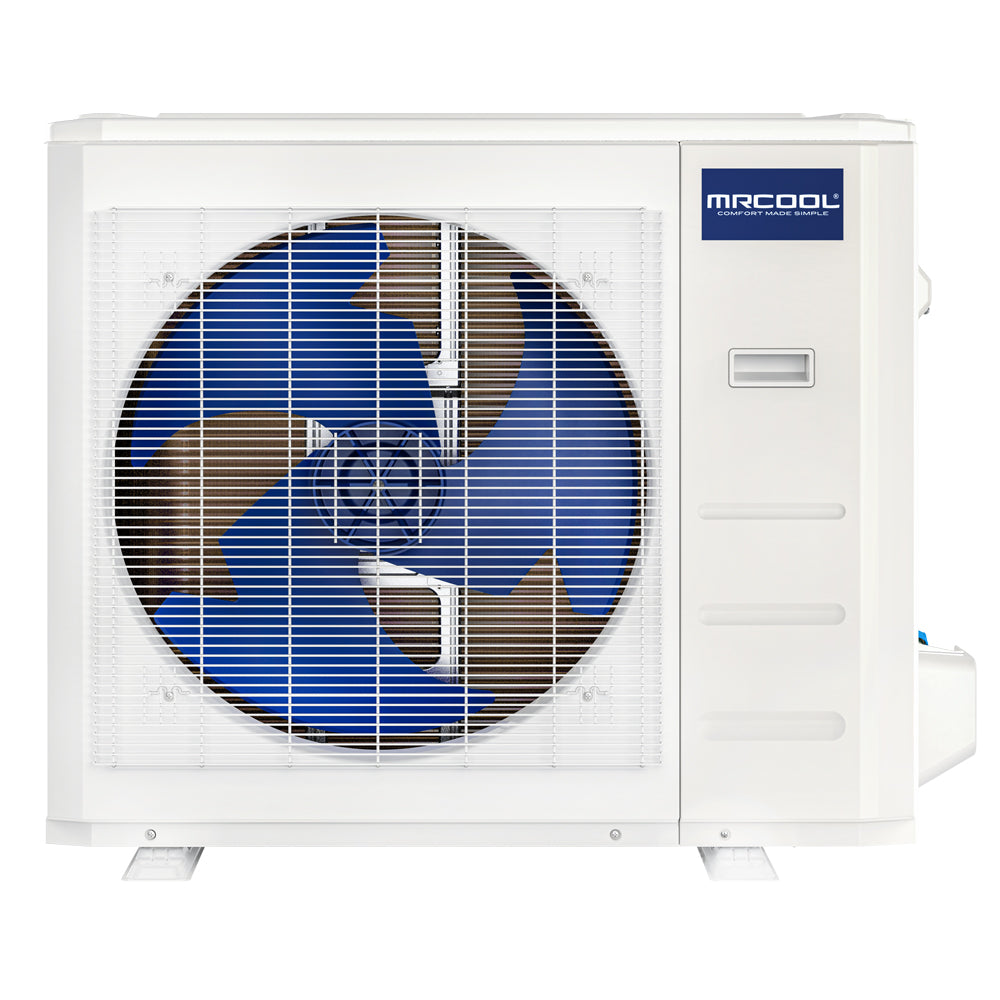

MRCOOL 1.5 Ton MRCOOL® VersaPro® Central Ducted Condenser
1.5 Ton | SEER2 16.6 | R410A | 208-230V
- 17000 BTU cooling capacity
- Up to 16.6 SEER2 rated efficiency
- Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Feeling uncomfortable in your own home can be frustrating, particularly when considering the costs and time commitments required for HVAC upgrades. However, the solution to all of your home comfort struggles lies within reach with the 1.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser. This 1.5 Ton VersaPro® MRCOOL® Central Ducted Heat Pump Condenser is a variable speed 18k unit boasting an impressive SEER2 of 16.6 and HSPF4 of 10.2. Designed to seamlessly pair with the MRCOOL® VersaPro® Central Ducted Air Handler, the combination creates a high-quality system perfect for any home. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. The convenience of installation is further enhanced by the inclusion of a 25-foot MRCOOL® Quick Connect® precharged line set, facilitating swift and trouble-free setup for professional HVAC technicians. Precharged with eco-friendly R-410A refrigerant, this line set eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, its compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.
Additional specifications
| UPC | 840255577472 |
|---|---|
| Series | VersaPro |
| Refrigerant charge (oz) | 56 |
| Heating capacity (BTU/h) | 18000 |
| HSPF2 (region V) | 7.9 |
| Airflow (CFM) | 1764.71 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 18 |
| Max fuse / breaker (A) | 30 |
| Max line set length (ft) | 98.42 |
| AHRI certified | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 40.55 x 29.13 x 18.11 |
| Shipping weight (lbs) | 100.97 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 17000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 16.6 |
| EER2 | 11.7 |
| HSPF2 | 10.2 |
| Sound Level | 58 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 35.04 x 26.5 x 13.46 |
|---|---|
| Weight | 94.36 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
