MRCOOL

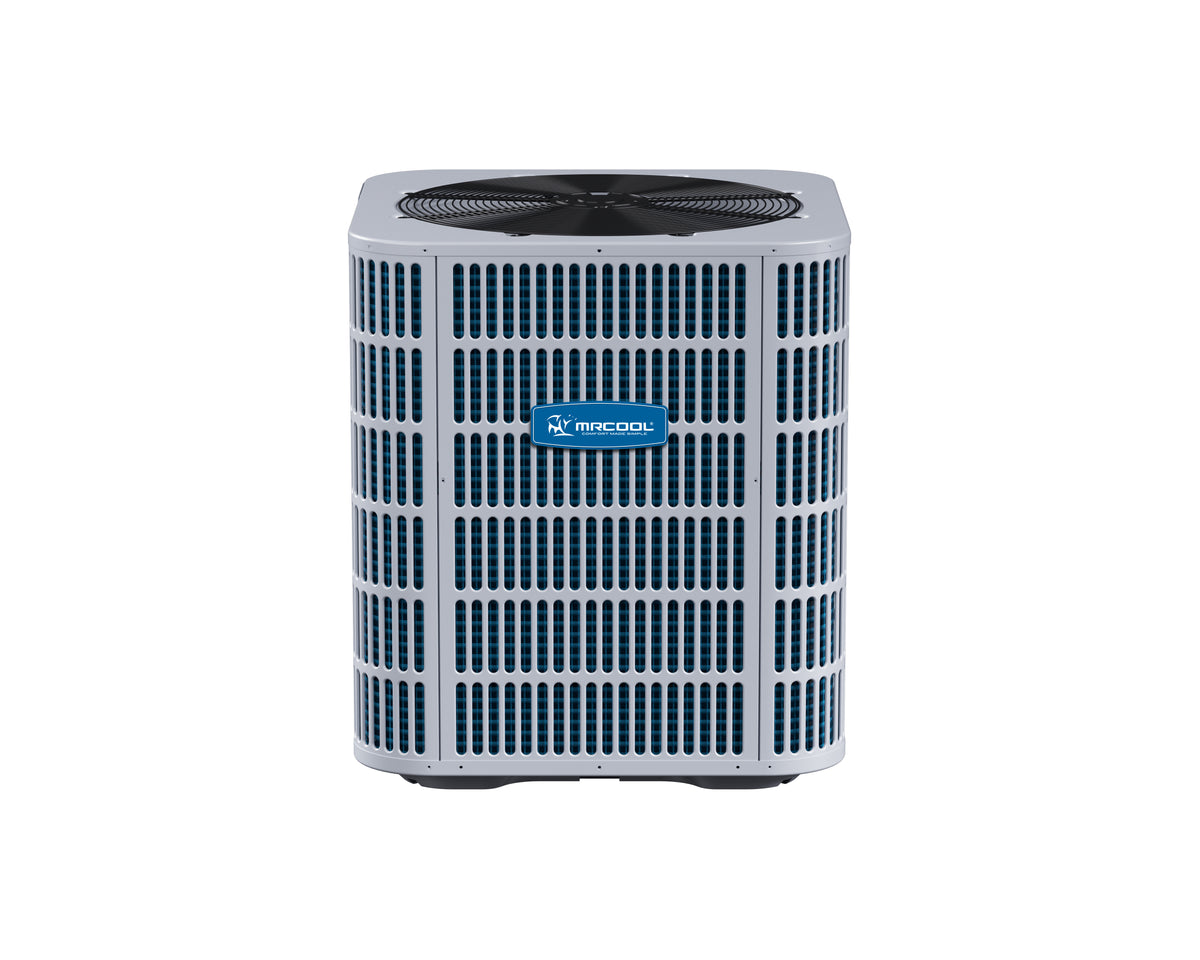

MRCOOL 1.5 Ton 15 SEER2 PRODIRECT Series Heat Pump Condeners
SEER2 15.2 | R410A | 208/230V
- 18000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Discover the 1.5 Ton PRODIRECT™ Series Heat Pump, the ultimate solution for those seeking unmatched efficiency and dependable performance. With a SEER2 rating of up to 15.2, this system operates using chlorine-free R410A refrigerant and includes an energy-efficient compressor to ensure consistent performance. Engineered with durability in mind, this heat pump features a high-quality condenser with inner-groove copper tubes and aluminum fins. It also has service valves for sweat connections and accessible gauge ports, making maintenance more streamlined. The 18K PRODIRECT™ model prioritizes safety, incorporating factory-installed high and low-pressure switches. Its sound-control top helps maintain noise levels at 72 decibels, similar to that of a hair dryer, contributing to a comfortable home environment. Additionally, its compact design allows for easy installation and hassle-free transportation, while the wire fan discharge grille and steel louver coil guard enhance durability. Homeowners can also add an optional drier filter as an accessory. This unit is AHRI-certified and ETL-listed, meeting strict HVAC industry standards. To protect your investment, MRCOOL® provides a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. With its focus on steady performance and long-term reliability, the 1.5 Ton PRODIRECT™ Series Heat Pump is an excellent option for homeowners.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585583 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Heat Pump Condenser |
| Refrigerant charge (oz) | 84 |
| Heating capacity (BTU/h) | 18000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 13 |
| Max fuse / breaker (A) | 20 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 18000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 72 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 23 5/8 x 24 15/16 x 23 5/8 |
|---|---|
| Weight | 137 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
