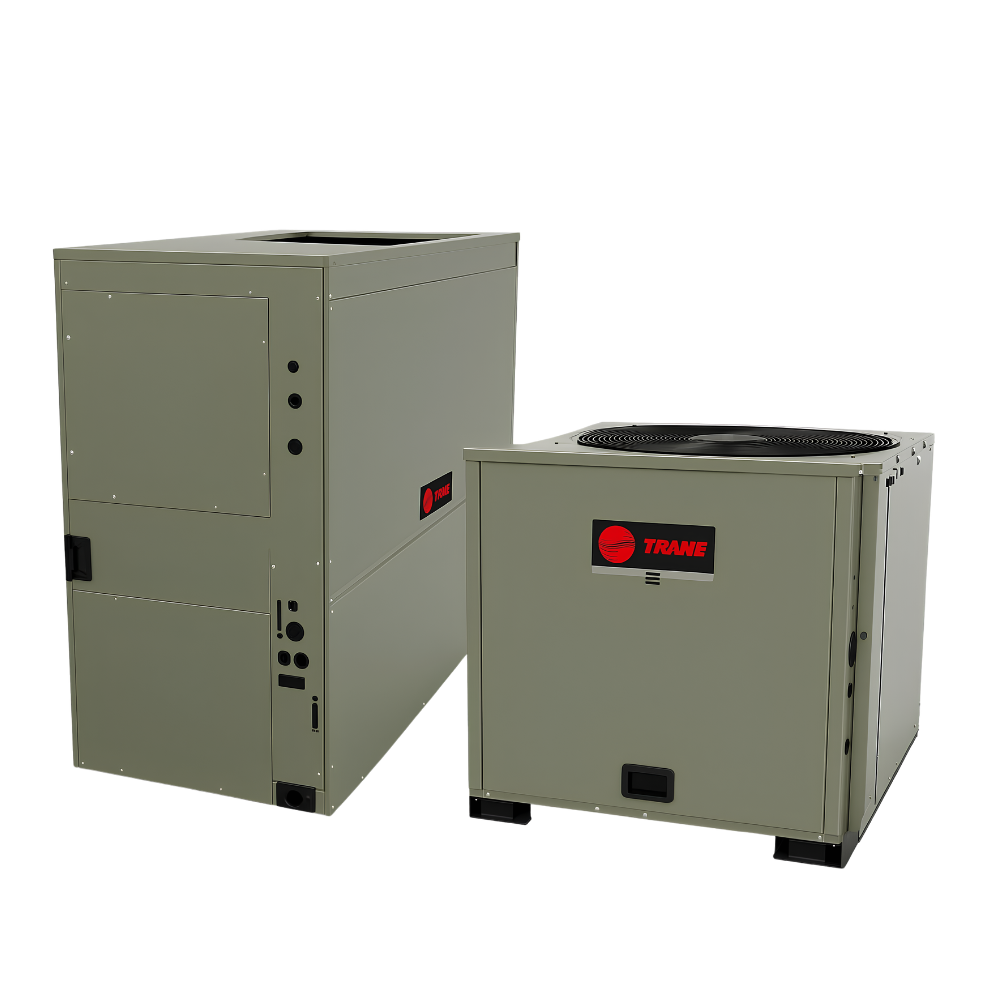

Trane 7.5 Ton Commercial Split Heat Pump System 2-Stage 208/230V 3Ph R-454B 11.0 EER 14.1 IEER

Trane Odyssey 7.5 Ton Two-Stage Commercial Split Heat Pump System – 208/230V 3-Phase | R-454B

The Trane Odyssey 7.5-ton two-stage commercial split heat pump system is engineered for larger light commercial spaces where single-stage equipment falls short on efficiency and comfort control. Delivering 90,000 BTU of heating and cooling capacity across two stages of operation, this system pairs a matched Trane TWA outdoor condensing unit with a TWE indoor air handler — rated at 11.0 EER and 14.1 IEER for strong real-world efficiency across the full range of commercial operating conditions.

Powered by R-454B refrigerant at 208/230V 3-phase, the Odyssey 7.5-ton system is built for commercial electrical services standard in mid-size retail, medical, office, and light industrial applications — and positioned for long-term refrigerant compliance as R-410A phase-down continues.

Two-Stage Capacity Control

At 7.5 tons, two-stage operation is especially valuable. Oversized single-stage equipment at this capacity tier is a common source of short-cycling, humidity problems, and elevated operating costs in commercial buildings. Two-stage control solves all three:

• First stage handles the partial loads that dominate most commercial operating hours — running longer cycles at lower capacity for better dehumidification and more even temperature distribution
• Second stage engages only when peak cooling or heating demand requires full output — avoiding the mechanical stress and energy spikes of single-stage full-capacity cycling
• 14.1 IEER reflects the weighted part-load efficiency across 100%, 75%, 50%, and 25% load conditions — the number that drives actual utility costs in commercial operation
• Tighter supply air temperature control reduces thermostat overshoot and improves occupant comfort in larger open-plan spaces

R-454B Next-Generation Refrigerant

R-454B carries a GWP of 466 — approximately 78% lower than R-410A. At 7.5-ton capacity, the long-term cost implications of refrigerant compliance are significant: equipment already running R-454B avoids future retrofit costs, service disruption, and the rising cost of R-410A as supply tightens under EPA phase-down rules. R-454B is A2L-classified under ASHRAE 34 — this system is engineered and listed for compliant A2L use per current UL and AHRI standards.

Trane Odyssey Commercial Engineering

• Climatuff® Scroll Compressor: Two-stage Climatuff compressor platform engineered for commercial duty cycles — not residential peak-hour use. Staged capacity control is factory-integrated, not field-added
• Spine Fin™ Outdoor Coil: Aluminum spine fin geometry maximizes heat transfer surface area while resisting debris accumulation and maintaining airflow efficiency across the coil's service life
• WeatherGuard™ Hardware: Stainless steel fasteners, UV-resistant cabinet panels, and coated coil surfaces for long-term outdoor performance in rooftop and ground-level commercial installations
• 3-Phase Power: Balanced load across all three phases reduces electrical noise, enables smaller circuit protection, and delivers smoother compressor operation versus single-phase alternatives at this capacity
• TWE Air Handler: Multi-positional indoor unit with factory-installed expansion device and check valve, accommodating a range of installation orientations without field modification

System Efficiency

Application Fit

Ideal for:

• Retail spaces: 3,000–4,500 sq ft depending on envelope and internal load
• Medical and dental offices with high occupancy or equipment loads
• Restaurant dining rooms, bars, and hospitality spaces
• School and university classroom wings
• Light industrial offices, showrooms, and training facilities
• Multi-tenant commercial buildouts requiring zoned comfort

Not recommended for: High-latent kitchen environments, 100% outside air applications, or process cooling — contact us for DOAS or dedicated OA unit options for those requirements.

Installation Notes

• Requires matched Trane TWE indoor air handler — contact us to confirm matched coil compatibility for this outdoor unit
• 208/230V 3-phase power supply required at the disconnect
• R-454B (A2L) refrigerant requires A2L-compliant service tools and technician familiarity with A2L handling per ASHRAE 15 and local AHJ requirements
• Professional installation by a licensed commercial HVAC contractor required
• 10-year limited warranty on compressor, outdoor coil, and functional parts with registration
