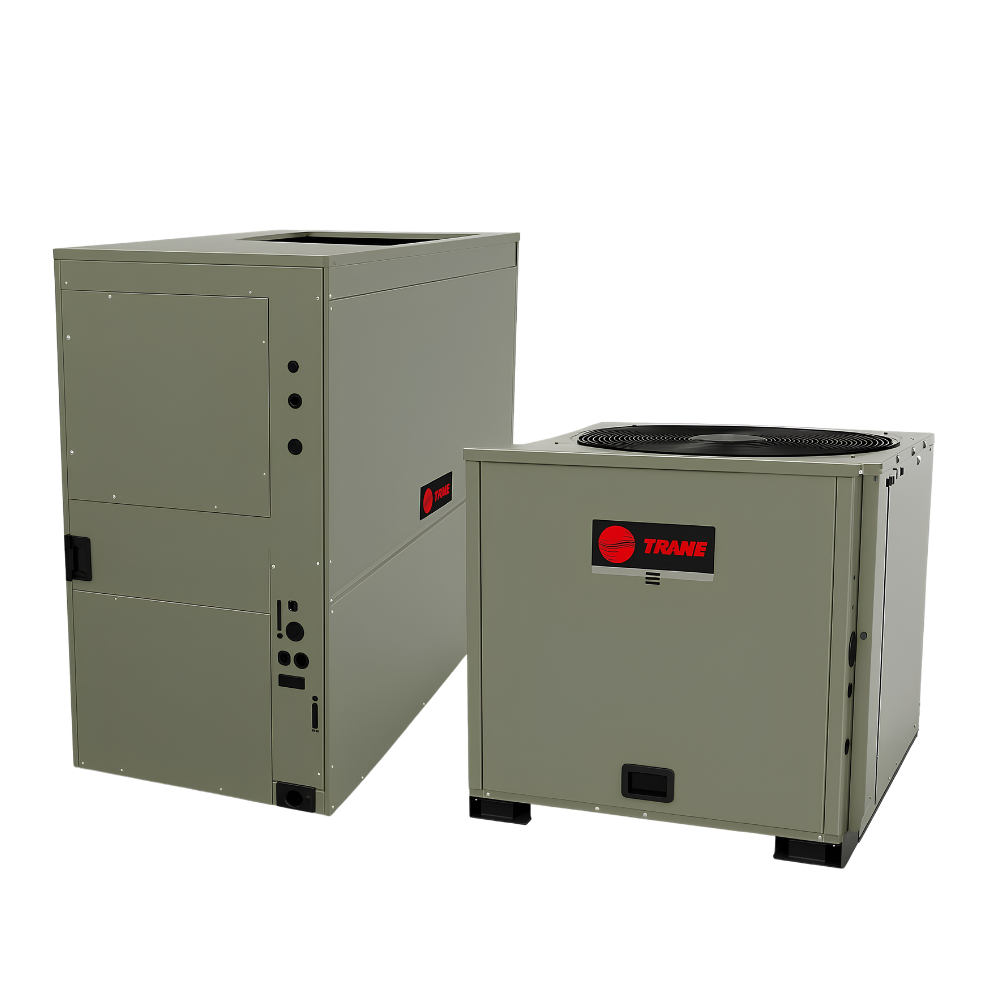

Trane 6 Ton Commercial Split Heat Pump System 2-Stage 208/230V 3Ph R-454B 11.2 EER 14.1 IEER

Trane 6 Ton Two-Stage Commercial Split Heat Pump System – 208/230V 3-Phase | R-454B

The Trane 6-ton two-stage commercial split heat pump system is purpose-built for light commercial applications where efficiency, reliability, and precise load matching are non-negotiable. Delivering 72,000 BTU of heating and cooling capacity across two stages of operation, this system pairs Trane's proven commercial outdoor heat pump condensing unit with a matched indoor air handler — engineered together from the ground up for optimized system efficiency ratings of 11.2 EER and 14.1 IEER.

Running on R-454B — the next-generation low-GWP refrigerant replacing R-410A — this system positions your building for long-term refrigerant compliance while delivering the same or better performance than legacy R-410A equipment. At 208/230V 3-phase, it's designed for commercial electrical services standard in retail, office, medical, and light industrial applications.

Two-Stage Capacity Control

Two-stage operation is the defining performance advantage of this system over single-stage commercial equipment. At first stage — typically 67–70% of full capacity — the system handles the partial loads that represent the majority of annual operating hours in most US climates. The compressor only escalates to full second-stage output when peak demand requires it. The results are measurable:

• Lower average energy consumption versus single-stage equipment of equivalent nominal capacity
• More precise supply air temperature control — less overshoot and temperature swing in conditioned spaces
• Extended compressor run cycles at lower capacity — better humidity control and more even comfort delivery
• Reduced mechanical stress versus short-cycling at full capacity — longer compressor service life
• Higher IEER (14.1) versus EER (11.2) reflects the real-world efficiency gains from part-load operation

R-454B Next-Generation Refrigerant

R-454B carries a Global Warming Potential (GWP) of 466 — approximately 78% lower than R-410A's GWP of 2,088. As EPA Section 608 regulations and state-level refrigerant transition mandates continue to tighten, equipment already running R-454B avoids the service cost and operational disruption of future retrofit requirements. R-454B is classified as A2L (mildly flammable) under ASHRAE 34 — this system is engineered and listed for compliant A2L refrigerant use per current UL and AHRI standards.

Trane Commercial Engineering

Trane's light commercial split heat pump lineup is built on the same engineering principles as their large commercial equipment — components selected for longevity under continuous commercial duty cycles, not residential peak-hour usage patterns. Key construction features include:

• Climatuff® Compressor: Trane's proprietary scroll compressor platform, engineered for commercial duty with two-stage capacity staging and tested to industry-leading reliability standards
• Spine Fin™ Coil: Trane's aluminum spine fin coil geometry maximizes surface area for heat transfer while resisting debris accumulation and maintaining airflow efficiency over the coil's service life
• WeatherGuard™ Hardware: Stainless steel fasteners, coated coil, and UV-resistant cabinet panels designed for long-term outdoor exposure in commercial rooftop and ground-level installations
• 3-Phase Motor: The 208/230V 3-phase configuration delivers balanced power draw across all three legs, reducing electrical noise and enabling use of smaller circuit protection versus single-phase equivalent equipment at this capacity

System Efficiency

The 14.1 IEER rating reflects weighted part-load efficiency across four operating conditions (100%, 75%, 50%, and 25% load) — the metric most representative of real-world commercial operating costs. For building owners and energy managers comparing lifecycle cost, IEER is the number that matters most on the monthly utility bill.

Application Fit

This system is suited for:

• Retail spaces: 2,500–3,500 sq ft depending on envelope and internal load
• Medical and dental offices with high internal gains
• Restaurant dining rooms and front-of-house spaces
• Light industrial offices and break rooms
• School and university classroom buildings
• Multi-tenant light commercial buildouts

Not recommended for: Kitchen exhaust makeup air, high-humidity process environments, or spaces requiring 100% outside air without supplemental dehumidification — contact us for commercial DOAS or dedicated OA unit recommendations for those applications.

Installation Notes

• Requires matched Trane indoor air handler — contact us to confirm matched coil and air handler compatibility for this outdoor unit
• 208/230V 3-phase power supply required at the disconnect — verify available service before ordering
• R-454B (A2L) refrigerant requires A2L-compliant service equipment and technician familiarity with A2L handling procedures per ASHRAE 15 and local codes
• Professional installation by a licensed commercial HVAC contractor required
• Consult local authority having jurisdiction (AHJ) for permit requirements on commercial split system installations
