Senville

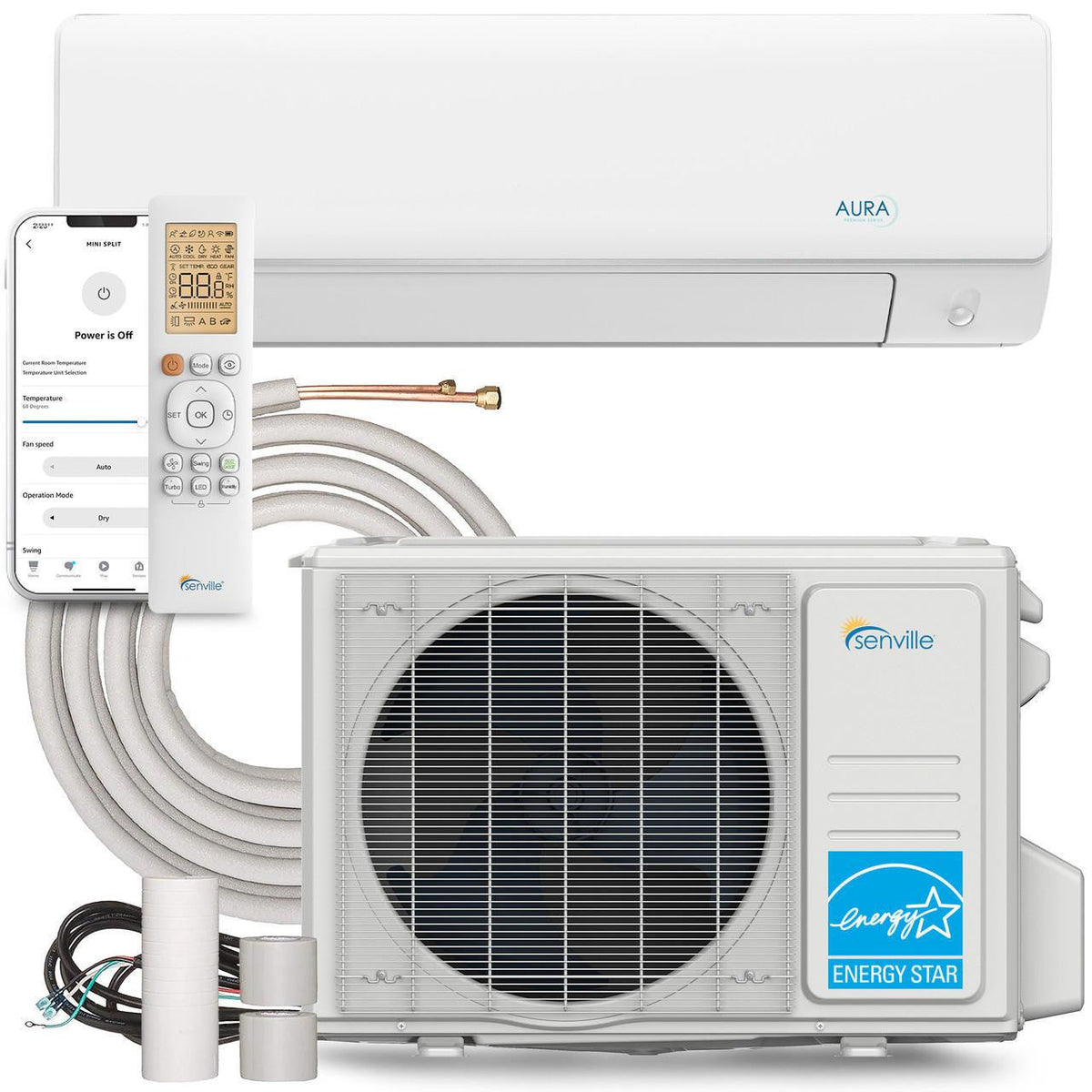

Senville ELITE 18,000 BTU 25.6 SEER2 Mini Split Air Conditioner Heat Pump
1.5 Ton | SEER2 25.6 | R-454B | 208-230V
- 18000 BTU cooling capacity
- Up to 25.6 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville ELITE 18,000 BTU 25.6 SEER2 Mini Split Air Conditioner Heat Pump
Senville SENE-18EL is part of our Elite Series, a next-generation high-efficiency 18000 BTU mini split engineered for superior performance, quieter operation, and advanced cold-climate heating. ENERGY STAR certified and backed by a 10-year compressor warranty, it delivers premium comfort for year-round use.
System is pre-charged with R454B refrigerant for up to 25 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
What's Included:
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Alexa USB Kit
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Documentation and certifications:
- ENERGY STAR Certified
- UL Certified
- AHRI Certified (View Certificate)
- EnergyGuide (View EnergyGuide Label)
- Owner Manual (View Owner Manual)
- Installation Manual (View Installation Manual)
Technical Specifications:
| Model Number | SENE-18EL |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 25.6 |
| EER2 | 15.0 |
| Cooling Capacity (BTU) | 18000 |
| Cooling Range (BTU) | 12600~27900 |
| Cooling Input Range (W) | 940~2280 |
| Cooling Current Range (A) | 3.2~8.5 |
| Heating Capacity (BTU) | 20000 |
| Heating Range (BTU) | 9700~29700 |
| Heating Input Range (W) | 325~2440 |
| Heating Current Range (A) | 2.8~10.2 |
| HSPF2-4 | 16.2 |
| HSPF2-5 | 10.0 |
| COP W/W | 4.40 |
| Minimum Circuit Ampacity (A) | 24.9 |
| Max. Fuse (A) | 25 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 812 / 618 / 412 / 318 |
| Indoor Noise Level (Turbo/H/M/L) dB | 54.5 / 43.5 / 32.7 / 27 |
| Indoor Dimensions (WxDxH) | 46.85 x 11.02 x 13.46 in |
| Indoor Weight | 43.65 lbs |
| Moisture Removal (L/H) | 1.1 |
| Outdoor Air Flow (Max) CFM | 2235 |
| Outdoor Noise Level dB | 57 |
| Outdoor Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Outdoor Weight | 130.29 lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 63.45 oz |
| Refrigerant Pre-charge | 25 ft |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 10 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 18000 BTU |
| Tonnage | 1.5 Ton |
| SEER2 | 25.6 |
| EER2 | 15.0 |
| HSPF2 | 10.2 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
