Senville
Senville ELITE 12,000 BTU 29.4 SEER2 Mini Split Air Conditioner Heat Pump - R454B - 230V
1 Ton | SEER2 29.4 | R-454B | 208-230V
- 12000 BTU cooling capacity
- Up to 29.4 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview

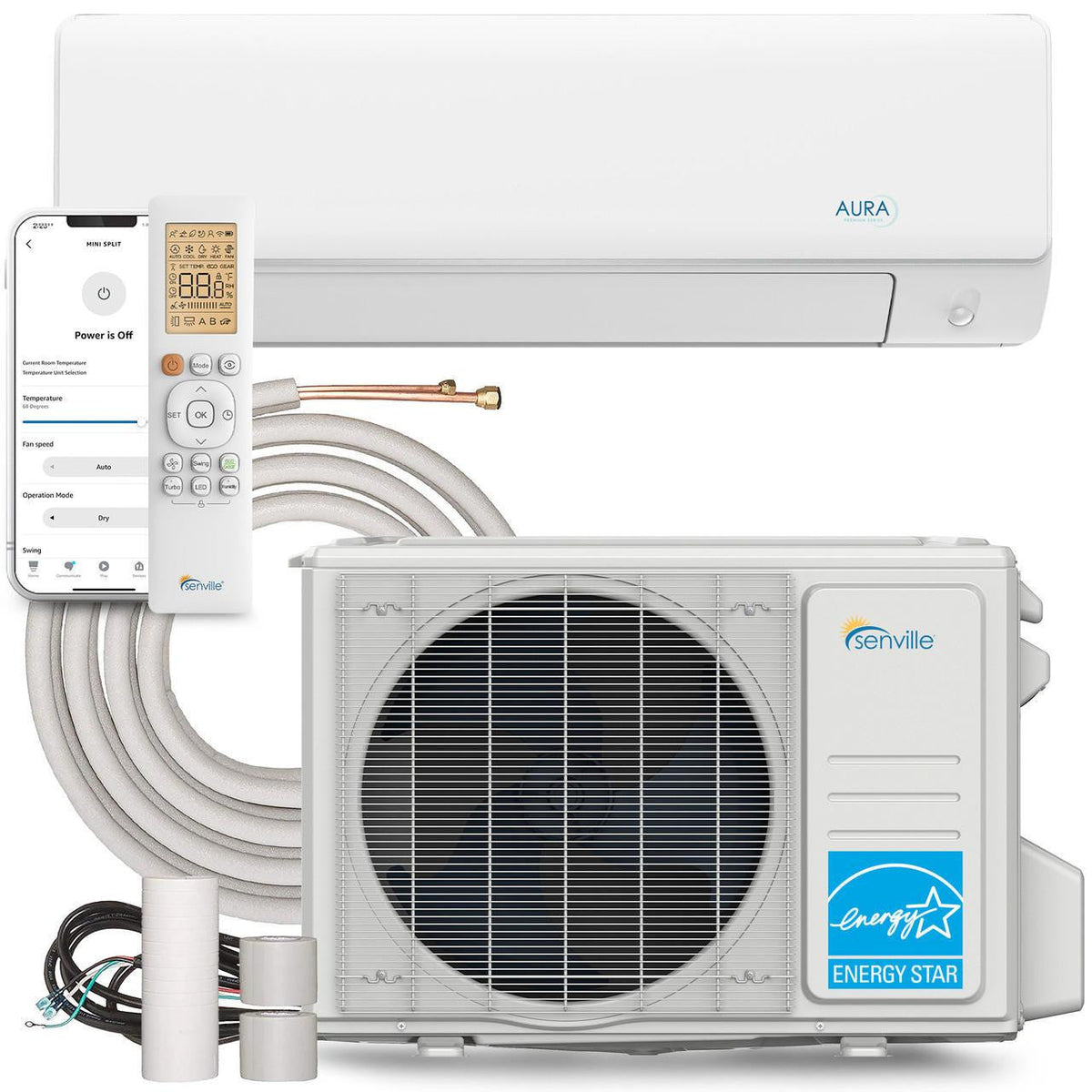

Senville ELITE 12,000 BTU 29.4 SEER2 Mini Split Air Conditioner Heat Pump
Senville SENE-12EL is part of our Elite Series, a next-generation high-efficiency 12,000 BTU mini split engineered for superior performance, quieter operation, and advanced cold-climate heating. ENERGY STAR certified and backed by a 10-year compressor warranty, it delivers premium comfort for year-round use.
System is pre-charged with R454B refrigerant for up to 25 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
|
29.4 SEER2 ENERGY STAR Save up to 58% on energy costs annually. |
Heating down to -30°C (-22°F) Reliable performance in extreme cold. |
|
Alexa Enabled Smart Control Control via voice or app anywhere. |
Ultra-Quiet Operation Whisper-quiet for bedrooms & offices. |
|
Recommended for 400–550 sq. ft. Great for small rooms or studios. |
Professional Installation Required to maintain warranty coverage. |
What's Included:
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Alexa USB Kit
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Documentation and certifications:
- ENERGY STAR Certified
- UL Certified
- AHRI Certified (View certificate)
- EnergyGuide Label (View EnergyGuide label)
- User guide (View installation guide)
- Installation guide (View installation guide)
Technical specifications:
| Model number | SENE-12EL |
| Style | Ductless wall-mounted air conditioner with heat pump |
| Power supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage range | 187–253 |
| SEER2 | 29.4 |
| EER2 | 14.2 |
| Cooling capacity (BTU) | 12000 |
| Cooling range (BTU) | 3100~16500 |
| Cooling input power (W) | 180~1380 |
| Cooling current (A) | 1.2~6.2 |
| Heating capacity (BTU) | 12000 |
| Heating range (BTU) | 4100~17200 |
| Heating input power (W) | 200~1585 |
| Heating current (A) | 1.1~7.2 |
| HSPF2-4 | 14.5 |
| HSPF2-5 | — |
| COP W/W | 3.60 |
| Minimum circuit ampacity (A) | 3.0 |
| Maximum fuse (A) | 15 |
| Indoor air flow (Turbo/H/M/L) CFM | 559.2 / 423.8 / 211.9 / 153.0 |
| Indoor noise level (Turbo/H/M/L) dB | 41.5 / 41.5 / 33 / 23 |
| Indoor dimensions (W x D x H) | 40.04 x 9.53 x 12.56 in |
| Indoor weight | 28.22 lb |
| Dehumidification (L/h) | 0.5 |
| Outdoor air flow (max) CFM | 1470.6 |
| Outdoor noise level dB | 57 |
| Outdoor dimensions (W x D x H) | 35.04 x 13.46 x 26.50 in |
| Outdoor weight | 99.65 lb |
| Minimum outdoor heating temperature | -22°F / -30°C |
| Refrigerant type / Charge | R454B / 44.09 oz |
| Refrigerant pre-charge | 24.67 ft |
| Connection wiring | 14*4 AWG |
| Thermostat type | Remote control |
| Alexa | Enabled |
| Warranty | 10-year compressor / 10-year parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 12000 BTU |
| Tonnage | 1 Ton |
| SEER2 | 29.4 |
| EER2 | 14.2 |
| HSPF2 | 7.2 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
