Senville
Senville AURA 48,000 BTU (9K + 9K + 9K + 9K + 9K + 9K) 23 SEER2 6 Zone Mini Split Air Conditioner - 230V
4 Ton | SEER2 23 | R-454B | 208-230V
- 48000 BTU cooling capacity
- Up to 23 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville AURA 48,000 BTU (9K+9K+9K+9K+9K+9K) 23 SEER2 6 Zone Mini Split Air Conditioner - 230V
Senville SENA-48HF/Q is a high-efficiency 48000 BTU 6 zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
System is pre-charged with R454B refrigerant for up to 125 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 23 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Whisper-Quiet Operation
- Smart Control with Alexa

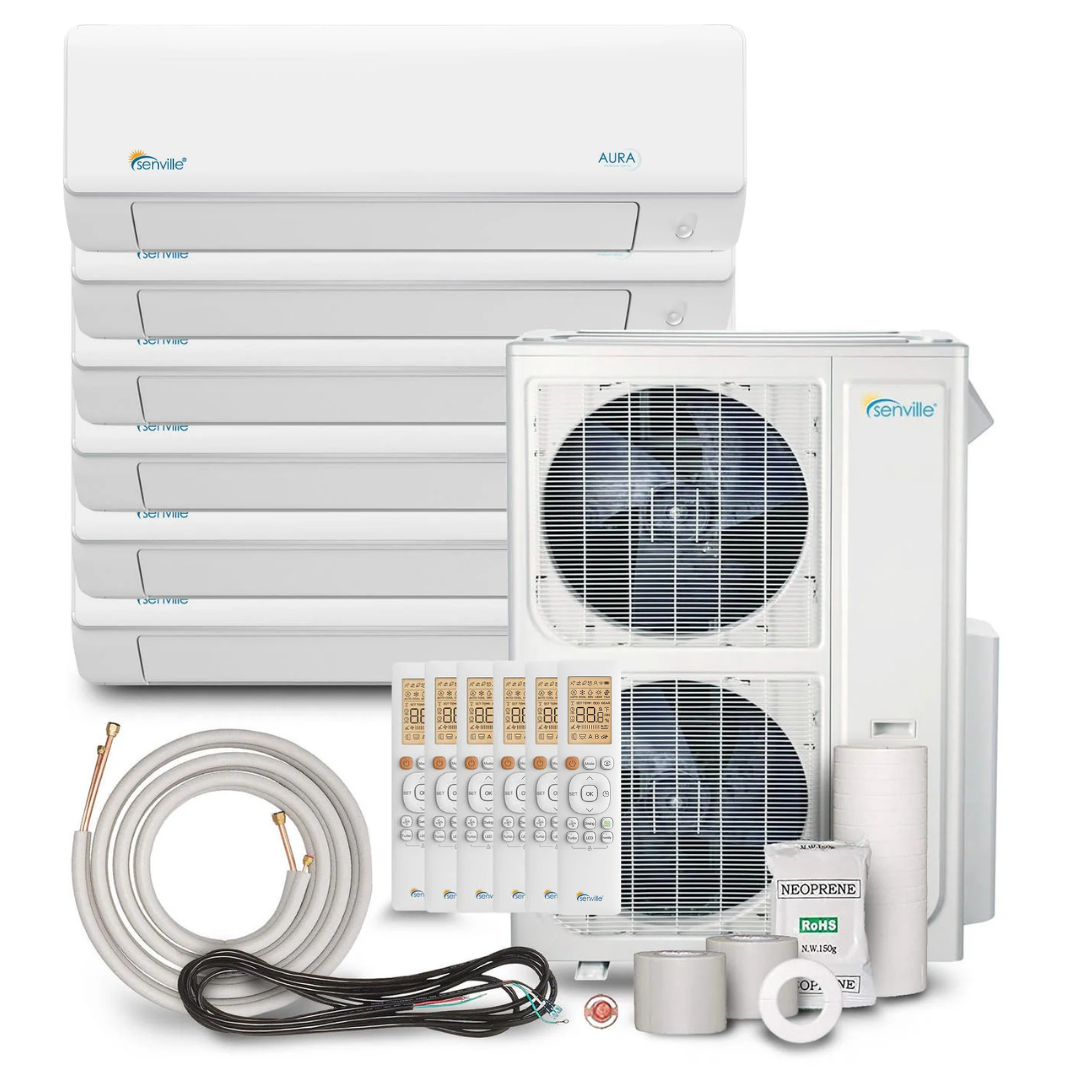

What's Included:
- 6 Indoor Units (9K+9K+9K+9K+9K+9K)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-48HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 6 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 47000 |
| Cooling Range (BTU) | 12000~57000 |
| Cooling Input Range (W) | 800~5400 |
| Cooling Current Range (A) | 7~24 |
| Heating Capacity (BTU) | 49000 |
| Heating Range (BTU) | 13000~57000 |
| Heating Input Range (W) | 800~5200 |
| Heating Current Range (A) | 7~23 |
| HSPF2-4 | 11 |
| HSPF2-5 | 9 |
| COP W/W | 3.7 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Outdoor Air Flow (Max) CFM | 4502.8 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 37.48 x 16.34 x 52.48 |
| Outdoor Weight | 246.47 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 151.68 |
| Refrigerant Pre-charge | 125 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 48000 BTU |
| Tonnage | 4 Ton |
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2 | 11 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
