Senville

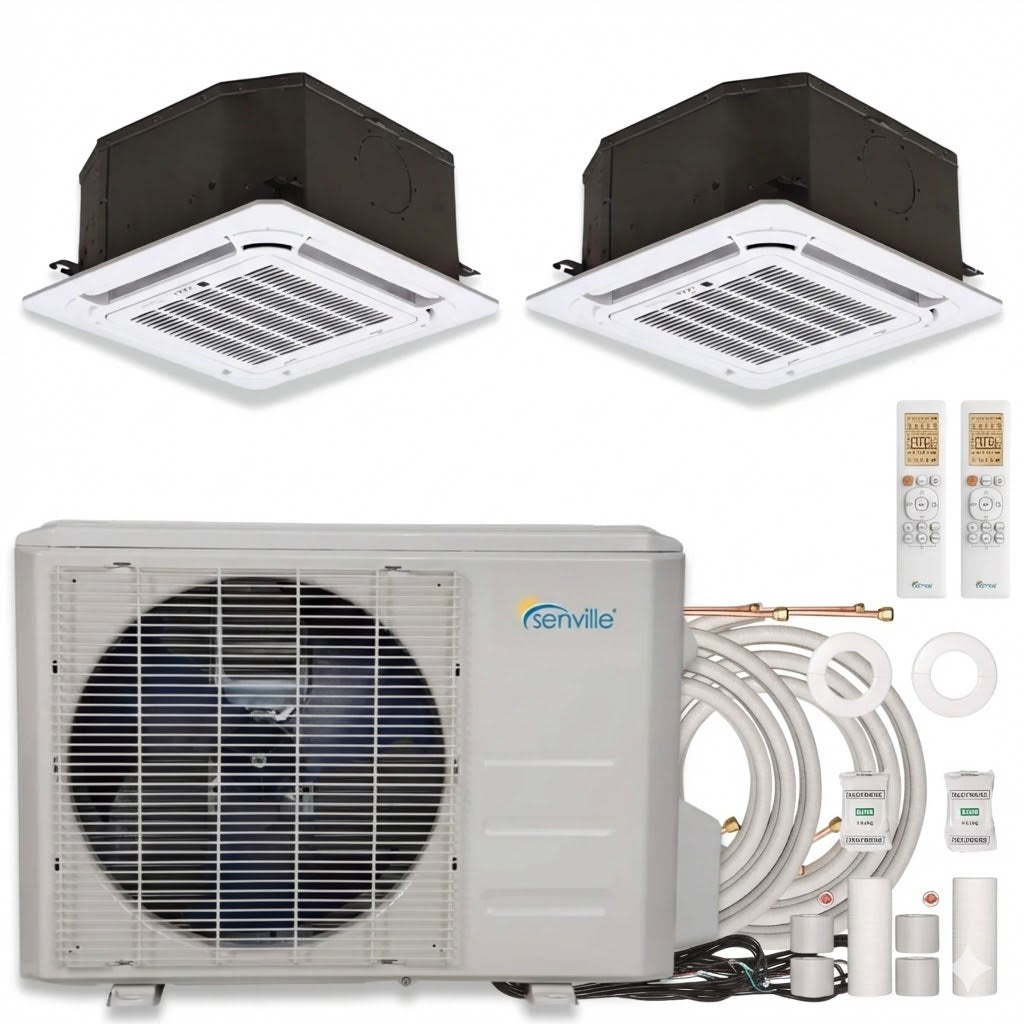

Senville AURA 36,000 (18K + 18K) BTU 23 SEER2 Ceiling Cassette 2 Zone Ductless Mini Split - Energy Star - 230V
3 Ton | SEER2 23 | R-454B | 208-230V
- 36000 BTU cooling capacity
- Up to 23 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville AURA 36,000 BTU 23 SEER2 Ceiling Cassette 2 Zone Ductless Mini Split - Energy Star - 230V (18K + 18K)
This 36,000 BTU 23 SEER2 Dual Zone Ceiling Cassette Air Conditioner by Senville is one of the most advanced and high-end split units on the market. Providing you with a variety of features including, SEER2 23, two 18,000 BTU Air Handlers, Air Conditioner & Heat Pump, Turbo Mode, Dehumidification, Timer Function, Follow Me Function and much more. Ideal for spaces 1,350 to 1,800 sq. ft.
System is pre-charged with R454B refrigerant for up to 100 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 23 SEER2
- With Heat Pump (Up to -30C / -22F)
- Energy Star Certified
- Whisper Technology (Ultra Quiet)
- Refrigerant Leak Detection
- Inverter Technology
- Vertical Swing Function
- Built-In De-humidification Function
- Follow Me Function (Remote with Built-In Thermostat)
- Low Ambient Cooling (Up to -30C / -22F)
- Self-Cleaning Mode
- PTC Heat Belt and Pan
- Bucket Free Outdoor Design
- Self Diagnosis System
Specifications:
| Electrical Requirements | |
|---|---|
| Voltage | 208/230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Minimum Circuit (Disconnect) | 37 A |
| Maximum Fuse (Breaker) | 40 A |
| Condenser (36,000 BTU) | |
| Number of Zones | 2 |
| Dimensions | 38.58" W x 16.14" D x 38.39" H |
| Weight | 211.86 lbs |
| Cooling Capacity | 36,000 BTU |
| Outdoor Operating Temperature (Cooling) | -22°F - 122°F |
| SEER2 | 23 |
| EER2 | 13 |
| Heating Capacity | 36,000 BTU |
| Outdoor Operating Temperature (Heating) | -22°F - 86°F |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Outdoor Noise Level | 65 dB |
| Outdoor Air Flow (Max) | 3037.2 CFM |
| Air Handler (18,000 BTU) | |
| Dimensions | 22.44" W x 22.44" D x 9.65" H |
| Coverage Area | 550 to 1,000 sq ft. |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Refrigerant & Piping | |
| Refrigerant Type | R454B |
| Refrigerant Volume | 134.04 oz |
| Certifications & Warranty | |
| Certifications | Energy Star Certified, UL Certified |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 23 |
| EER2 | 13 |
| HSPF2 | 10.7 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
