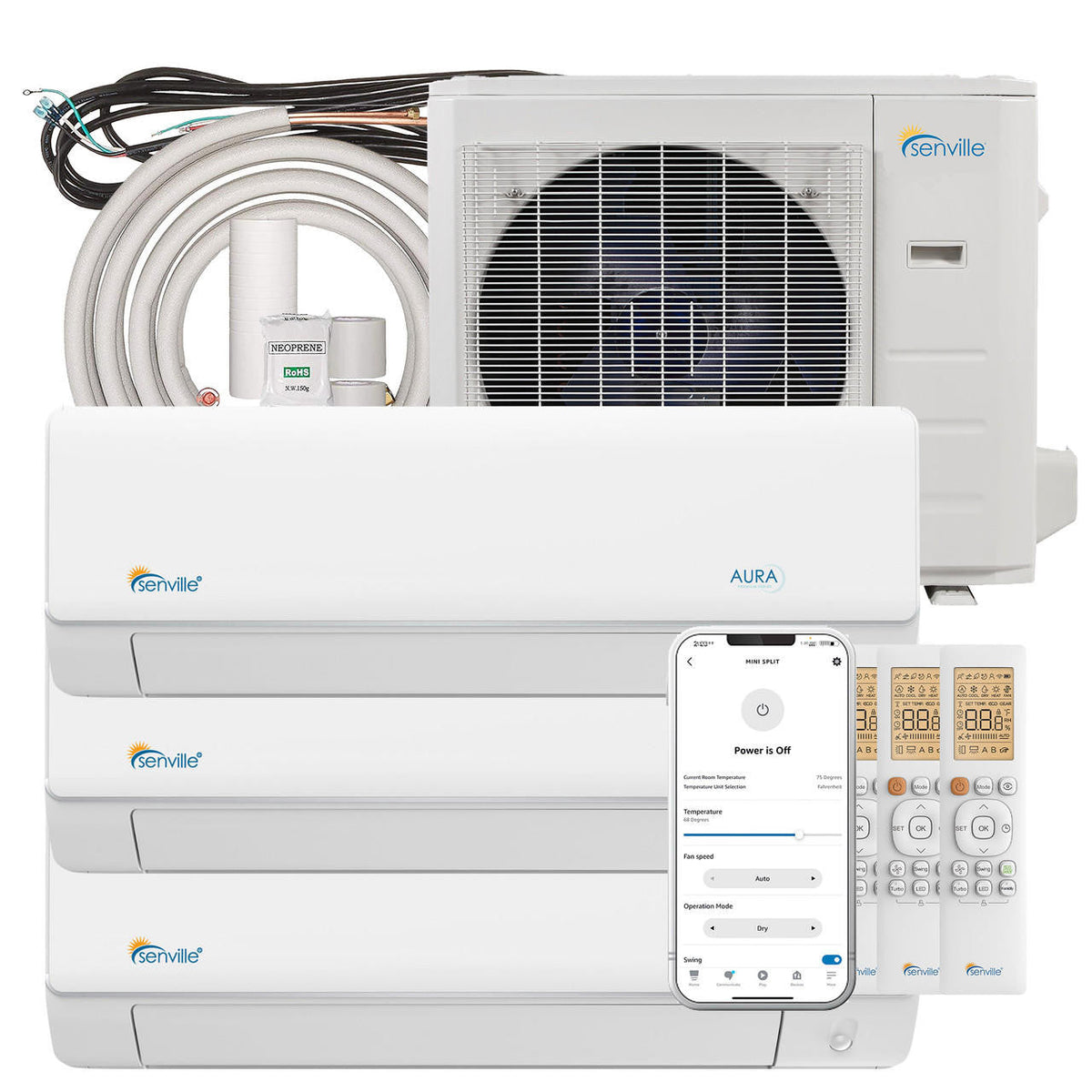

Senville AURA 27,000 BTU (9K + 9K + 9K) 3 Zone Mini Split Air Conditioner - 230V
2.25 Ton | R-454B | 208-230V
- 27000 BTU cooling capacity
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville AURA 27,000 BTU (9K+9K+9K) 3 Zone Mini Split Air Conditioner - 230V
Senville SENA-30HF/T is a high-efficiency 27000 BTU tri-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It features enhanced multi-zone climate control and ultra-quiet operation, perfect for homes or businesses seeking year-round comfort and energy savings.
System is pre-charged with R454B refrigerant for up to 75 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 23 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Whisper-Quiet Operation
- Smart Control with Alexa
What's Included:
- 3 Indoor Units (9K+9K+9K)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- 16 ft. Installation Kits (x3)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-30HF/T |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 3 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12.5 |
| Cooling Capacity (BTU) | 27000 |
| Cooling Range (BTU) | 7200~37000 |
| Cooling Input Range (W) | 500~3620 |
| Cooling Current Range (A) | 4~16 |
| Heating Capacity (BTU) | 27000 |
| Heating Range (BTU) | 8400~36000 |
| Heating Input Range (W) | 500~3400 |
| Heating Current Range (A) | 4~15 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP W/W | 3.8 |
| Minimum Circuit Ampacity (A) | 30 |
| Max. Fuse (A) | 35 |
| Outdoor Air Flow (Max) CFM | 2148.4 |
| Outdoor Noise Level dB | 61 |
| Outdoor Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| 9K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 33.40 x 9.18 x 11.76 in. |
| Outdoor Weight | 168.43 lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 120.61 oz |
| Refrigerant Pre-charge | 75 ft |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 27000 BTU |
| Tonnage | 2.25 Ton |
| EER2 | 12.5 |
| HSPF2 | 10.5 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
