Senville AURA 27,000 BTU (12K + 12K) 23 SEER2 Dual Zone Mini Split Air Conditioner - 230V

Model: SENA-30HF-D1212 SKU: SENA-30HF-D1212

2.25 Ton | SEER2 23 | R-454B | 208-230V

27000 BTU cooling capacity
Up to 23 SEER2 rated efficiency
Uses R-454B refrigerant
Runs on 208-230V power

$2,499.99 $3,299.00 Save 24% Free Shipping

In Stock

Line Set for 12K Air Handler #1

Line Set for 12K Air Handler #2

Often needed for this install

Browse all accessories →

MRCOOL CoolGuard Weldbracket for Side Discharge CondenserCooling Accessories $87.76

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

MRCOOL CoolGuard Corrugated Drain Hose for Ductless Mini-Split Air HandlerCooling Accessories $61.22

MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K IndoorCooling Accessories $256.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 27000 BTU

Tonnage 2.25 Ton

SEER2 23

Voltage 208-230V · Single Phase

Refrigerant R-454B

Overview

Product Overview

Senville AURA 27,000 BTU (12K+12K) Dual Zone Mini Split Air Conditioner - 230V

Senville SENA-30HF/D is a high-efficiency 27000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. It is recommended for 1300–1500 sq. ft.

System is pre-charged with R454B refrigerant for up to 75 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.

Features:

23 SEER2 ENERGY STAR
Heating down to -30°C (-22°F)
Ultra-Quiet Operation
WiFi Enabled Smart Control

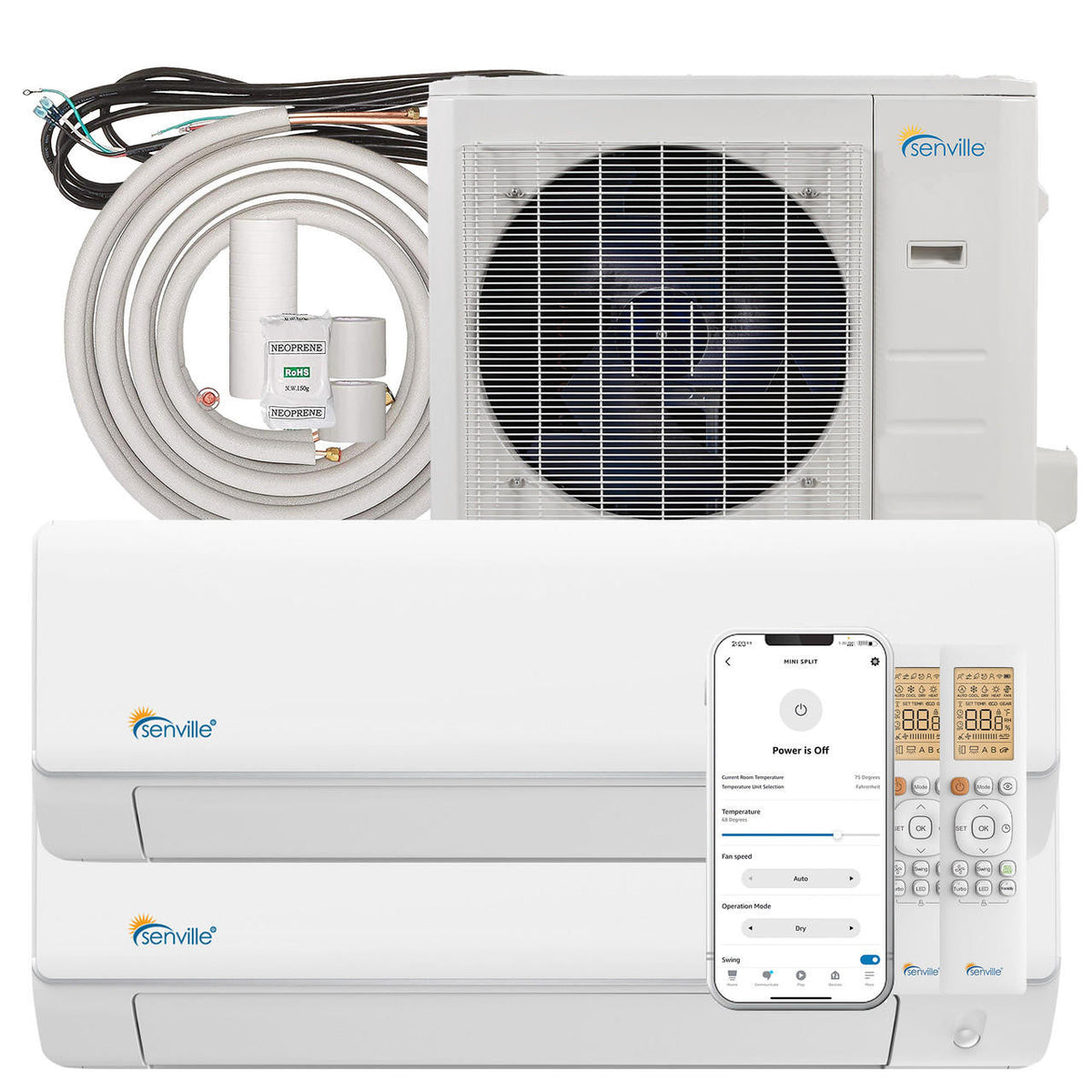

What's Included:

2 Indoor Units (12,000 BTU each)
Outdoor Unit
Wireless Remote Controls
Alexa USB Kit
16 ft. Installation Kits (x2)
Indoor-Outdoor Wiring Harness
Installation Manual
User’s Manual
10-Year Manufacturer Warranty

Specifications:

Model Number	SENA-28HF-MOA
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2–3
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	23
EER2	12.5
Cooling Capacity (BTU)	27000
Cooling Range (BTU)	7200~37000
Cooling Input Range (W)	500~3620
Cooling Current Range (A)	4~16
Heating Capacity (BTU)	27000
Heating Range (BTU)	8400~36000
Heating Input Range (W)	500~3400
Heating Current Range (A)	4~15
HSPF2-4	10.5
HSPF2-5	8.5
COP W/W	3.8
Minimum Circuit Ampacity (A)	30
Max. Fuse (A)	35
Outdoor Air Flow (Max) CFM	2148.4
Outdoor Noise Level dB	61
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
12K BTU Wall-Mounted Air Handler Dimensions (W x D x H)	33.40 x 9.18 x 11.76 in.
Outdoor Weight	168.43 Lbs
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 120.61 oz
Refrigerant Pre-charge	75 Ft.
Warranty	10 Years Compressor / 5 Years Parts

Technical Specifications

Performance

System Type	Mini-Split
Capacity	27000 BTU
Tonnage	2.25 Ton
SEER2	23
EER2	12.5
HSPF2	10.5

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-454B

Shipping & Delivery

Orders typically ship within 1-3 business days. Freight items are delivered by appointment to a curbside address; someone must be present to receive and inspect the shipment. Inspect for damage before signing. Returns are accepted within 30 days on unused, uninstalled equipment in original packaging -- return shipping and a restocking fee may apply. See our Shipping Policy and Return & Refund Policy for full terms.

Manufacturer Warranty

Covered by Senville's limited warranty. Warranty coverage generally requires installation by a licensed HVAC contractor and, on many brands, product registration after installation. Refer to Senville's warranty documentation for the full terms that apply to this model.

Professional Installation Recommended

Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.

Need an installer? Get options What the job involves →

Before You Order

Make sure it is the right size, and that you have the rest of it

Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.

System Finder Draw your space in 3D and get a capacity range, with equipment that fits it. Takes about a minute. Size it in 3D → Complete System Builder Start from the outdoor unit. Only the coil, air handler, heat kit, line set and thermostat matched to it are ever offered. Build a system →
