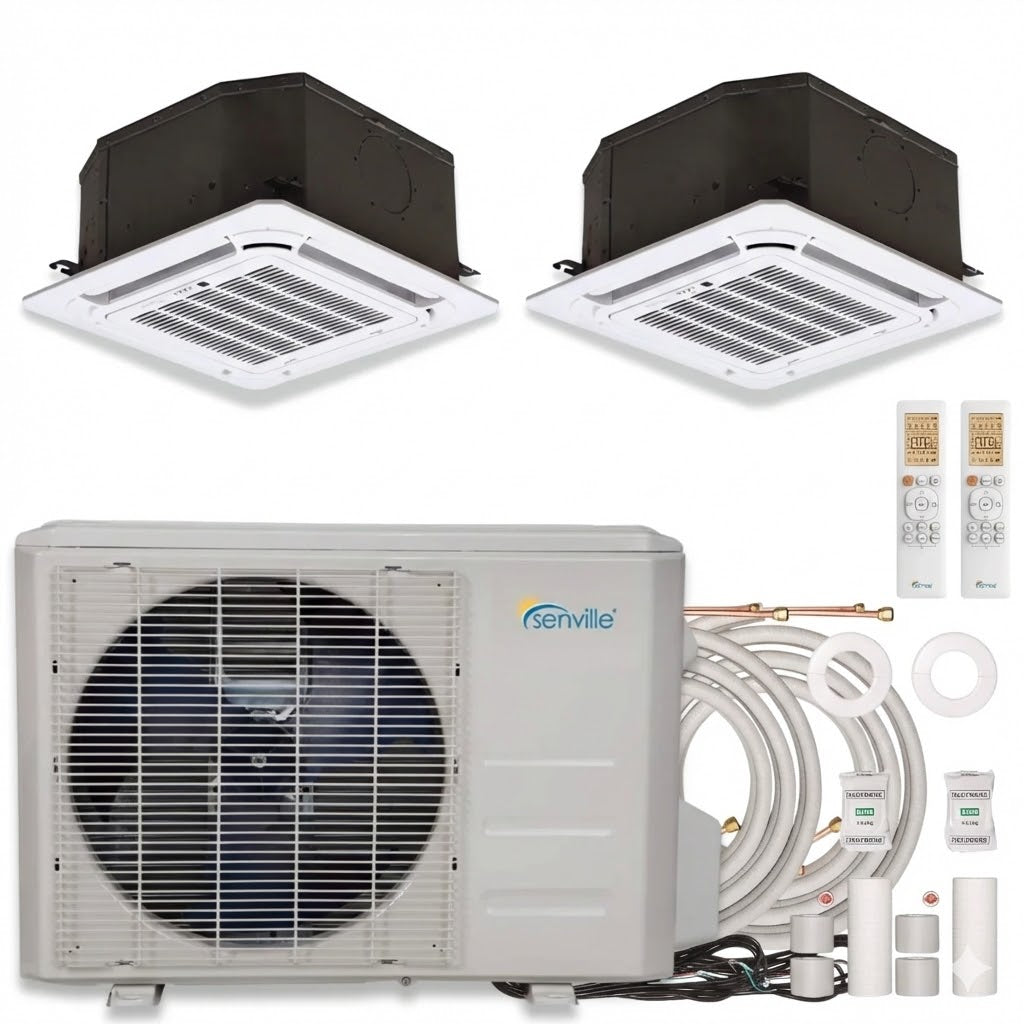

Senville AURA 27,000 (9K + 18K) BTU 23 SEER2 Ceiling Cassette 2 Zone Ductless Mini Split - Energy Star - 230V
2.25 Ton | SEER2 23 | R-454B | 208-230V
- 27000 BTU cooling capacity
- Up to 23 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville AURA 27,000 BTU 23 SEER2 Ceiling Cassette 2 Zone Ductless Mini Split - Energy Star - 230V
This 27,000 BTU 23 Seer2 Dual Zone Ceiling Cassette Air Conditioner by Senville is one of the most advanced and high-end split units on the market. Providing you with a variety of features including, SEER2 23, one 9,000 BTU and one 18,000 BTU Air Handler, Air Conditioner & Heat Pump, Turbo Mode, Dehumidification, Timer Function, Follow Me Function and much more. Ideal for spaces 1,200 to 1,400 sq. ft.
System is pre-charged with R454B refrigerant for up to 75 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 23 SEER2
- With Heat Pump (Up to -30C / -22F)
- Energy Star Certified
- Whisper Technology (Ultra Quiet)
- Refrigerant Leak Detection
- Inverter Technology
- Vertical Swing Function
- Built-In De-humidification Function
- Follow Me Function (Remote with Built-In Thermostat)
- Low Ambient Cooling (Up to -30C / -22F)
- Self-Cleaning Mode
- PTC Heat Belt and Pan
- Bucket Free Outdoor Design
- Self Diagnosis System
Specifications:
| Model Number | SENA-30HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2-3 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12.5 |
| Cooling Capacity (BTU) | 27000 |
| Cooling Range (BTU) | 7200~37000 |
| Cooling Input Range (W) | 500~3620 |
| Cooling Current Range (A) | 4~16 |
| Heating Capacity (BTU) | 27000 |
| Heating Range (BTU) | 8400~36000 |
| Heating Input Range (W) | 500~3400 |
| Heating Current Range (A) | 4~15 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP W/W | 3.8 |
| Minimum Circuit Ampacity (A) | 30 |
| Max. Fuse (A) | 35 |
| Outdoor Air Flow (Max) CFM | 2148.4 |
| Outdoor Noise Level dB | 61 |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 168.43 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 120.61 oz |
| Refrigerant Pre-charge | 75 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 27000 BTU |
| Tonnage | 2.25 Ton |
| SEER2 | 23 |
| EER2 | 12.5 |
| HSPF2 | 10.5 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
