Senville AURA 24,000 BTU 19 SEER2 Concealed Duct Mini Split Heat Pump - 230V
2 Ton | SEER2 19 | R-454B | 208-230V
- 24000 BTU cooling capacity
- Up to 19 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview

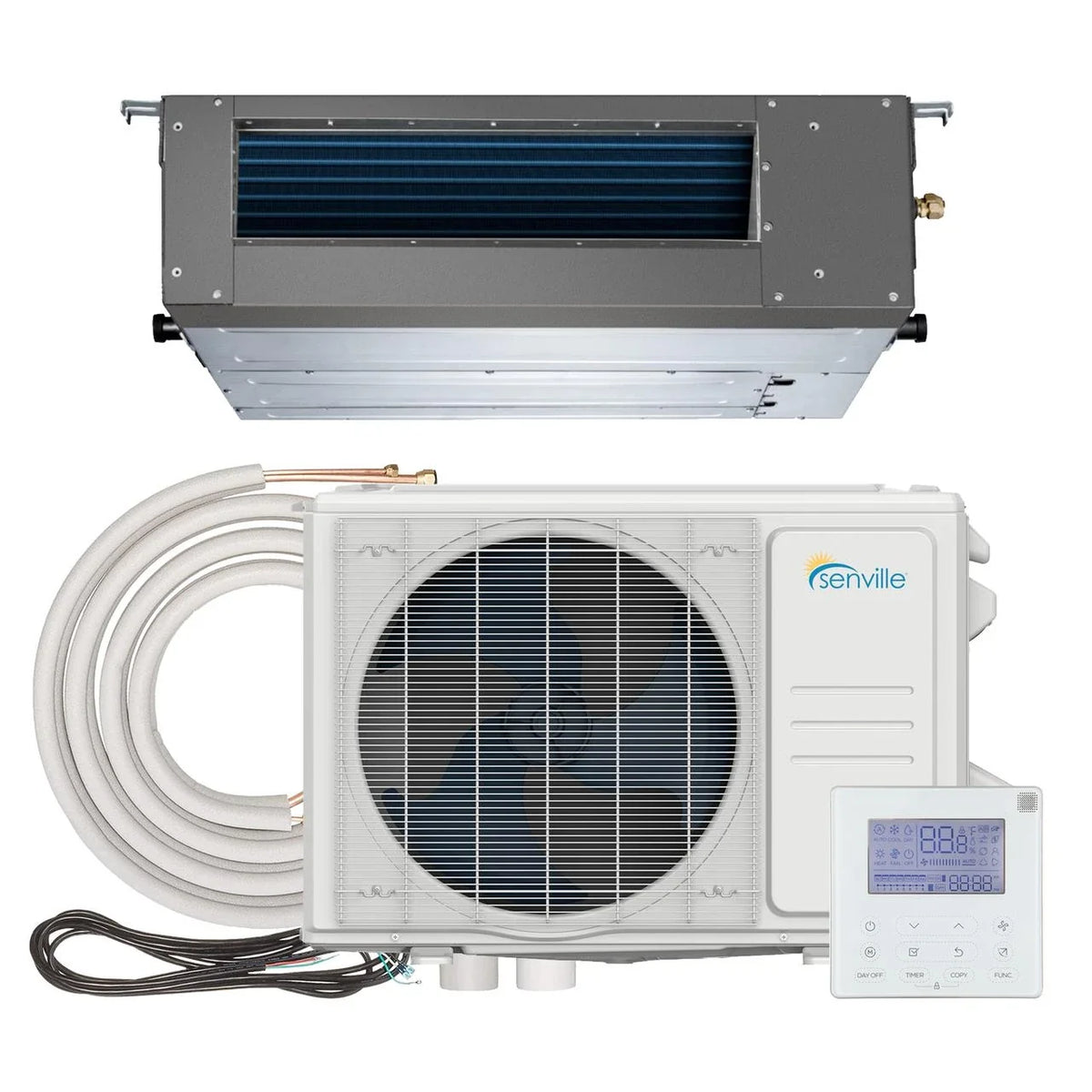

Senville AURA 24,000 BTU Concealed Duct Heat Pump
The Senville AURA SENA-24HF-ID concealed duct system delivers quiet, evenly distributed heating and cooling while keeping the indoor equipment out of sight. Its 24,000 BTU capacity is well suited to spaces of approximately 1,000-1,250 sq. ft.
System is pre-charged with R454B refrigerant for up to 25 ft. If the selected line set exceeds the pre-charged amount, additional refrigerant must be added by a licensed technician during installation.
Key Features
- 19 SEER2 ENERGY STAR efficiency
- 24,000 BTU cooling and 26,000 BTU heating capacity
- Heating operation down to -22°F
- Concealed ducted indoor unit
- Wired controller
- Self-diagnostics and refrigerant leak detection
- R454B refrigerant
- 10-year compressor warranty
What's Included
- Indoor unit
- Outdoor unit
- Wireless remote control
- Installation kit in the selected length (no kit when "None" is selected)
- Indoor-to-outdoor wiring harness
- Installation and owner documentation
Manuals & Documents
Specifications
| Model Number | SENA-24HF-ID |
| Power Supply | 208/230V, 1Ph, 60Hz |
| SEER2 / EER2 | 19.0 / 12.0 |
| Cooling / Heating Capacity | 24,000 / 26,000 BTU |
| HSPF2-4 / HSPF2-5 | 11.7 / 9.3 |
| Minimum Circuit Ampacity | 25 A |
| Maximum Fuse | 25 A |
| Indoor Dimensions (W x D x H) | 39.37 x 29.53 x 9.65 in. |
| Outdoor Dimensions (W x D x H) | 37.24 x 16.14 x 31.89 in. |
| Minimum Heating Temperature | -22°F |
| Refrigerant | R454B |
| Thermostat Type | Wired control |
| Warranty | 10 years compressor / 5 years parts |
Professional installation is required. Confirm sizing and electrical requirements with a licensed HVAC professional before ordering.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 19 |
| EER2 | 19.0 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
