Senville AURA 24,000 BTU Ceiling Cassette Single Zone Ductless Mini Split - 230V - 20.7 SEER2 - Energy Star
2 Ton | SEER2 20.7 | R-454B | 208-230V
- 24000 BTU cooling capacity
- Up to 20.7 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville AURA 24,000 BTU Ceiling Cassette Single Zone Ductless Mini Split - 230V - 20.7 SEER2 - Energy Star
Senville SENA-24HF/IC is a high-efficiency 24000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
System is pre-charged with R454B refrigerant for up to 25 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 21.4 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Alexa Enabled Smart Control
- Ultra-Quiet Operation

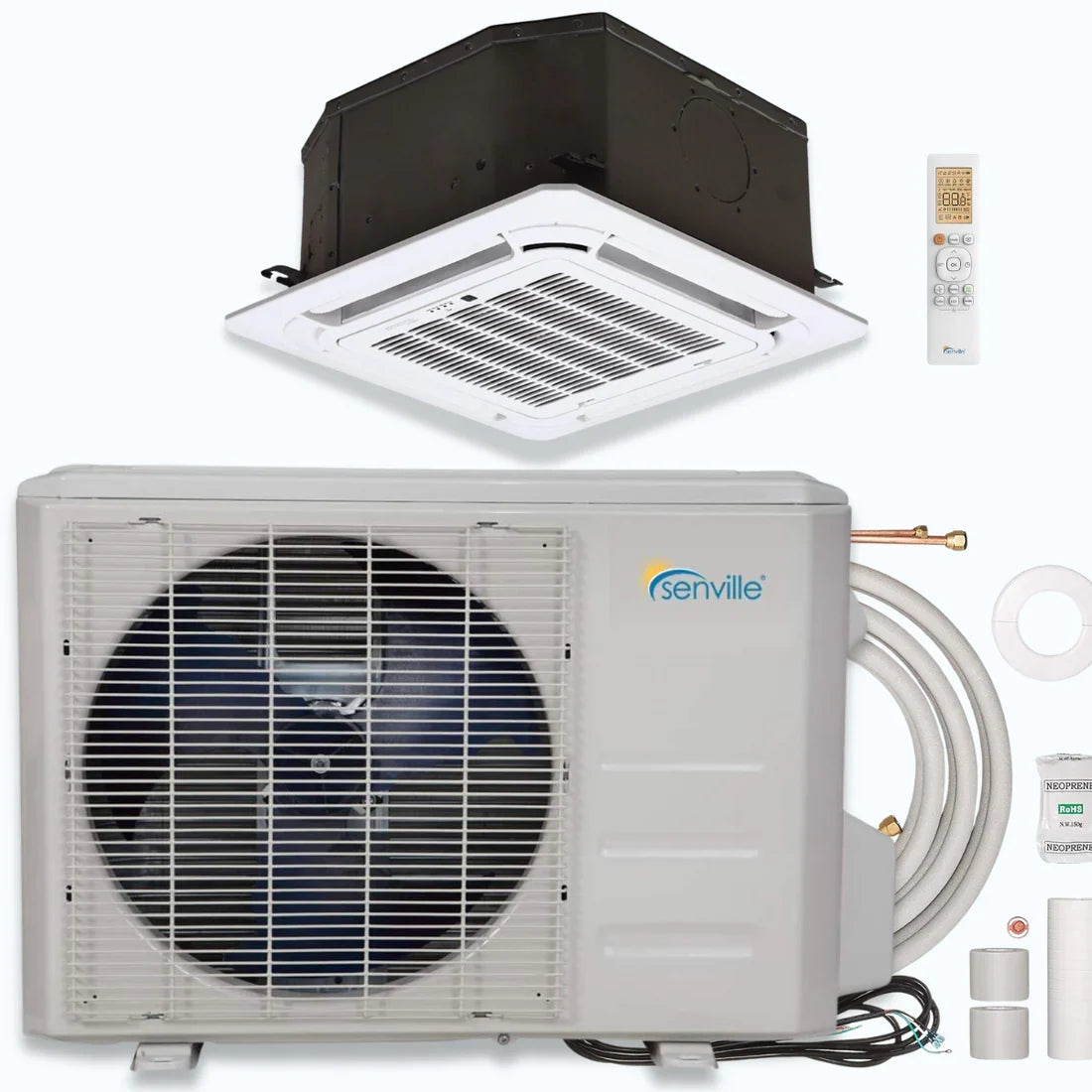

What's Included:
- Indoor Unit (1 x 24K Ceiling Cassette)
- Outdoor Unit
- Wireless Remote Control
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-24HF-IC |
| Style | Ceiling Cassette Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20.7 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 23400 |
| Cooling Range (BTU) | 128000~26200 |
| Cooling Input Range (W) | 960~2300 |
| Cooling Current Range (A) | 4.3~10.1 |
| Heating Capacity (BTU) | 25000 |
| Heating Range (BTU) | 11500~30700 |
| Heating Input Range (W) | 695~2490 |
| Heating Current Range (A) | 3.8~10.9 |
| HSPF2-4 | 11.6 |
| HSPF2-5 | 9.2 |
| COP W/W | 3.54 |
| Minimum Circuit Ampacity (A) | 25 |
| Max. Fuse (A) | 25 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 765.2 / 706.3 / 635.7 / 547.4 |
| Indoor Noise Level (Turbo/H/M/L) dB | 48.5 / 45.0 / 42.5 / 33.5 |
| Indoor Dimensions (WxDxH) (in.) | 32.68 x 32.68 x 8.07 |
| Indoor Weight | 47.18 Lbs. |
| Moisture Removal (L/H) | 2.36 |
| Outdoor Air Flow (Max) CFM | 2236.7 |
| Outdoor Noise Level dB | 61.5 |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 130.29 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 63.49 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 20.7 |
| EER2 | 12 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
