Senville

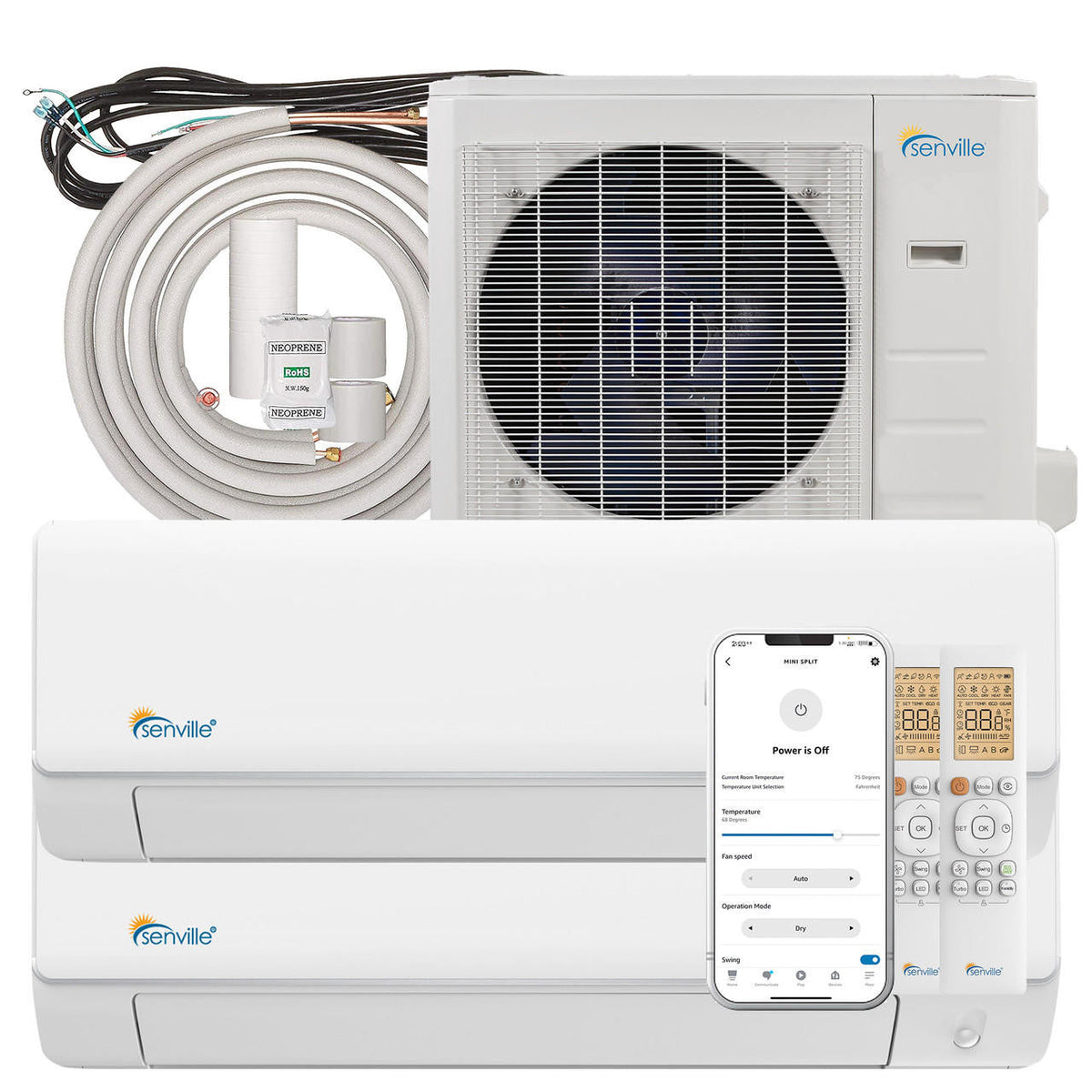

Senville AURA 18,000 BTU (9K + 12K) 25 SEER2 Dual Zone Mini Split Air Conditioner - 230V
1.5 Ton | SEER2 25 | R-454B | 208-230V
- 18000 BTU cooling capacity
- Up to 25 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Senville AURA 18,000 BTU 9K + 12K Dual Zone Mini Split Air Conditioner - Heat Pump - 230V
Senville SENA-18HF/D is a high-efficiency 18,000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. It is recommended for 750–1250 sq. ft.
System is pre-charged with R454B refrigerant for up to 50 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 25 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Ultra-Quiet Operation
- WiFi Enabled Smart Control
What's Included:
- 2 Indoor Units (9,000 BTU each)
- Outdoor Unit
- Wireless Remote Controls
- WiFi USB Kit
- 16 ft. Installation Kits (x2)
- Indoor-Outdoor Wiring Harness
- Installation Manual
Specifications:
| Model Number | SENA-18HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 25 |
| EER2 | 15 |
| Cooling Capacity (BTU) | 19000 |
| Cooling Range (BTU) | 5400~28000 |
| Cooling Input Range (W) | 400~2250 |
| Cooling Current Range (A) | 3.5~10.0 |
| Heating Capacity (BTU) | 20000 |
| Heating Range (BTU) | 5700~27000 |
| Heating Input Range (W) | 350~2300 |
| Heating Current Range (A) | 1.5~5.9 |
| HSPF2-4 | 10.4 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 17.5 |
| Max. Fuse (A) | 20 |
| Outdoor Air Flow (Max) CFM | 2130.7 |
| Outdoor Noise Level dB | 61.5 |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| 9K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 33.40 x 9.18 x 11.76 in. |
| 12K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 33.40 x 9.18 x 11.76 in. |
| Outdoor Weight | 137.35 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 78.31 oz |
| Refrigerant Pre-charge | 50 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
Technical specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 18000 BTU |
| Tonnage | 1.5 Ton |
| SEER2 | 25 |
| EER2 | 15 |
| HSPF2 | 10.4 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
