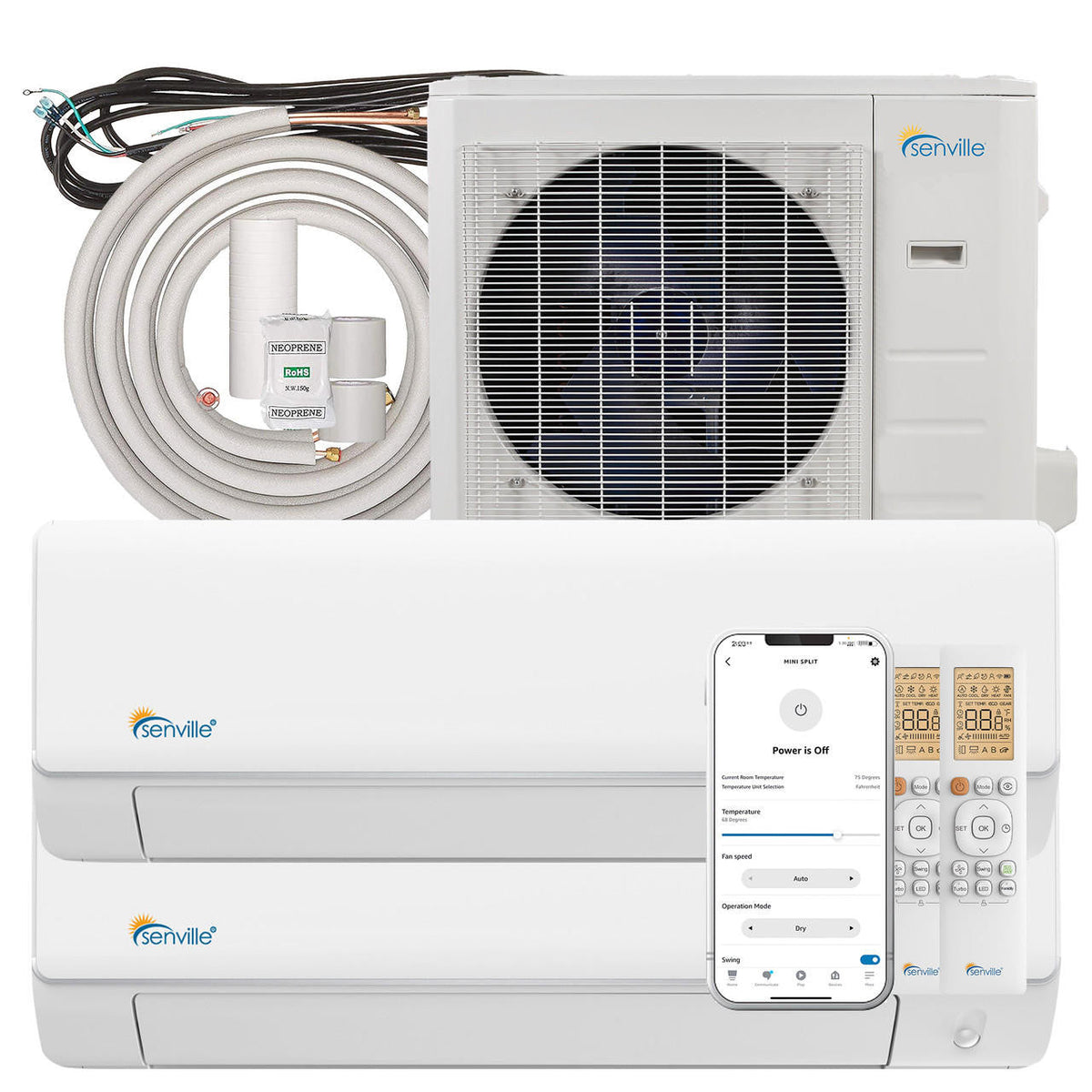

Senville AURA 18,000 BTU (6K + 12K) Dual Zone Mini Split Air Conditioner - 230V

Model: SENA-18HF-D612 SKU: SENA-18HF-D612

1.5 Ton | R-454B | 208-230V

18000 BTU cooling capacity
Uses R-454B refrigerant
Runs on 208-230V power

$2,099.99 $2,591.00 Save 19% Free Shipping

In Stock

Line Set for 6K Air Handler

Line Set for 12K Air Handler

Often needed for this install

Browse all accessories →

MRCOOL CoolGuard Weldbracket for Side Discharge CondenserCooling Accessories $87.76

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

MRCOOL CoolGuard Corrugated Drain Hose for Ductless Mini-Split Air HandlerCooling Accessories $61.22

MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K IndoorCooling Accessories $256.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 18000 BTU

Tonnage 1.5 Ton

Voltage 208-230V · Single Phase

Refrigerant R-454B

Overview

Product Overview

Senville AURA 18,000 BTU 6K + 12K Dual Zone Mini Split Air Conditioner - Heat Pump - 230V

Senville SENA-18HF/D is a high-efficiency 18,000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. It is recommended for 750–1250 sq. ft.

System is pre-charged with R454B refrigerant for up to 50 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.

Features:

25 SEER2 ENERGY STAR
Heating down to -30°C (-22°F)
Ultra-Quiet Operation
WiFi Enabled Smart Control

What's Included:

2 Indoor Units (1 x 6,000 BTU & 1 x 12,000 BTU)
Outdoor Unit
Wireless Remote Controls
WiFi USB Kit
16 ft. Installation Kits (x2)
Indoor-Outdoor Wiring Harness
Installation Manual

Specifications:

Model Number	SENA-18HF-MOA
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	25
EER2	15
Cooling Capacity (BTU)	19000
Cooling Range (BTU)	5400~28000
Cooling Input Range (W)	400~2250
Cooling Current Range (A)	3.5~10.0
Heating Capacity (BTU)	20000
Heating Range (BTU)	5700~27000
Heating Input Range (W)	350~2300
Heating Current Range (A)	1.5~5.9
HSPF2-4	10.4
HSPF2-5	8.5
COP W/W	4
Minimum Circuit Ampacity (A)	17.5
Max. Fuse (A)	20
Outdoor Air Flow (Max) CFM	2130.7
Outdoor Noise Level dB	61.5
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
6K BTU Wall-Mounted Air Handler Dimensions (W x D x H)	33.40 x 9.18 x 11.76 in.
12K BTU Wall-Mounted Air Handler Dimensions (W x D x H)	33.40 x 9.18 x 11.76 in.
Outdoor Weight	137.35 Lbs
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 78.31 oz
Refrigerant Pre-charge	50 Ft.
Warranty	10 Years Compressor / 5 Years Parts

Technical Specifications

Performance

System Type	Mini-Split
Capacity	18000 BTU
Tonnage	1.5 Ton
EER2	15
HSPF2	10.4

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-454B
