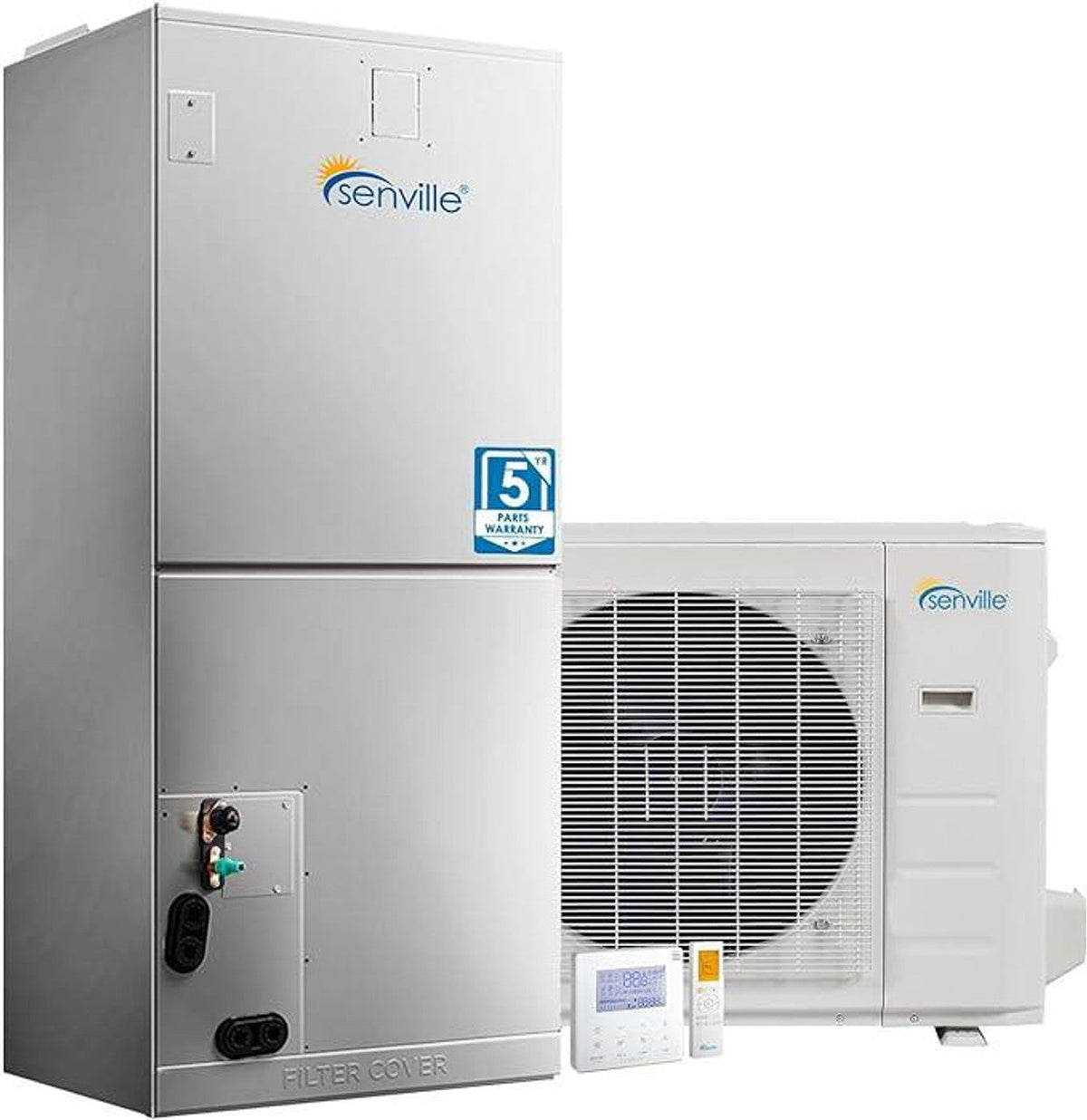

Senville 36,000 BTU 17.4 SEER2 Central Air Conditioner Heat Pump System - 230V
3 Ton | SEER2 17.4 | R-454B | 208-230V
- 36000 BTU cooling capacity
- Up to 17.4 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Senville 36,000 BTU 17.4 SEER2 Central Air Conditioner Heat Pump System - 230V
Upgrade your home’s HVAC system with the Senville SENDC-36HF-16, a powerful 36,000 BTU 17.4 SEER2 central air conditioner and heat pump system designed for year-round performance. Featuring advanced inverter technology, this ducted unit delivers exceptional energy efficiency, whisper-quiet operation, and reliable heating and cooling, even in extreme temperatures.
Enhance your current central air conditioning system by converting it into an ultra-efficient mini-split setup with our advanced variable-speed compressor powered by Inverter Technology. Say farewell to outdated, energy-wasting central AC units.
Features:
- Inverter Technology – Optimizes energy use and maintains stable indoor temperatures.
- All-Season Comfort – Integrated heat pump provides efficient heating and cooling.
- Cold Climate Performance – Engineered to perform reliably in low ambient conditions.
- Ultra-Quiet Operation – Ideal for bedrooms, offices, and living spaces.
- Eco-Friendly Refrigerant – Uses low-GWP R-454B refrigerant.
- Coverage – Designed for medium-size spaces with balanced airflow.
- Long-Term Warranty – 10-Year Compressor Warranty and 5-Year Parts Warranty included.
Specifications:
| Model Number | SENDC-36HF |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 17.4 |
| EER2 | 11.7 |
| Cooling (Range) | 13000~47400 |
| Input (W) | 3673 (462-5700) |
| Rated current A | 15.97 |
| Heating (Range) | 11000~57200 |
| Input (W) | 3448 (593-5700) |
| Rated Current (A) | 15 |
| HSPF2-4 | 10.3 |
| HSPF2-5 | 7.8 |
| COP W/W | 3.36 |
| Minimum Circuit Ampacity (A) | 41 |
| Max. Fuse (A) | 50 |
| Indoor Dimensions (WxDxH) (in.) | 21.02x21.02x49.02 |
| Indoor Unit Weight (lbs.) | 129.19 |
| Indoor Air Flow (H/M/L) CFM | 1188/1082/970 |
| Indoor Noise Level (H/M/L) dB | 45/43/41 |
| Outdoor Dimensions (WxDxH) (in.) | 38.58x16.34x38.39 |
| Outdoor Weight (lbs.) | 227 |
| Outdoor Noise Level dB | 64 |
| Outdoor Air flow (Max) CFM | 4500 |
| Refrigerant Type | R454B / 165.79 Oz |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14AWG*2 Stranded, Shielded |
| Thermostat Type | Wall Remote |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Certifications | Energy Star, UL, AHRI, NEEP |
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 17.4 |
| HSPF2 | 10.3 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
