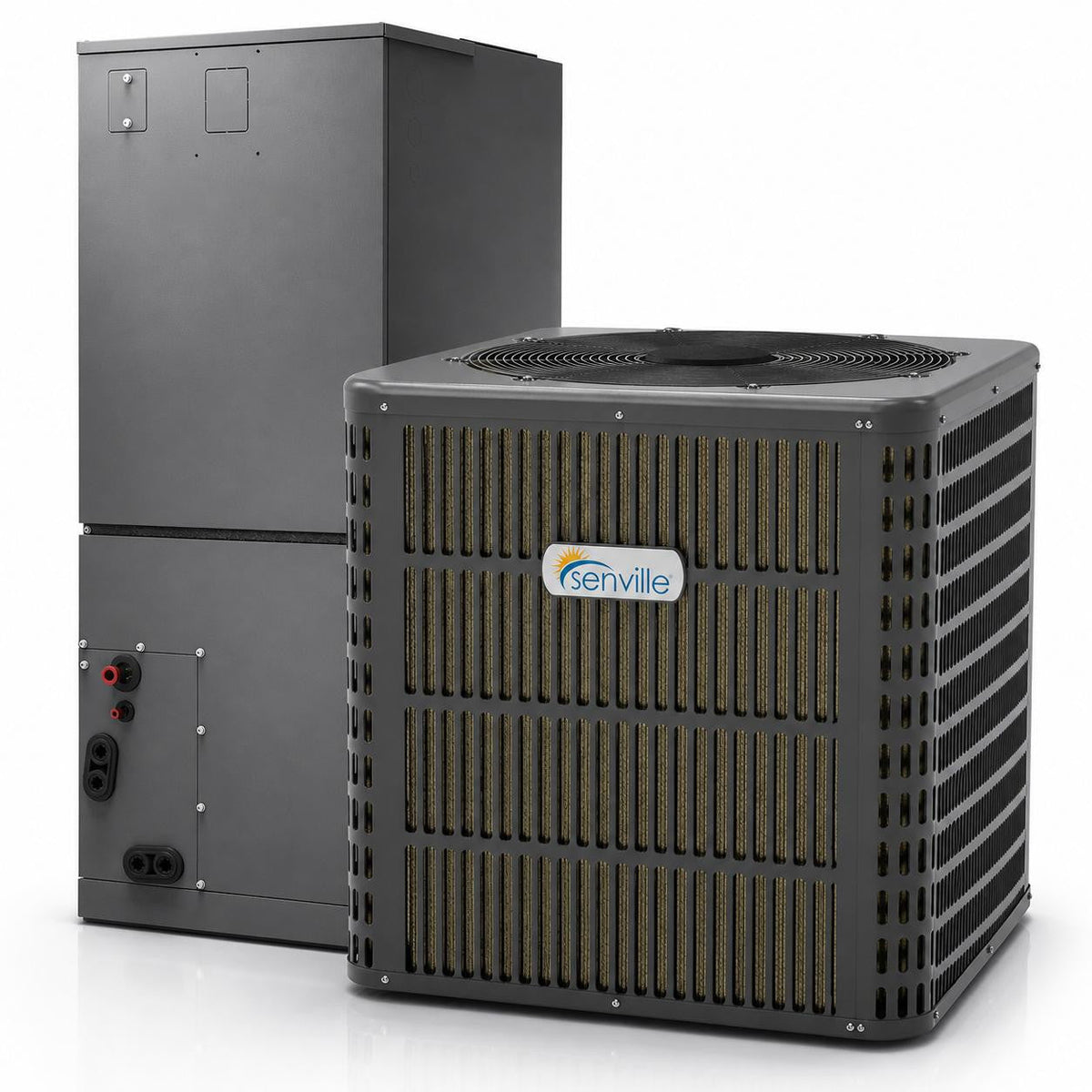

Senville 3 Ton 18.6 SEER2 Central AC Unit Heat Pump - Top Discharge - R-32 - 230V

Model: SENTC-36TD-16 SKU: SENTC-36TD-16

3 Ton | SEER2 18.6 | R-32 | 208-230V

36000 BTU cooling capacity
Up to 18.6 SEER2 rated efficiency
Uses R-32 refrigerant
Runs on 208-230V power

$3,499.99 $5,224.00 Save 33% Free Shipping

In Stock

Line Set Length

Often needed for this install

Browse all accessories →

MRCOOL 18" x 38" x 3" CoolGuard Equipment PadCooling Accessories $57.24

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Split System Heat Pump

Capacity 36000 BTU

Tonnage 3 Ton

SEER2 18.6

Voltage 208-230V · Single Phase

Refrigerant R-32

Overview

Product Overview

Senville 3 Ton 18.6 SEER2 Central AC Unit Heat Pump - Top Discharge - R-32-230V

Designed for both summer cooling and winter heating, this system delivers reliable performance across a wide outdoor temperature range, including heating operation down to -4°F. It also uses modern R-32 refrigerant, offering efficient performance in a next-generation HVAC platform.

Built for efficiency, durability, and consistent comfort, the Senville 3 Ton Central AC Heat Pump is a smart choice for homeowners upgrading to a modern all-season heating and cooling system. Professional installation is required.

Key Features:

3 ton / 36,000 BTU-class central heat pump system
High-efficiency performance with up to 18.6 SEER2
Provides both cooling and heating from one system
Top-discharge outdoor unit directs airflow upward
DC inverter compressor for quieter, more efficient operation
Strong cold-weather heating performance down to -4°F
Uses R-32 refrigerant
208/230V single-phase power
Ideal for medium-sized homes and ducted central HVAC applications

Specifications:

Specification	Value
Efficiency Ratings
SEER2	18.6 BTU/W
EER2	11.7 BTU/W
HSPF2 (Region 4)	9.0 BTU/W
COP (Heating)	3.20 W/W
Cooling Performance
Rated Cooling Capacity	34,000 BTU/h
Cooling Capacity Range	13,000 – 38,000 BTU/h
Cooling Input Power	2,906 W (range: 460–3,600 W)
Cooling Current Draw	13.2 A (range: 2.1–16 A)
Capacity @ 109°F Outdoor	32,000 BTU/h
Capacity @ 5°F Outdoor	34,000 BTU/h
Cooling Operating Range (Outdoor)	5°F – 131°F
Heating Performance
Rated Heating Capacity	36,000 BTU/h
Heating Capacity Range	11,000 – 39,000 BTU/h
Heating Input Power	3,300 W (range: 600–3,600 W)
Capacity @ 47°F Outdoor	36,000 BTU/h
Capacity @ 17°F Outdoor	17,500 BTU/h
Capacity @ 5°F Outdoor	27,000 BTU/h
Capacity @ –4°F Outdoor	25,000 BTU/h
Heating Operating Range (Outdoor)	–4°F – 75°F
Electrical
Power Supply	208/230V, 60 Hz, 1-Phase
Indoor MCA / MOP	5 A / 15 A
Outdoor MCA / MOP	24 A / 30 A
Compressor RLA	9.45 A
Outdoor Fan Motor RLA / Output	2.3 A / 200 W
Indoor Fan Motor RLA / Output	3.6 A / 375 W
Communication Wiring	AWG 25×3 Shielded
Refrigerant & Piping
Refrigerant Type	R-32
Factory Refrigerant Charge	2.9 kg (102.3 oz)
Additional Charge Rate	0.52 oz/ft (48 g/m)
Liquid / Gas Line Size	3/8 in / 3/4 in
Max. Pipe Length	246 ft (75 m)
Max. Height Difference	98.4 ft (30 m)
Connection Method	Flared
Throttle Type (Outdoor / Indoor)	EXV / Piston
Compressor
Compressor Type	Twin-Rotary DC Inverter
Compressor Model / Brand	KTM240D57UMT / GMCC
Airflow & Sound
Indoor Airflow — High / Low	1,110 / 520 CFM
Indoor Noise Level — High / Low	50 / 38 dB(A)
Outdoor Airflow (Max)	2,800 CFM
Outdoor Noise Level	58 dB(A)
Dimensions & Weight
Indoor Unit (W × D × H)	21-1/32" × 21-1/32" × 49-7/32"
Indoor Net / Gross Weight	137 / 151 lbs
Outdoor Unit (W × D × H)	29-9/64" × 29-9/64" × 25"
Outdoor Net / Gross Weight	143 / 151 lbs

Technical Specifications

Performance

System Type	Split System Heat Pump
Capacity	36000 BTU
Tonnage	3 Ton
SEER2	18.6
EER2	11.7

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-32

Shipping & Delivery

Orders typically ship within 1-3 business days. Freight items are delivered by appointment to a curbside address; someone must be present to receive and inspect the shipment. Inspect for damage before signing. Returns are accepted within 30 days on unused, uninstalled equipment in original packaging -- return shipping and a restocking fee may apply. See our Shipping Policy and Return & Refund Policy for full terms.

Manufacturer Warranty

Covered by Senville's limited warranty. Warranty coverage generally requires installation by a licensed HVAC contractor and, on many brands, product registration after installation. Refer to Senville's warranty documentation for the full terms that apply to this model.

Professional Installation Recommended

Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
