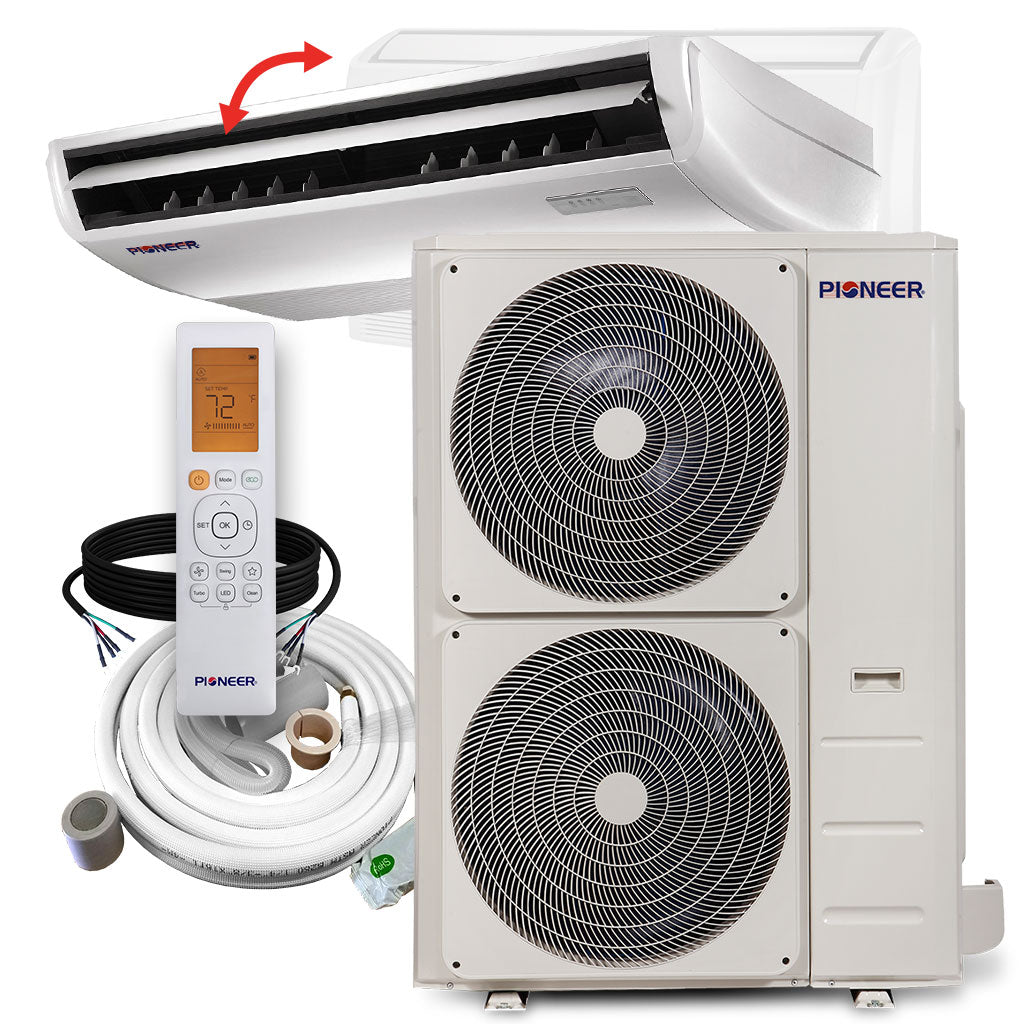

Pioneer® Quantum Ultra™ 48,000 BTU 19.8 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump

Model: UYB048GMSI20RL-10S SKU: UYB048GMSI20RL-10S

4 Ton | SEER2 19.8 | R-454B | 208-230V

48000 BTU cooling capacity
Up to 19.8 SEER2 rated efficiency
Uses R-454B refrigerant
Runs on 208-230V power

$4,828.00 $6,899.00 Save 30% Free Shipping

In Stock

Installation Kit Options

Often needed for this install

Browse all accessories →

MRCOOL CoolGuard Weldbracket for Side Discharge CondenserCooling Accessories $87.76

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

MRCOOL CoolGuard Corrugated Drain Hose for Ductless Mini-Split Air HandlerCooling Accessories $61.22

MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K IndoorCooling Accessories $256.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 48000 BTU

Tonnage 4 Ton

SEER2 19.8

Voltage 208-230V · Single Phase

Refrigerant R-454B

Overview

Product Overview

Summary

High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
Cooling capacity: 48,000 BTU/H with 19.8 SEER2 / 9.5 EER2 efficiency
Heating capacity: 50,000 BTU/H with 12.0 HSPF2 / 2.82 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 10,100~50,000 BTU/h
- Cooling SEER2: 19.9 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 15,800~59,100 BTU/h
- Heating HSPF2 (Region IV/V): 12.0 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.82 / 1.95 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,400~1,800 sq ft
- Minimum Room Size (Ceiling Suspended): 143 sq ft
- Minimum Room Size (Floor/Low Wall): 700 sq ft
- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010996
Indoor Unit
- Part Number: UB048GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,354 / 1,236 / 1,083 / 800 / 665 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 53 / 49 / 39 / 34 dB(A)
- Product Dimensions (WDH): 65" x 26"-5/8 x 9"-1/4 Inches
- Carton Dimensions (WDH): 68"-3/8 x 30" x 12"-1/4 Inches
- Net / Gross Weight: 89.0 / 105.0 lbs
Outdoor Unit
- Part Number: YN048GMSI20RUG
- Breaker Needed: 45A (double-pole)
- Sound Level: 64 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
- Net / Gross Weight: 208.8 / 237.5 lbs

Dimension Chart

Technical Specifications

Performance

System Type	Mini-Split
Capacity	48000 BTU
Tonnage	4 Ton
SEER2	19.8
EER2	9.5
HSPF2	12.0

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-454B
