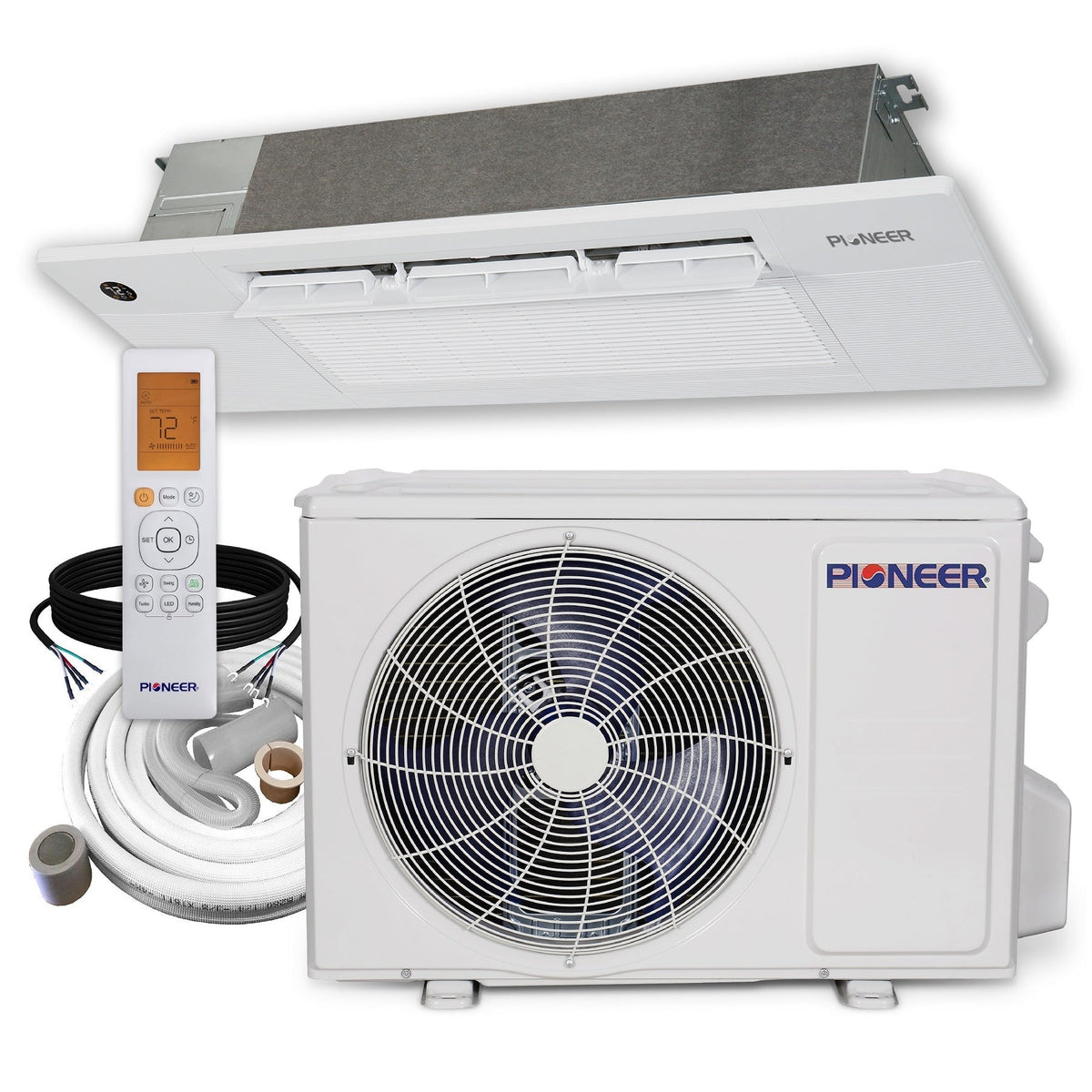

Pioneer® Quantum Ultra™ 9,000 BTU 22 SEER2 230V Single-Way Ceiling Recessed Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Model: CYK009GMSI24RL-10S SKU: CYK009GMSI24RL-10S

0.75 Ton | SEER2 22 | R-454B | 208-230V

9000 BTU cooling capacity
Up to 22 SEER2 rated efficiency
Uses R-454B refrigerant
Runs on 208-230V power

$2,218.00 $3,169.00 Save 30% Free Shipping

In Stock

Include System Installation Kit

Installation Kit Length

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 9000 BTU

Tonnage 0.75 Ton

SEER2 22

Voltage 208-230V · Single Phase

Refrigerant R-454B

Overview

Product Overview

Summary

High Efficiency Quantum Ultra Single-Way Ceiling Recessed Cassette Split Heat Pump System
Cooling capacity: 9,000 BTU/H with 22.1 SEER2 / 14.4 EER2 efficiency
Heating capacity: 11,000 BTU/H with 11.8 HSPF2 / 3.2 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Single-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 3,700~11,400 BTU/h
- Cooling SEER2: 22.1 BTU/W.h
- Cooling EER2: 14.4 BTU/W.h
- Heating Rated Capacity: 11,000 BTU/h
- Heating Capacity Range: 4,100~14,300 BTU/h
- Heating HSPF2 (Region IV/V): 11.8 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 2.18 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 250~350 sq ft
- Minimum Room Size: 37 sq ft
- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010986
Indoor Unit
- Part Number: CK009GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 341 / 294 / 259 / 235 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 38 / 34 / 24 / 22 dB(A)
- Product Dimensions (WDH): 50"-3/8 x 13"-1/4 x 10" Inches
- Carton Dimensions (WDH): 57"-5/8 x 22"-1/2 x 22"-5/8 Inches
- Net / Gross Weight: 45.0 / 82.0 lbs
Decorative Panel
- Part Number: ---
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8 Inches
- Carton Dimensions (WDH): Packed with the indoor unit inside same carton
- Net / Gross Weight: 15.0 / N/A lbs
Outdoor Unit
- Part Number: YN009GMSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
- Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
- Net / Gross Weight: 62.1 / 67.7 lbs

Manuals & Documents

Technical Brochure

User & Installation Manual

Service Manual

Dimension Chart

Technical Specifications

Performance

System Type	Mini-Split
Capacity	9000 BTU
Tonnage	0.75 Ton
SEER2	22
EER2	14.4
HSPF2	11.8

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-454B

Shipping & Delivery

Orders typically ship within 1-3 business days. Freight items are delivered by appointment to a curbside address; someone must be present to receive and inspect the shipment. Inspect for damage before signing. Returns are accepted within 30 days on unused, uninstalled equipment in original packaging -- return shipping and a restocking fee may apply. See our Shipping Policy and Return & Refund Policy for full terms.

Manufacturer Warranty

Covered by Pioneer's limited warranty. Warranty coverage generally requires installation by a licensed HVAC contractor and, on many brands, product registration after installation. Refer to Pioneer's warranty documentation for the full terms that apply to this model.

Professional Installation Recommended

Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
