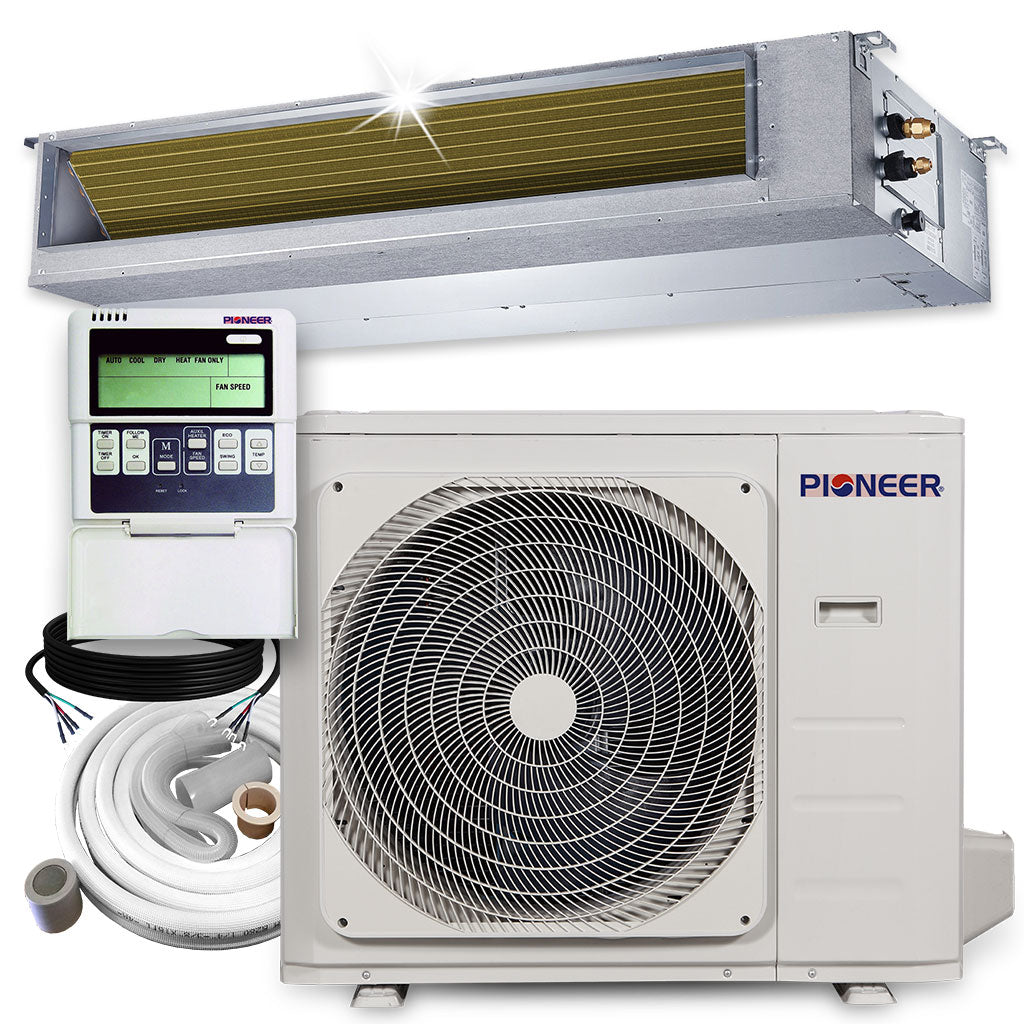

Pioneer® Quantum Ultra™ 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set
Model: RYB036GMSI20RL-10S
SKU: RYB036GMSI20RL-10S
3 Ton | SEER2 18.7 | R-454B | 208-230V
- 36000 BTU cooling capacity
- Up to 18.7 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208-230V power
$3,708.00
$5,299.00
Save 30%
Free Shipping
In Stock
Shipping to your area
Free shipping on qualifying equipment
Manufacturer warranty included
Licensed HVAC product support
Secure checkout
30-day returns on unused equipment
At a Glance
Key Specifications
System Type
Mini-Split
Capacity
36000 BTU
Tonnage
3 Ton
SEER2
18.7
Voltage
208-230V · Single Phase
Refrigerant
R-454B
Overview
Product Overview
Summary
- High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Slim-Duct Ceiling Concealed Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,900~42,500 BTU/h
- Cooling SEER2: 18.7 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Heating Rated Capacity: 40,000 BTU/h
- Heating Capacity Range: 8,100~43,500 BTU/h
- Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size: 104 sq ft
- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010993
-
Indoor Unit
- Part Number: RB036GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
- Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
- Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
- Net / Gross Weight: 106.3 / 120.3 lbs
-
Outdoor Unit
- Part Number: YN036GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
- Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
- Net / Gross Weight: 152.4 / 162.5 lbs
Dimension Chart
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 36000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 18.7 |
| EER2 | 10.1 |
| HSPF2 | 10.2 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Orders typically ship within 1-3 business days. Freight items are delivered by appointment to a curbside address; someone must be present to receive and inspect the shipment. Inspect for damage before signing. Returns are accepted within 30 days on unused, uninstalled equipment in original packaging -- return shipping and a restocking fee may apply. See our Shipping Policy and Return & Refund Policy for full terms.
Manufacturer Warranty
Covered by Pioneer's limited warranty. Warranty coverage generally requires installation by a licensed HVAC contractor and, on many brands, product registration after installation. Refer to Pioneer's warranty documentation for the full terms that apply to this model.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
