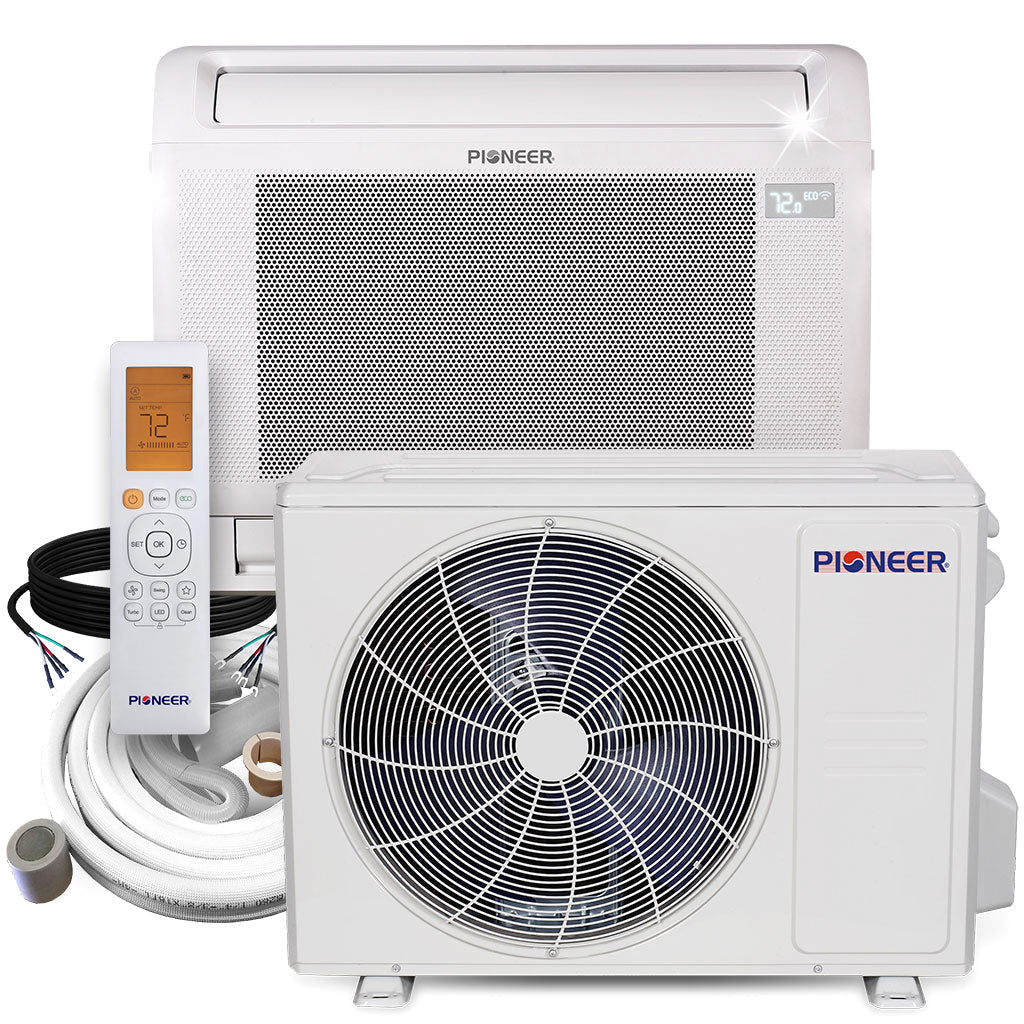

Pioneer® Quantum Ultra™ 16,000 BTU 23.8 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Model: FYB018GMSI24RL-10S SKU: FYB018GMSI24RL-10S

1.25 Ton | SEER2 23.8 | R-454B | 208-230V

16000 BTU cooling capacity
Up to 23.8 SEER2 rated efficiency
Uses R-454B refrigerant
Runs on 208-230V power

$1,978.00 $2,829.00 Save 30% Free Shipping

In Stock

Include System Installation Kit

Installation Kit Length

Often needed for this install

Browse all accessories →

MRCOOL CoolGuard Weldbracket for Side Discharge CondenserCooling Accessories $87.76

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

MRCOOL CoolGuard Corrugated Drain Hose for Ductless Mini-Split Air HandlerCooling Accessories $61.22

MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K IndoorCooling Accessories $256.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 16000 BTU

Tonnage 1.25 Ton

SEER2 23.8

Voltage 208-230V · Single Phase

Refrigerant R-454B

Overview

Product Overview

Summary

High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
Cooling capacity: 16,000 BTU/H with 23.8 SEER2 / 12.5 EER2 efficiency
Heating capacity: 17,000 BTU/H with 13.5 HSPF2 / 3.4 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 16,000 BTU/h
- Cooling Capacity Range: 4,700~18,000 BTU/h
- Cooling SEER2: 23.8 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 17,000 BTU/h
- Heating Capacity Range: 7,300~22,900 BTU/h
- Heating HSPF2 (Region IV/V): 13.5 / 9.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.4 / 2.16 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
- Minimum Room Size: 227 sq ft
- Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010990
Indoor Unit
- Part Number: FB018GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 441 / 382 / 324 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41.5 / 39 / 28.5 dB(A)
- Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
- Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
- Net / Gross Weight: 32.9 / 41.9 lbs
Outdoor Unit
- Part Number: YN018GMSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 57 dB(A)
- Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
- Carton Dimensions (WDH): 39"-1/4 x 15"-5/8 x 29"-1/8 Inches
- Net / Gross Weight: 92.6 / 100.3 lbs

Manuals & Documents

Technical Brochure

User & Installation Manual

Service Manual

Dimension Chart

Technical Specifications

Performance

System Type	Mini-Split
Capacity	16000 BTU
Tonnage	1.25 Ton
SEER2	23.8
EER2	12.5
HSPF2	13.5

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-454B
