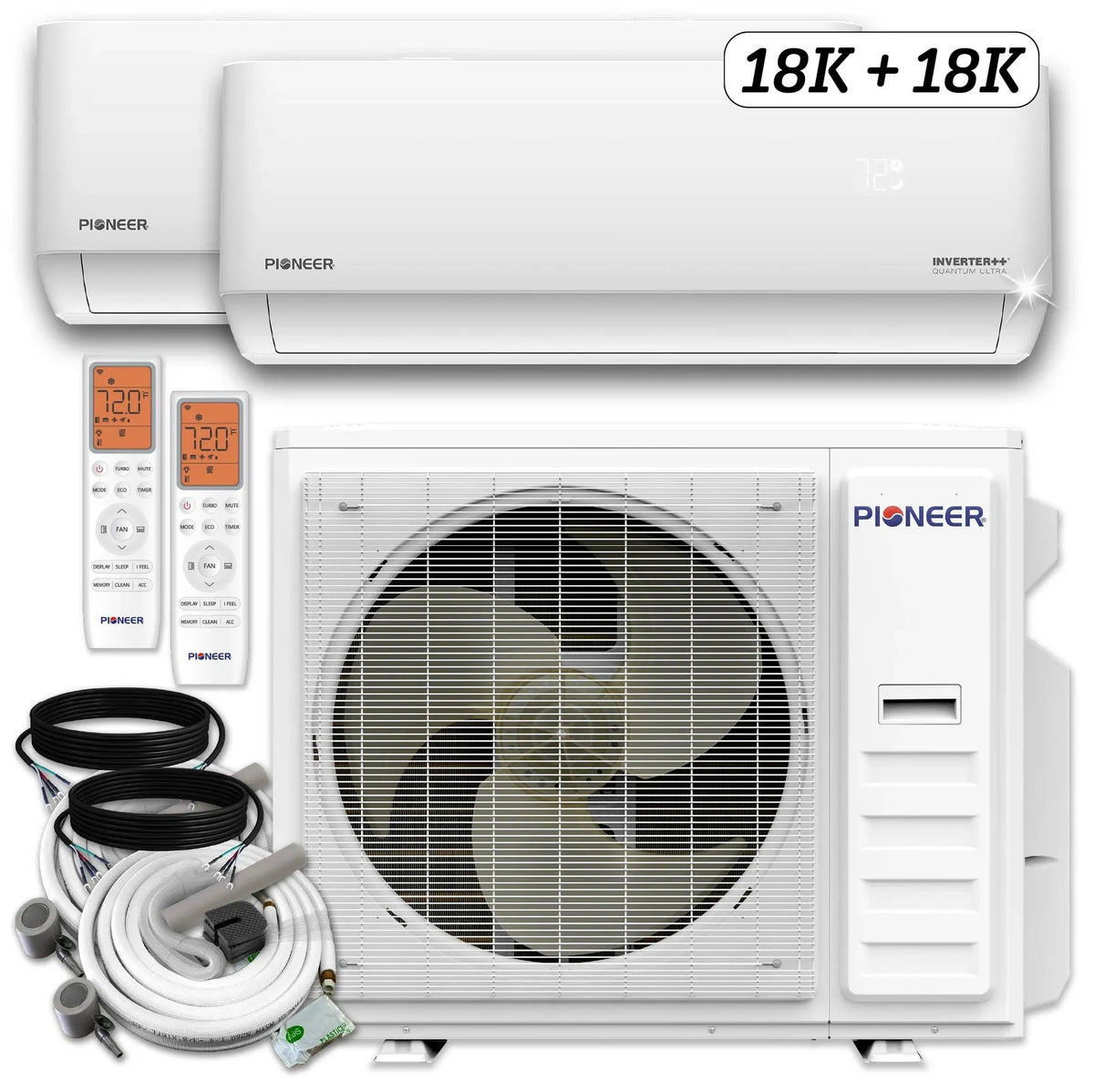

Pioneer 36,000 BTU (18K + 18K) 3-Ton Quantum Ultra 22.5 SEER2 Energy-Star 2 Zone Heat Pump - 230V

Model: WYT040GLSI24M4-18W-18W SKU: WYT040GLSI24M4-18W-18W

3 Ton | SEER2 22.5 | 208-230V

36000 BTU cooling capacity
Up to 22.5 SEER2 rated efficiency
Runs on 208-230V power

$3,614.00 $4,299.00 Save 16% Free Shipping

In Stock

EZFlex Lineset #1

EZFlex Lineset #2

Often needed for this install

Browse all accessories →

MRCOOL CoolGuard Weldbracket for Side Discharge CondenserCooling Accessories $87.76

MRCOOL Lineguard® 4.5in Line Set Cover - GrayCooling Accessories $133.00

MRCOOL CoolGuard Corrugated Drain Hose for Ductless Mini-Split Air HandlerCooling Accessories $61.22

MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K IndoorCooling Accessories $256.00

Sizes and capacities vary between models. Check each part against your unit before ordering, or ask us and we'll confirm the fit.

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini-Split

Capacity 36000 BTU

Tonnage 3 Ton

SEER2 22.5

Voltage 208-230V · Single Phase

Overview

Product Overview

Pioneer 36,000 (18K+18K) BTU 2-Ton Quantum Ultra 22.5 SEER2 Energy-Star 2 Zone Heat Pump 230V

Pioneer brand multi split heat pump system, complete set. System includes: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)
(x2) inside unit cooling capacity: 18,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum - 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum - 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
Energy-Star Certified and Wi-Fi Enabled
Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
Certified by: ETL, AHRI, DOE for safety, performance and efficiency
Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

What's Included:

1 x Pioneer® 36,000 BTU Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Air Conditioner Heat Pump 230V
2 x Pioneer® Multi Zone 18,000 BTU Quantum Ultra Wall-Mounted Air Handlers
2 x EZFlex Flexible Pipes (Choose your length)
2 x Remote Controllers

Manuals & Documents

Technical Brochure

User & Installation Manual

Multi-Split Addendum

Service Manual

Technical Specifications

Performance

System Type	Mini-Split
Capacity	36000 BTU
Tonnage	3 Ton
SEER2	22.5
EER2	12.0
HSPF2	9.5

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
