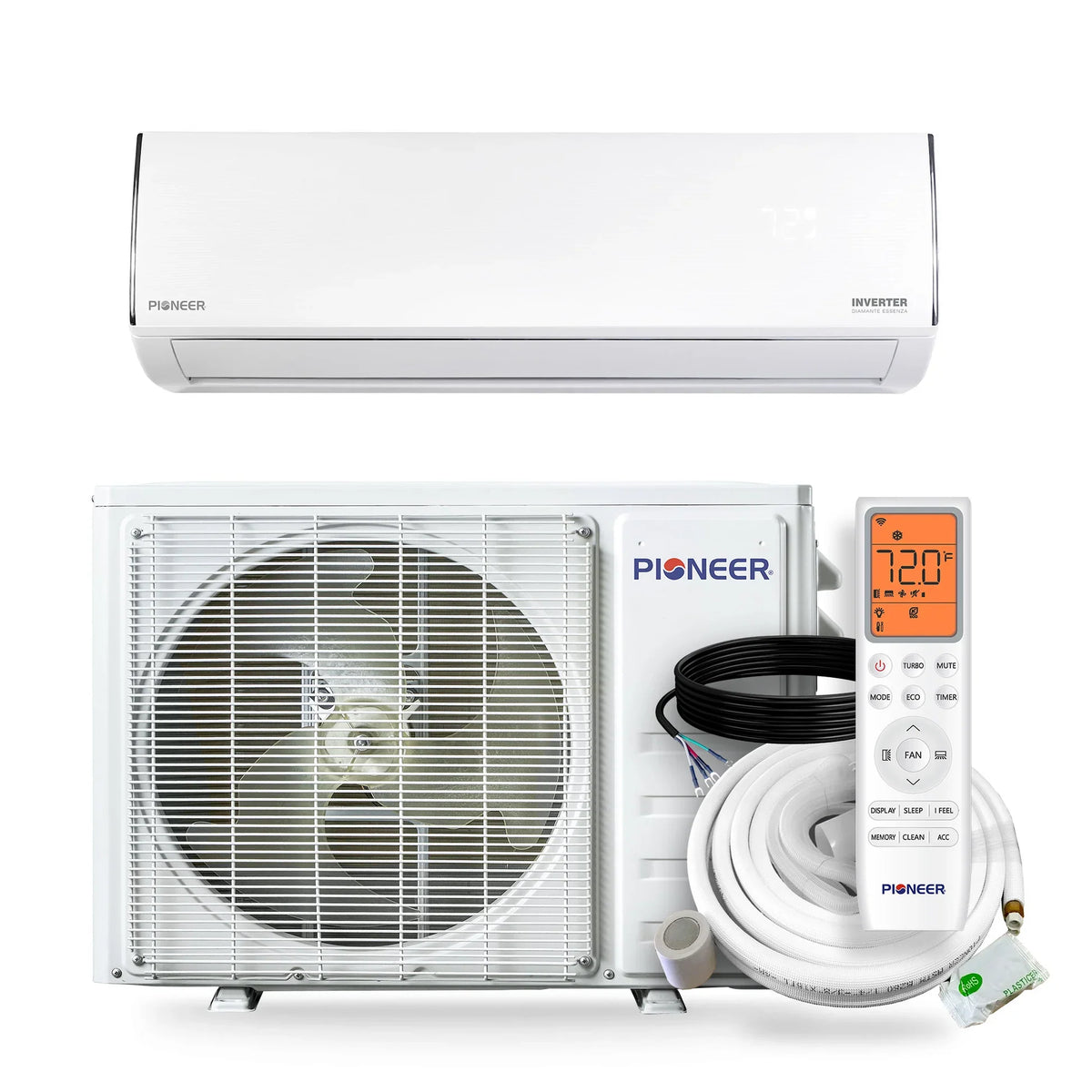

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
3 Ton | SEER2 17 | R-32 | 208-230V
- 35000 BTU cooling capacity
- Up to 17 SEER2 rated efficiency
- Uses R-32 refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
What's Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Specifications
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 35,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 35,400 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
- Refrigerant Type: R-32
- Suitable Area: 800~1350 Sq.F
- AHRI Reference: 217048738
Manuals & Documents
IMPORTANT
The outdoor unit is factory pre-charged with R32 Refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 16' lineset option.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 35000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 17 |
| EER2 | 9.5 |
| HSPF2 | 8.5 |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-32 |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
