MRCOOL

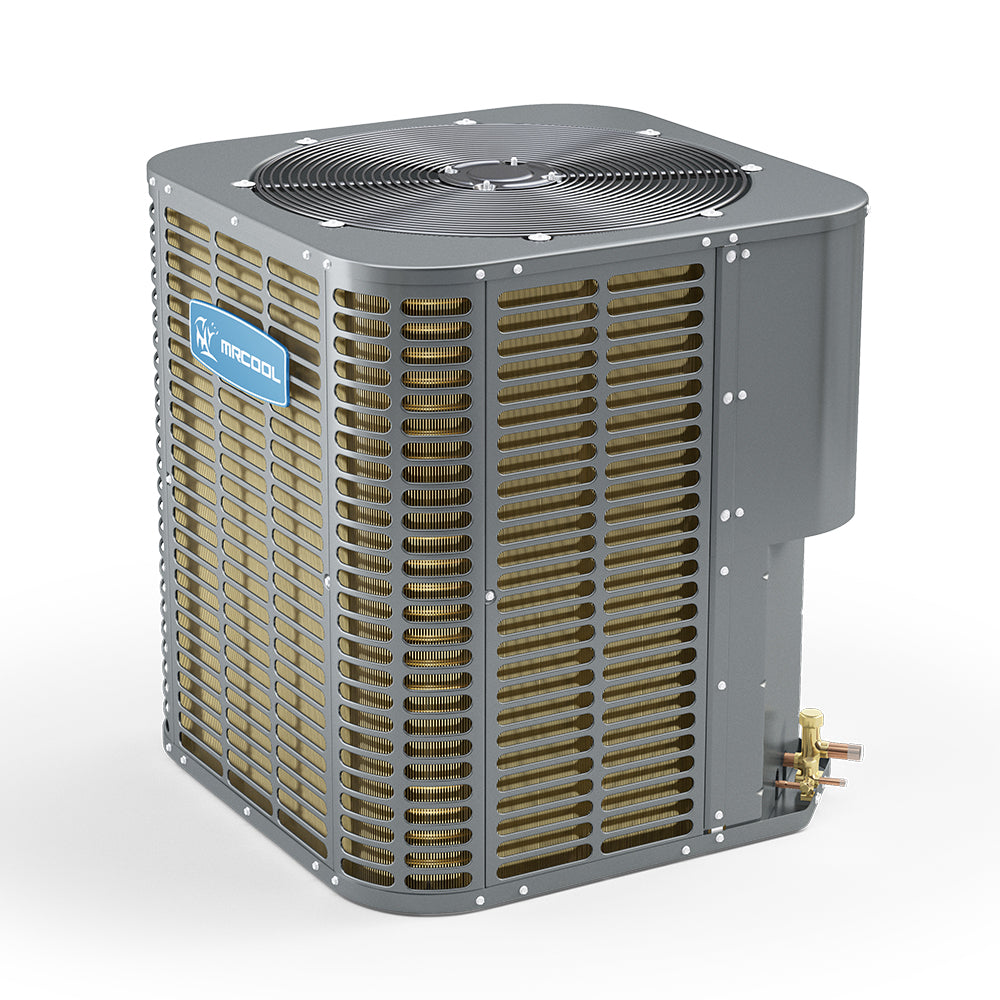

MRCOOL ProDirect 3.5 Ton up to 15 SEER2 42,000BTU Split System Heat Pump
3.5 Ton | SEER2 14.3 | 230V
- 39000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- scroll compressor
- Runs on 230V power
Key Specifications
Product Overview
Put your comfort first for once and get rid of that old, inefficient condenser and get the MRCOOL ProDirect 3.5 Ton 15 SEER Split System Heat Pump Condenser installed for the best comfort in your home. The highly-efficient scroll compressor helps your unit bring you comfort as fast as possible with as little wasted energy as possible. The piston flow control device that manages the refrigerant also aids in increasing the system’s overall efficiency. Your comfort is important, so you want a good amount of protection for the unit that’s providing it for you. The galvanized steel cabinet and the Gold Fin® condenser ensure that your comfort is never in danger. The gold coating is great at keeping water from the fins, meaning that rust and corrosion are never concerns. It’s also environmentally friendly, non-toxic, and it improves system efficiency by providing more insulation. The warranty that you can get once you register this AHRI rated, ETL listed unit online offer further peace of mind. The MRCOOL ProDirect 3.5 ton split system heat pump condenser will offer you years upon years of total rest and relaxation.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Additional specifications
| UPC | 840255553865 |
|---|---|
| Series | PRODIRECT Heat Pump Condenser |
| Refrigerant charge (oz) | 148.15 |
| Heating capacity (BTU/h) | 42600 |
| Airflow (CFM) | 3820 |
| Cycle (Hz) | 60 |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 29.90 x 34.40 x 29.90 |
| Shipping weight (lbs) | 207 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 39000 BTU |
| Tonnage | 3.5 Ton |
| Compressor / Stages | scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 32.88 x 29.14 |
|---|---|
| Weight | 207.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
Make sure it is the right size, and that you have the rest of it
Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.
Still deciding on the right equipment?
Our HVAC specialists can help you confirm sizing and compatibility before you buy.
