MRCOOL

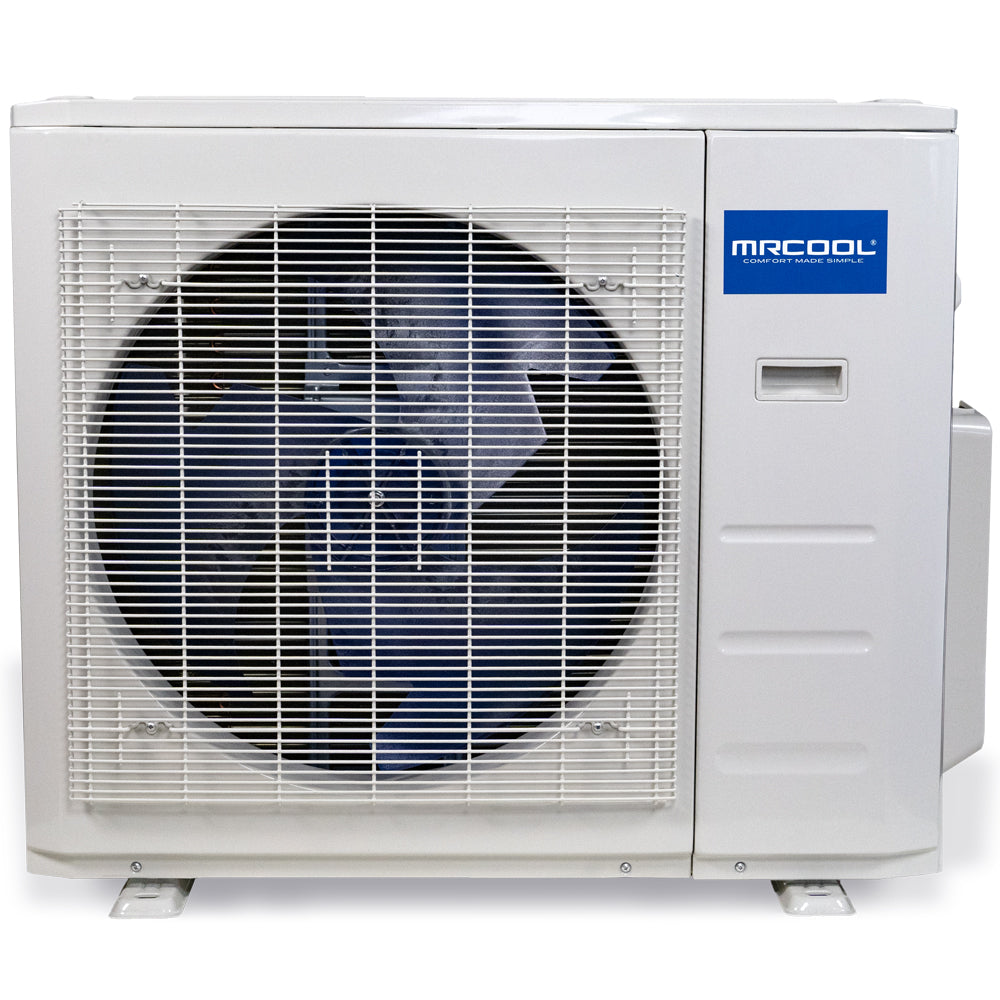

MRCOOL Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
SEER2 23.9 | R-410A | 208-230V
- 36000 BTU cooling capacity
- Up to 23.9 SEER2 rated efficiency
- ROTARY compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
If you’re looking for affordability and efficiency, you’ll find just that with the MRCOOL® Olympus 36k Ductless Mini-Split Condenser. This Energy-Star certified condenser features a 23 SEER and 11.3 HSPF. Simply match this unit with an Olympus ceiling cassette or wall-mounted air handler and experience exceptional heating and cooling performance, while remaining eco-friendly with R-410A refrigerant. Once installed by a licensed professional, you can have peace of mind thanks to the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Additional specifications
| UPC | 840255522014 |
|---|---|
| Series | Olympus Multi-Zone |
| Refrigerant charge (oz) | 134.04 |
| Heating capacity (BTU/h) | 37000 |
| HSPF2 (region V) | 7.1 |
| SEER | Up To 23 |
| EER | Up To 11.5 |
| HSPF (region IV) | 11.3 |
| HSPF (region V) | 9.2 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 25 |
| Max fuse / breaker (A) | 40 |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 5 Year Parts |
| Compressor warranty (yrs) | 7 Years |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.69 |
| Shipping weight (lbs) | 181 |
Documents
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 36000 BTU |
| Compressor / Stages | ROTARY |
| SEER2 | 23.9 |
| EER2 | 11.7 |
| HSPF2 | 9.3 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 1/4" / Suction 3/8 & 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 169.09 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
