MRCOOL

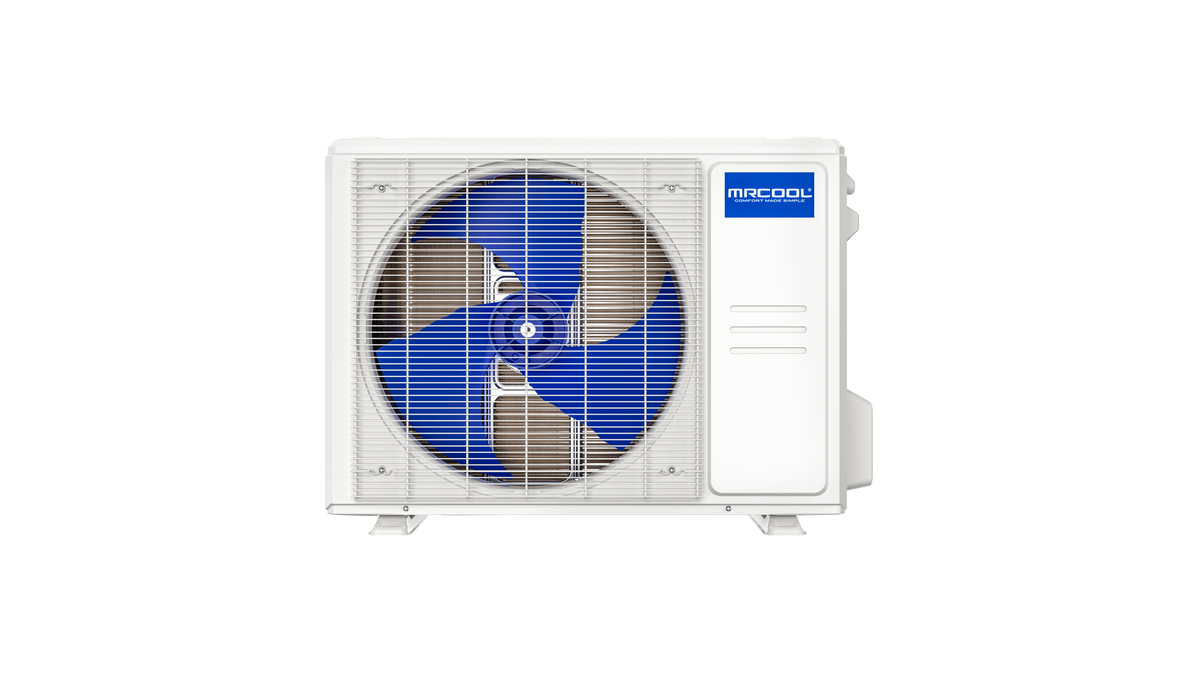

MRCOOL DIY Select 1st Gen - R454B - 18K BTU 230V Condenser w/ 11ft Install Kit
1.5 Ton | SEER2 17.3 | R-454B | 208/230V
- 17000 BTU cooling capacity
- Up to 17.3 SEER2 rated efficiency
- Rotary compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® DIY® Select 18K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser is designed to make HVAC installation simple and accessible for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, certifications, or prior HVAC experience. Ideal for garages, home offices, studios, and similar spaces, it delivers reliable heating and cooling for areas up to 800 square feet.
Despite its DIY®-friendly design, the system delivers strong performance with a 17.3 SEER2 cooling rating and 8.5 HSPF2-4 heating efficiency, providing consistent, energy-efficient comfort year-round while helping control utility costs.
Installation is further simplified with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. Most components are included, making setup faster and more approachable for first-time installers.
Comfort control is easy using the included wireless remote or the MRCOOL® Comfort app, which allows remote temperature control, scheduling, and energy monitoring. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Features like Sleep Mode, Dry Mode, Auto, and a Gold Fin® condenser coating enhance comfort and durability, even in humid or coastal environments.
For added peace of mind, the MRCOOL® DIY® Select system is backed by a 2-year compressor warranty and a 1-year parts warranty.
Additional specifications
| UPC | 840255595681 |
|---|---|
| Series | DIY Select |
| Refrigerant charge (oz) | 34.92 |
| Heating capacity (BTU/h) | 18000 |
| HSPF2 (region V) | 6.5 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15 |
| Max fuse / breaker (A) | 20 |
| Inverter | Yes |
| Metering device | EEV |
| Line set included (ft) | 11.5 ft. |
| Max line set length (ft) | 75 ft. |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 1 Year Parts |
| Compressor warranty (yrs) | 2 Years Compressor |
| Shipping W x H x D (in) | 35.04 x 29.13 x 13.46 |
| Shipping weight (lbs) | 82.23 |
Documents
- Installation manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Capacity | 17000 BTU |
| Tonnage | 1.5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 17.3 |
| EER2 | 9 |
| HSPF2 | 8.5 |
| Sound Level | 55 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 30.12 x 21.85 x 11.93 |
|---|---|
| Weight | 62.61 lb |
| Color / Finish | White |
