MRCOOL
MRCOOL DIY EZ PRO - R454B DIY 18K BTU 230V Ductless Mini-Split Heat Pump Air Hander, Condenser, and 11.5 ft Install Kit
1.5 Ton | SEER2 20 | R-454B | 208/230V
- 17000 BTU cooling capacity
- Up to 20 SEER2 rated efficiency
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
MRCOOL DIY EZ PRO - R454B DIY 18K BTU 230V Ductless Mini-Split Heat Pump Air Hander, Condenser, and 11.5 ft Install Kit.
What this system is
- EZPRO-18-HP-C-23011DE-O — DIY Easy Pro® - R454B DIY 18K BTU Ductless Mini-Split Heat Pump Condenser, 230V, with 11.5 ft Install Kit
- EZPRO-18-HP-WMAH-230DE-O — DIY Easy Pro® - R454B DIY 18K BTU Ductless Mini-Split Heat Pump Wall Mounted Air Handler, 230V, with 13' Communication Cable

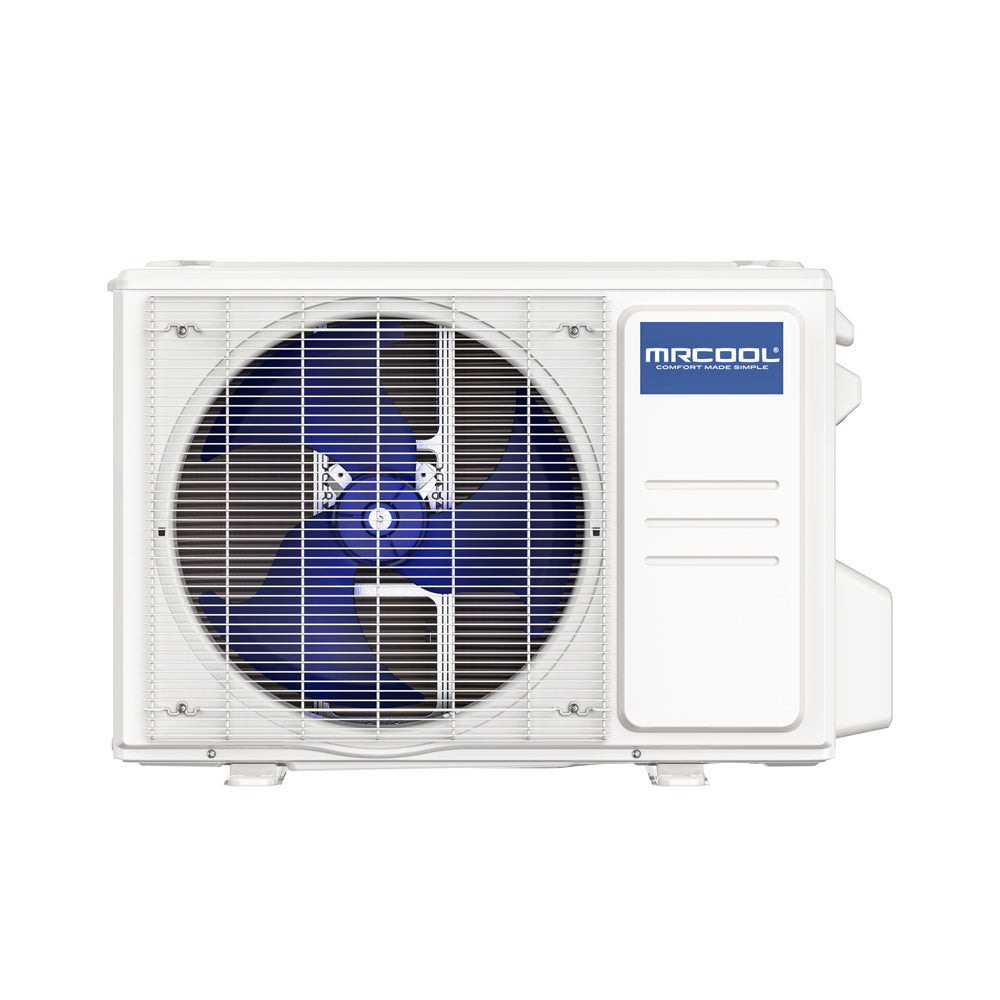

Outdoor condenser — EZPRO-18-HP-C-23011DE-O
The MRCOOL® EasyPro® 18K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser delivers powerful, energy-efficient comfort in a system designed specifically for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, HVAC certifications, or prior experience, making it an excellent solution for garages, basements, attics, bonus rooms, and other spaces up to 800 square feet.
While installation is simple, performance is anything but basic. With a 20 SEER2 cooling efficiency and an 8.5 HSPF2-4 heating rating, the EasyPro® 18K provides steady, reliable comfort throughout the year while using less energy than traditional systems.
Setup is made even easier with the included 11.5-foot Quick Connect® line set, which arrives factory pre-charged with environmentally friendly R-454B refrigerant. This eliminates vacuum pumps, refrigerant handling, and specialized HVAC tools, reducing installation time and minimizing common setup errors.
Once installed, control is effortless. The included wireless remote and the MRCOOL® Comfort app allow you to adjust temperatures, create schedules, and monitor energy usage from virtually anywhere. Amazon Alexa and Google Assistant compatibility adds hands-free voice control for added convenience.
Comfort-enhancing features such as Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency, while the Gold Fin® condenser coating provides superior corrosion resistance for humid or coastal environments.
For added peace of mind, the EasyPro® 18K is backed by a 5-year compressor warranty and a 3-year parts warranty, reflecting MRCOOL®’s confidence in the durability and quality of every system.
| Model number | EZPRO-18-HP-C-23011DE-O |
|---|---|
| UPC | 840255595988 |
| Series | DIY EasyPro |
| Refrigerant | R-454B |
| Refrigerant charge (oz) | 34.92 |
| Nominal tonnage | 1.5 |
| Cooling capacity (BTU/h) | 17000 |
| Heating capacity (BTU/h) | 18000 |
| SEER2 | 20 |
| EER2 | 9.8 |
| HSPF2 (region IV) | 8.5 |
| HSPF2 (region V) | 6.6 |
| Voltage | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 15 |
| Max fuse / breaker (A) | 20 |
| Compressor type | Rotary |
| Inverter | Yes |
| Metering device | EEV |
| Liquid line size (in) | 1/4 |
| Suction line size (in) | 1/2 |
| Line set included (ft) | 11.5 ft. |
| Max line set length (ft) | 75 ft. |
| Sound level (dBA) | 55 |
| Colour | White |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 3 Year Parts |
| Compressor warranty (yrs) | 5 Year Compressor |
| Net W x H x D (in) | 30.12 x 21.85 x 11.93 |
| Net weight (lbs) | 62.61 |
| Shipping W x H x D (in) | 34.92 x 24.02 x 13.27 |
| Shipping weight (lbs) | 82.23 |
Indoor unit — EZPRO-18-HP-WMAH-230DE-O
The MRCOOL® EasyPro® 18K BTU 230V Ductless Mini-Split Heat Pump Air Handler delivers powerful, energy-efficient heating and cooling for spaces up to 800 square feet. Ideal for garages, basements, workshops, and bonus rooms, it provides reliable year-round comfort while helping control energy use and operating costs.
Designed for easy DIY installation, the system is compatible with the MRCOOL® Quick Connect® line sets, which come factory pre-charged with environmentally friendly R-454B refrigerant. This factor totally eliminates the need for vacuum pumps and refrigerant handling, making it easy for homeowners to install. The included 13-foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear.
Comfort control is simple using the wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency. A Gold Fin® condenser coating enhances corrosion resistance for long-term durability in humid or coastal environments.
For added peace of mind, the MRCOOL® EasyPro® includes a 5-year compressor warranty and a 3-year parts warranty. This strong, industry-leading coverage demonstrates the confidence and pride MRCOOL has in the reliability and performance of every unit.
| Model number | EZPRO-18-HP-WMAH-230DE-O |
|---|---|
| UPC | 840255595490 |
| Series | DIY EasyPro |
| Refrigerant | R-454B |
| Nominal tonnage | 1.5 |
| Airflow (CFM) | 470.9 / 400.2 / 329.6 / 270.8 |
| Voltage | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | DC |
| Filter type | Reusable |
| Max coverage area | 800 sq. ft. |
| Sound level low (dBA) | 18.5 |
| Sound level high (dBA) | 46.5 |
| Colour | White |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| Parts warranty (years) | 3 Year Parts |
| Net W x H x D (in) | 38.23 x 12.64 x 8.98 |
| Net weight (lbs) | 30.64 |
| Shipping W x H x D (in) | 41.14 x 15.94 x 12.01 |
| Shipping weight (lbs) | 44.97 |
Documents
- Installation manual (EZPRO-18-HP-C-23011DE-O) (PDF)
- Service manual (EZPRO-18-HP-C-23011DE-O) (PDF)
- Remote manual (EZPRO-18-HP-C-23011DE-O) (PDF)
- Brochure (EZPRO-18-HP-C-23011DE-O) (PDF)
- Warranty (EZPRO-18-HP-C-23011DE-O) (PDF)
- AHRI certificate (EZPRO-18-HP-C-23011DE-O) (PDF)
- EnergyGuide label (EZPRO-18-HP-C-23011DE-O) (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Ductless Mini Split |
|---|---|
| Capacity | 17000 BTU |
| Tonnage | 1.5 Ton |
| SEER2 | 20 |
| EER2 | 9.8 |
| HSPF2 | 8.5 |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
