MRCOOL

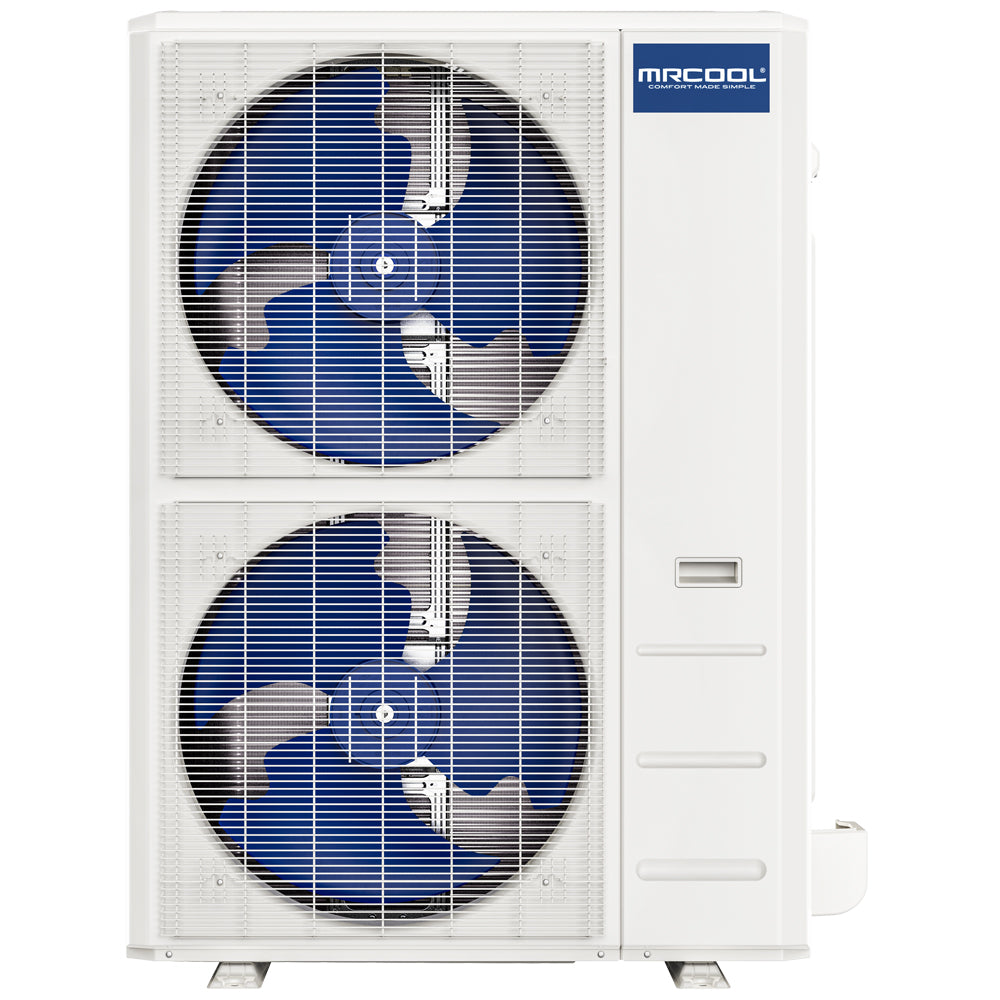

MRCOOL 5 Ton MRCOOL® VersaPro® Central Ducted Condenser
5 Ton | SEER2 14.7 | R410A | 208-230V
- 57000 BTU cooling capacity
- Up to 14.7 SEER2 rated efficiency
- Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Encountering discomfort within your own home can be immensely frustrating, particularly when confronted with the daunting costs and time requirements associated with upgrading an outdated HVAC system. Thankfully, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a solution to all your home comfort woes, providing superior year-round heating and cooling coupled with exceptional cost-effectiveness. This variable speed 60k unit boasts impressive specifications, including a SEER2 of 14.7 and HSPF4 of 8.5, ensuring peak effectiveness and efficiency. Designed to seamlessly integrate with the MRCOOL® VersaPro® Central Ducted Air Handler, this pairing forms a quality system tailored for any household. Additionally, the incorporation of a DC inverter enhances performance while reducing utility expenses, making it an ideal replacement for outdated heating and cooling systems. Installation is made simple with the unit's compatibility with the No Vac® Quick Connect® Line Sets and coupler kits, enabling easy setup for HVAC professionals. Crafted for durability, the unit features a robust build and finish utilizing painted galvanized steel, ensuring long-term reliability. In addition, the compact, side-discharge design makes maintenance a breeze. With a 10-year parts and compressor warranty included, your investment is protected, providing peace of mind and hassle-free coverage from the moment of installation.
Additional specifications
| UPC | 840255577526 |
|---|---|
| Series | VersaPro |
| Refrigerant charge (oz) | 172 |
| Heating capacity (BTU/h) | 60000 |
| HSPF2 (region V) | 6.7 |
| Airflow (CFM) | 4411.76 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 34 |
| Max fuse / breaker (A) | 60 |
| Max line set length (ft) | 213.25 |
| AHRI certified | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 43.11 x 57.48 x 19.49 |
| Shipping weight (lbs) | 248.46 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 57000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 14.7 |
| EER2 | 8.8 |
| HSPF2 | 8.5 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.48 x 52.48 x 16.34 |
|---|---|
| Weight | 217.15 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
Make sure it is the right size, and that you have the rest of it
Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.
Still deciding on the right equipment?
Our HVAC specialists can help you confirm sizing and compatibility before you buy.
