MRCOOL

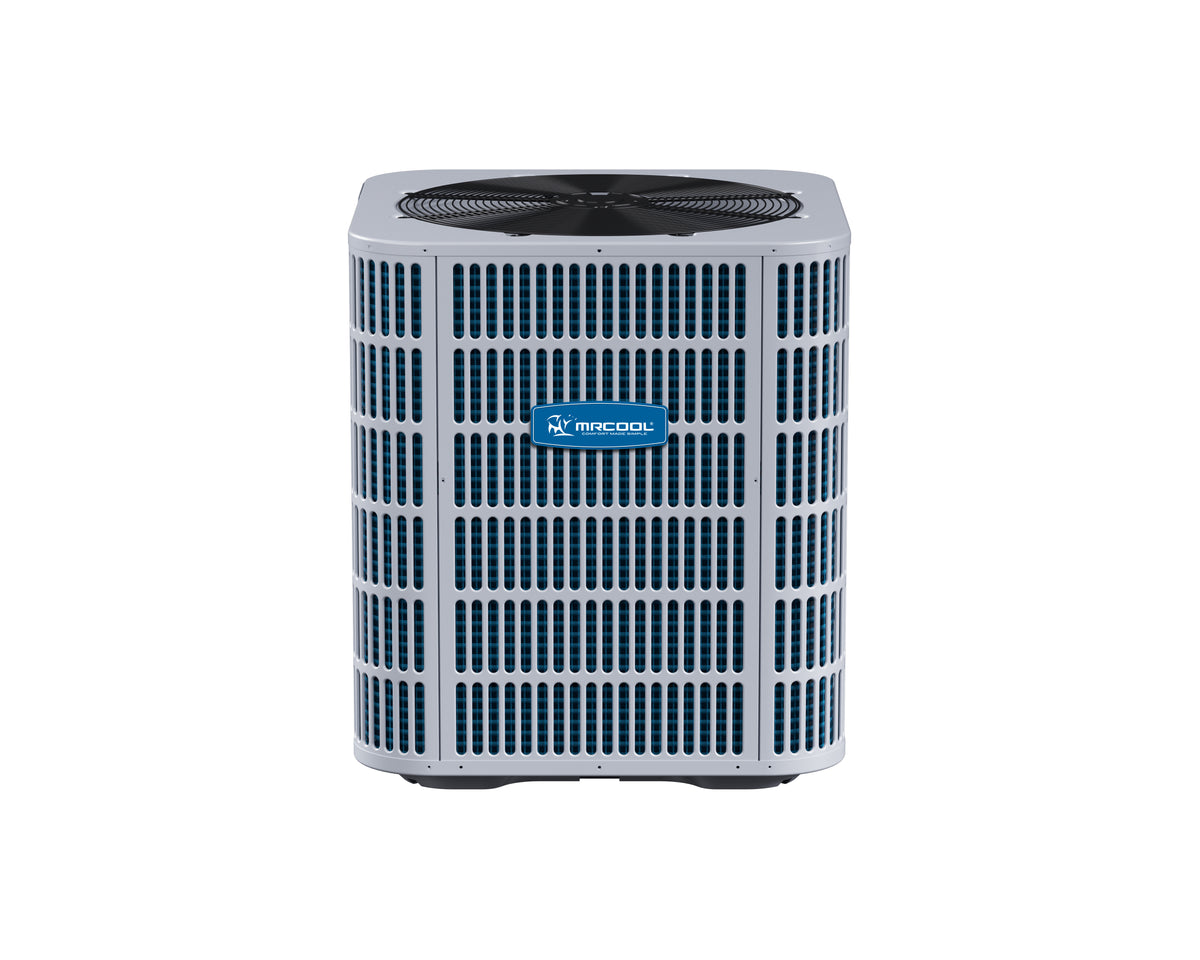

MRCOOL 5 Ton 15 SEER PRODIRECT Series Air Conditioner
SEER2 15.2 | R410A | 208/230V
- 60000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
The 5 Ton PRODIRECT™ Series Air Conditioner offers a combination of efficiency and high performance, making it a strong option for homeowners. It operates with R410a chlorine-free refrigerant and is powered by an energy-efficient compressor, ensuring enhanced performance. Built for reliability, the unit comes equipped with inner-groove copper tubing, an aluminum fin, and service valves with sweat connections, plus an easy-access gauge port for easy maintenance. You can also add an optional drier filter for further customization. Designed for your comfort and ease of use, the 60K condenser features a unique sound control top design that keeps noise levels as low as 77 decibels and about as quiet as a dishwasher. Thanks to its compact design, installation is a breeze, allowing for simple transportation and setup. Additionally, its wire fan discharge grille and steel louver coil guard provide long-lasting durability and protection, ensuring years of reliable service. Both ETL and AHRI certified, this system has undergone extensive testing to meet the highest quality standards in the HVAC industry. MRCOOL® offers a standard 5-year plus an additional 5-year extended parts and compressor warranty upon registration, providing you with long-term peace of mind and dependable performance.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Service valves with sweat connections and easy-access gauge ports
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585507 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Air Conditioner |
| Refrigerant charge (oz) | 126 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 35.1 |
| Max fuse / breaker (A) | 60 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 60000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 77 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 11/8" |
Physical & Certifications
| Dimensions (W x H x D) | 29 1/8 x 33 3/16 x 29 1/8 |
|---|---|
| Weight | 194 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
