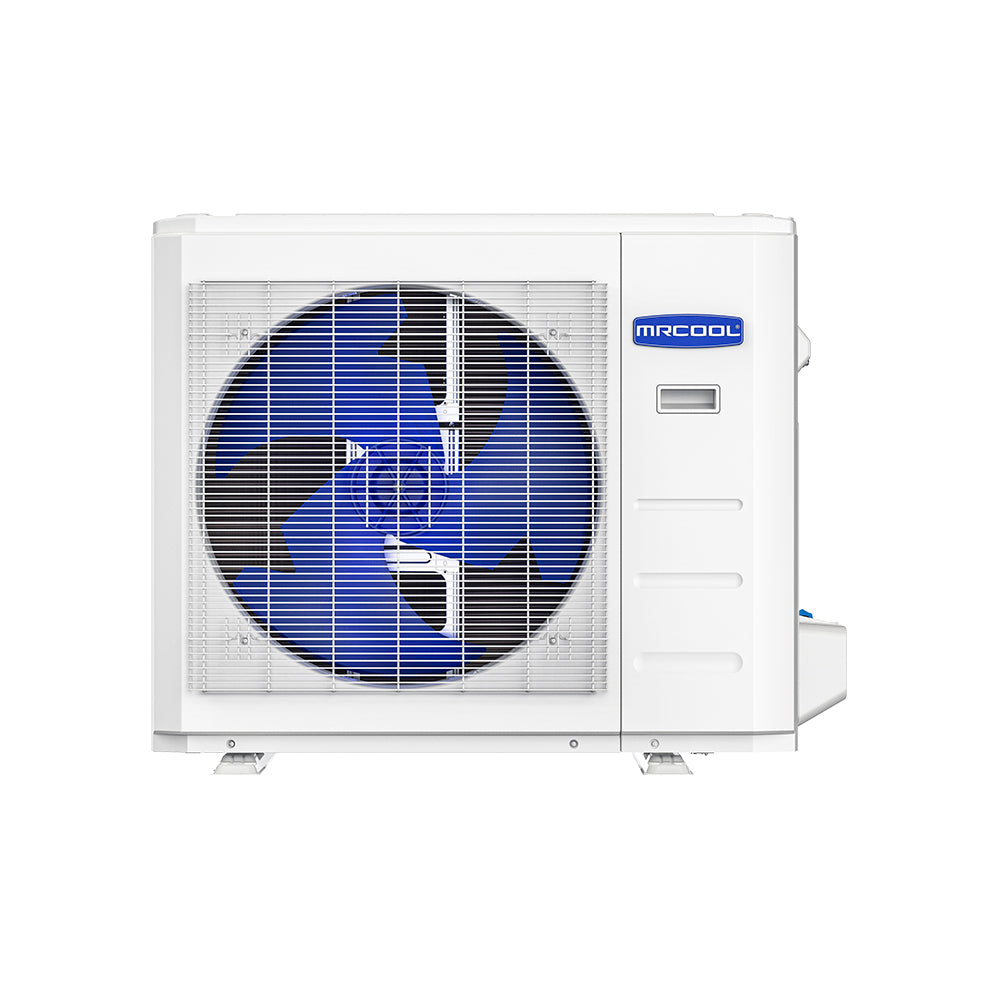

MRCOOL 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
2.5 Ton | SEER2 17 | R454B | 208-230V
- 30000 BTU cooling capacity
- Up to 17 SEER2 rated efficiency
- Uses R454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Upgrading your HVAC system doesn’t have to be complicated. The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a simple, cost-effective solution to meet your home’s heating and cooling needs year-round.
With a 30k capacity and a variable-speed design, this unit provides a SEER2 rating of 17 and an HSPF4 rating of 8.5, ensuring it’s both energy-efficient and effective. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, this system delivers reliable performance, adjusting to your home’s heating and cooling demands. The advanced DC inverter technology helps optimize energy usage and minimize utility costs. A MRCOOL® Smart thermostat is also included, ensuring simple and effective temperature management.
The VersaPro® condenser also focuses on sustainability, using eco-friendly R-454B refrigerant. Its durable, painted galvanized steel construction ensures long-lasting reliability, while the compact side-discharge design makes installation easier, even in tight spaces. Built-in self-diagnostic features further simplify maintenance, helping you avoid unnecessary service calls.
To give you peace of mind, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This means you can rely on its performance for years to come, knowing your investment is protected. Upgrade today and experience a more efficient, hassle-free way to maintain comfort in your home.
Additional specifications
| UPC | 840255582704 |
|---|---|
| Series | VersaPro® Central Ducted Condenser |
| Refrigerant charge (oz) | 91.71 |
| Heating capacity (BTU/h) | 31000 |
| HSPF (region IV) | 8.5 |
| HSPF (region V) | 6.6 |
| Airflow (CFM) | 3001.8 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 22.5 |
| Max fuse / breaker (A) | 25 |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 42.91 x 34.84 x 19.68 |
| Shipping weight (lbs) | 152.34 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 30000 BTU |
| Tonnage | 2.5 Ton |
| SEER2 | 17 |
| EER2 | 10.7 |
| Sound Level | 60 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 141.76 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
