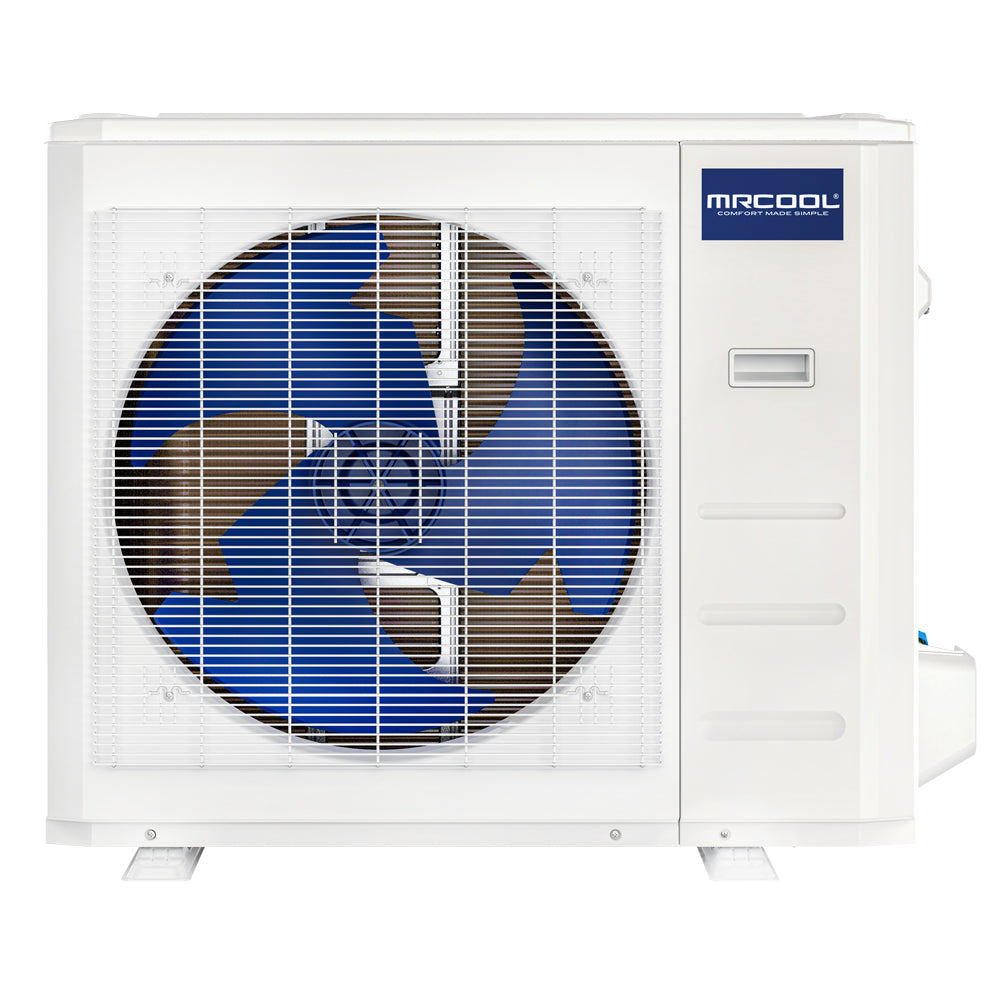

MRCOOL 2.5 Ton MRCOOL® VersaPro® Central Ducted Condenser
2.5 Ton | SEER2 16.5 | R410A | 208-230V
- 30000 BTU cooling capacity
- Up to 16.5 SEER2 rated efficiency
- Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Feeling uncomfortable in your own home due to HVAC issues can be extremely frustrating, particularly considering the high costs and time needed for upgrades. Fortunately, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a solution to your home comfort woes. With its variable speed 30k unit, boasting an impressive SEER2 of 16.5 and HSPF4 of 8.1, it ensures efficient and effective year-round heating and cooling. Engineered to seamlessly integrate with the MRCOOL® VersaPro® Central Ducted Air Handler, this combination creates a top-tier system suitable for any household. Plus, with the help of a DC inverter, it operates more efficiently, resulting in reduced utility expenses. Installation is made simple with the included 25-foot MRCOOL® Quick Connect® precharged line set, which comes filled with eco-friendly R-410A refrigerant, eliminating the need for vacuuming and ensuring effortless connectivity. Crafted with durability in mind, this unit features a robust build using painted galvanized steel, promising long-term reliability. Maintenance is also hassle-free, thanks to its compact design and self-diagnostic capabilities. Additionally, purchases of this unit are backed by a 10-year parts and compressor warranty, providing peace of mind and added reassurance. Say goodbye to home comfort struggles with the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser.
Additional specifications
| UPC | 840255577496 |
|---|---|
| Series | VersaPro |
| Refrigerant charge (oz) | 111 |
| Heating capacity (BTU/h) | 30000 |
| HSPF2 (region V) | 6.5 |
| Airflow (CFM) | 3000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 25 |
| Max fuse / breaker (A) | 40 |
| Max line set length (ft) | 164.04 |
| AHRI certified | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 42.91 x 35.04 x 19.88 |
| Shipping weight (lbs) | 156.09 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 30000 BTU |
| Tonnage | 2.5 Ton |
| Compressor / Stages | Rotary |
| SEER2 | 16.5 |
| EER2 | 10 |
| HSPF2 | 8.1 |
| Sound Level | 62 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 37.24 x 31.89 x 16.14 |
|---|---|
| Weight | 146.39 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
Make sure it is the right size, and that you have the rest of it
Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.
Still deciding on the right equipment?
Our HVAC specialists can help you confirm sizing and compatibility before you buy.
