MRCOOL

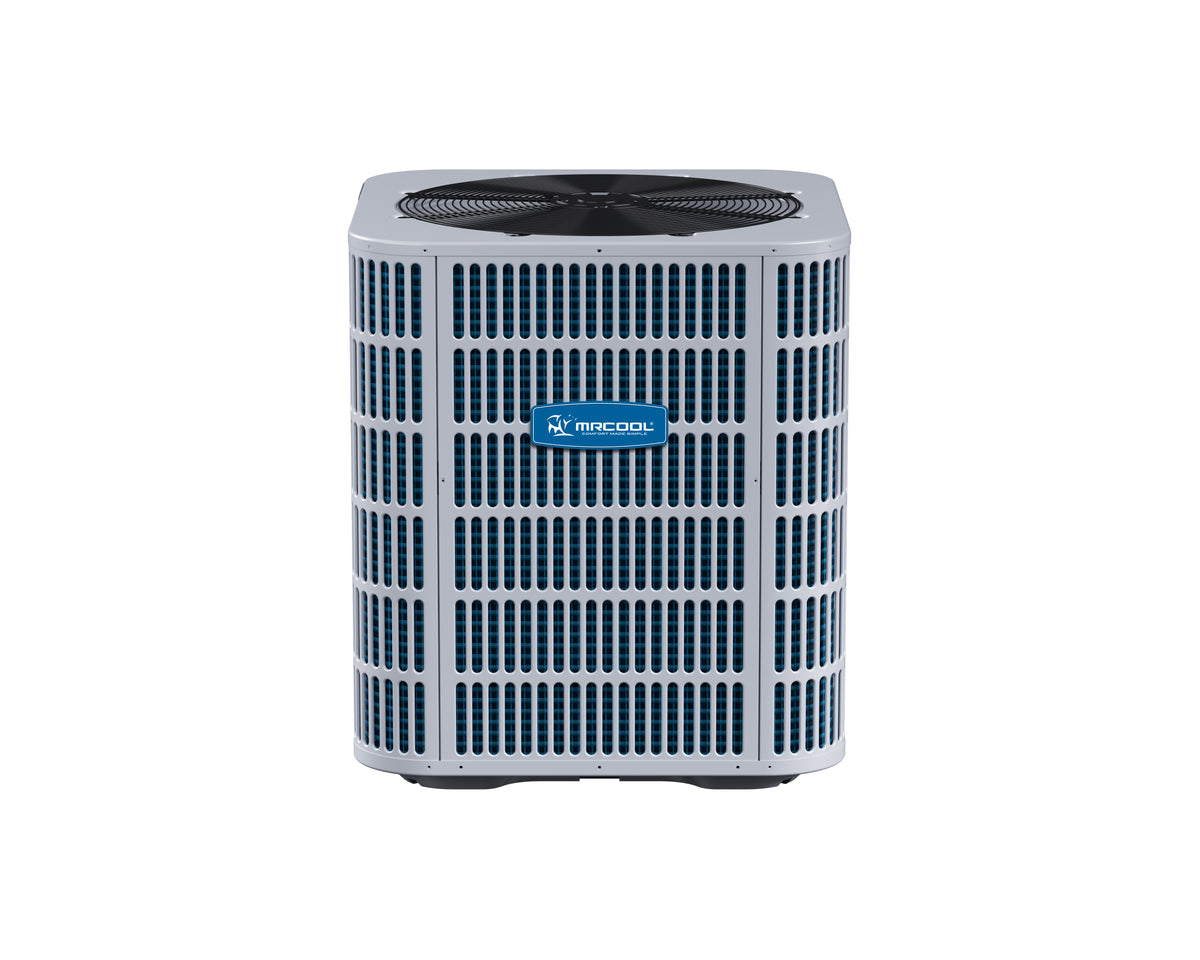

MRCOOL 2.5 Ton 15 SEER2 PRODIRECT Series Heat Pump Condeners
SEER2 15.2 | R410A | 208/230V
- 30000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Enjoy reliable comfort with the 2.5 Ton PRODIRECT™ Series Heat Pump, a solid HVAC choice for your home. This system uses chlorine-free R410a refrigerant and an advanced energy-efficient compressor to achieve an impressive SEER2 rating of up to 15.2. Designed for durability, the high-quality condenser includes inner-groove copper tubes, aluminum fins, and service valves with sweat connections, along with easy-access gauge ports to simplify maintenance. The 30K PRODIRECT™ Heat Pump is also equipped with a sound control top that keeps noise levels at a low 73 decibels, similar to the hum of a dishwasher, creating a quieter home environment for you and your family. Its compact build supports straightforward installation and easy transport, while protective features like the wire fan discharge grille and steel louver coil guard add durability. Safety is prioritized with built-in high and low-pressure switches, and an optional drier filter accessory is available for enhanced efficiency. This 2.5 Ton PRODIRECT™ Series Heat Pump is both AHRI-certified and ETL-listed, meeting rigorous HVAC standards. MRCOOL® backs your investment with a standard 5-year warranty, plus an additional 5-year extended parts and compressor warranty upon registration. Offering dependable performance and long-lasting comfort, this unit is a valuable addition to any home.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585606 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Heat Pump Condenser |
| Refrigerant charge (oz) | 103 |
| Heating capacity (BTU/h) | 30000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 17.2 |
| Max fuse / breaker (A) | 30 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 30000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 73 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 28 x 24 15/16 x 28 |
|---|---|
| Weight | 157 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
You May Also Like
Make sure it is the right size, and that you have the rest of it
Most outdoor units ship alone. If you are not certain of the capacity, or of what has to go with this unit, these two will work it out with you.
Still deciding on the right equipment?
Our HVAC specialists can help you confirm sizing and compatibility before you buy.
