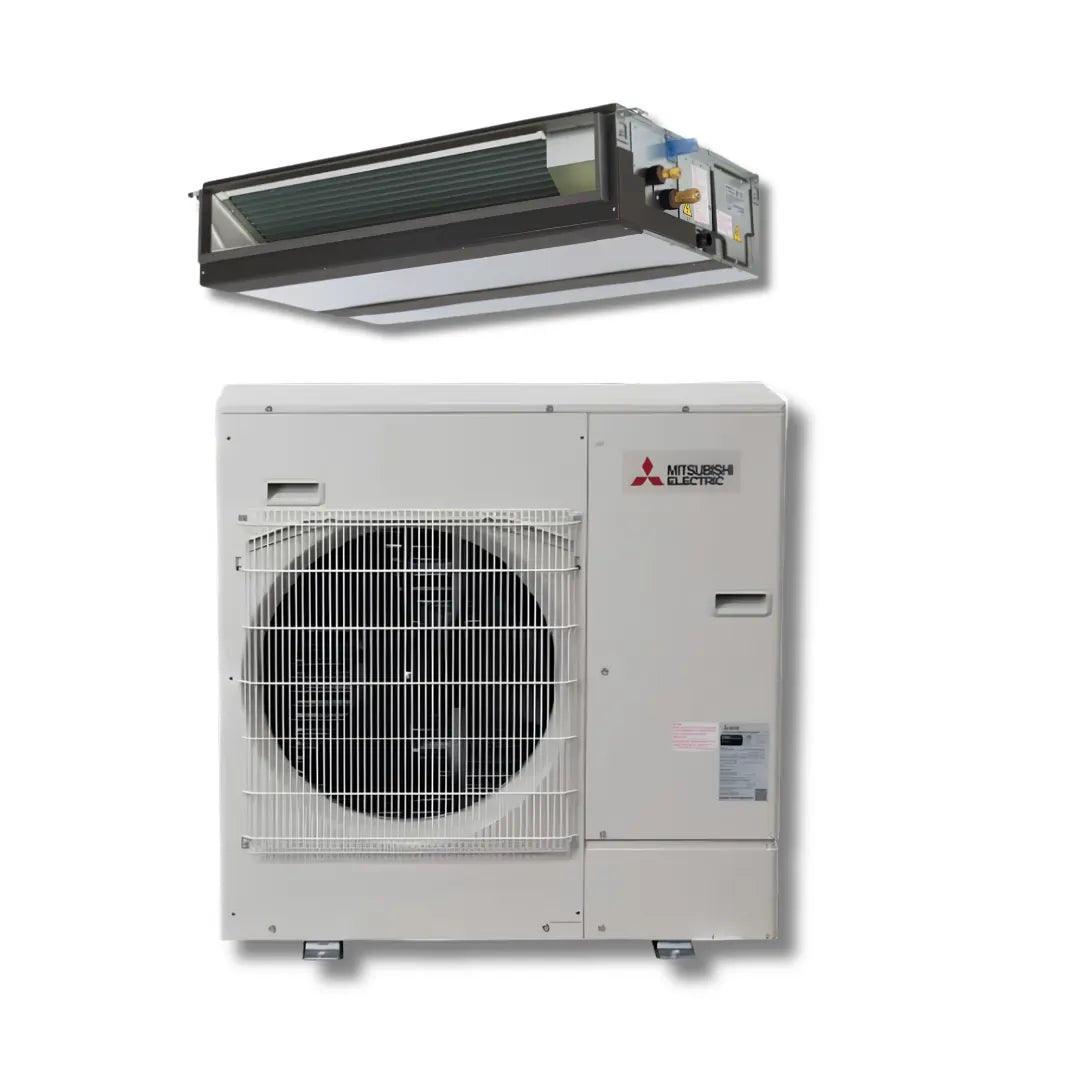

Mitsubishi PEAD-AA30NL PUZ-AH30NL 30,000 BTU 18.2 SEER2 Horizontal-Ducted Heat Pump System - R454B
2.5 Ton | SEER2 18.2 | R-454B
- 30,000 BTU cooling capacity
- Up to 18.2 SEER2 rated efficiency
- Uses R-454B refrigerant
- Built for Residential use
Key Specifications
Product Overview
Model Number: PUZ-AH30NL (outdoor) / PEAD-AA30NL (indoor)
- 18.2 SEER2 / 9.8 EER2 — R-454B refrigerant
- Nominal Cooling: 27,000 BTU/h @ 95°F | Nominal Heating: 30,800 BTU/h @ 47°F
- Concealed horizontal-ducted design for light commercial and residential applications
The Mitsubishi P-Series PEAD-AA30NL / PUZ-AH30NL is a single-zone heat pump system built for spaces where a fully concealed, ducted installation is preferred over a visible wall unit. The PEAD-AA30NL horizontal-ducted air handler mounts above the ceiling or in a mechanical space, connecting to short-run ductwork so only a small air register is visible in the room — making it a strong fit for light commercial applications, larger homes, or rooms where a wall-mounted head isn't the right look.
Built with an inverter-driven compressor, the PUZ-AH30NL outdoor unit precisely modulates capacity to match demand, avoiding the energy-wasting overshoots and short-cycling common with fixed-speed systems. The system runs on R-454B, a lower-GWP refrigerant aligned with current environmental standards. Wide-ranging external static pressure (0.14–0.60 in. WG) gives installers flexibility in ductwork design, and a built-in condensate lift mechanism (up to 27-9/16") simplifies drain line routing in tight mechanical spaces.
As part of Mitsubishi's commercial-grade P-Series line, this system is constructed for consistent performance in demanding environments, with multiple control options including the Mitsubishi Comfort app, third-party interfaces, and both wired and wireless controllers.
| Attribute | Value |
|---|---|
| Indoor Model | PEAD-AA30NL |
| Outdoor Model | PUZ-AH30NL |
| Nominal Cooling Capacity | 27,000 BTU/h @ 95°F |
| Nominal Heating Capacity | 30,800 BTU/h @ 47°F |
| SEER2 Rating | 18.2 |
| EER2 Rating | 9.8 |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter-driven |
| Install Type | Horizontal-Ducted (Concealed) |
| Number of Zones | 1 (Single-Zone) |
| External Static Pressure Range | 0.14–0.60 in. WG |
| Condensate Lift | Up to 27-9/16" |
| Control Options | Comfort App, wired controller, wireless controller, third-party interfaces |
| Fan Speed | Auto fan speed mode |
| Coastal/Corrosion Protection | Blue Fin coating on outdoor heat exchanger |
| Continuous Operation | 24-hour continuous operation (cooling mode) |
Technical Specifications
Performance
| System Type | Heat Pumps |
|---|---|
| Application | Residential |
| Capacity | 30,000 BTU |
| Tonnage | 2.5 Ton |
| SEER2 | 18.2 |
Electrical & Fuel
| Refrigerant | R-454B |
|---|---|
| Fuel Type | Electric |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
