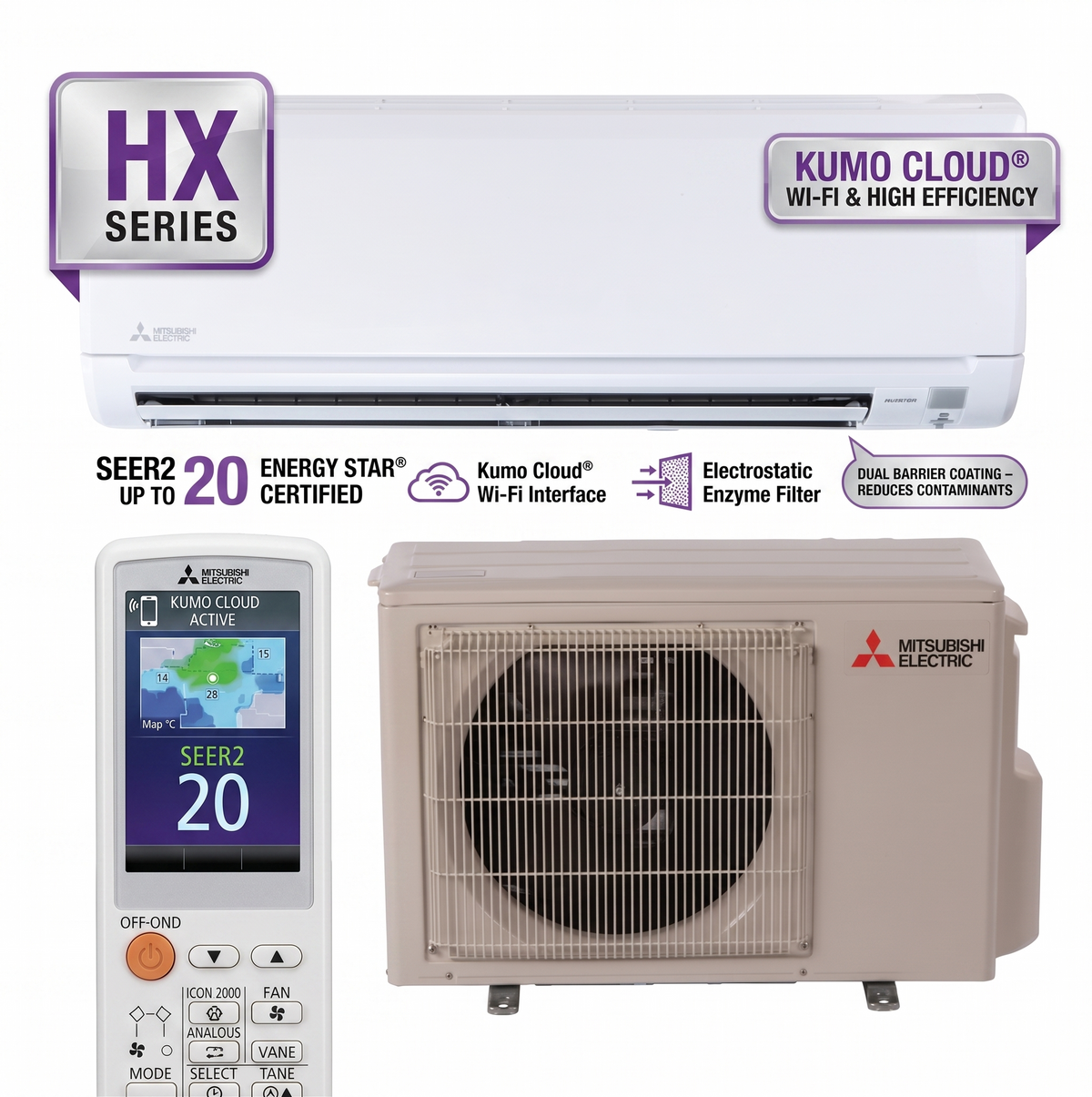

Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Mitsubishi HX-Series 24K BTU Single-Zone Ductless Mini Split Heat Pump

Efficient, quiet comfort for one dedicated space. This Mitsubishi HX-Series ductless mini split pairs the MUZ-HX24NL outdoor heat pump with the MSZ-HX24NL wall-mounted indoor unit for dependable heating and cooling without adding ductwork.

With 22,400 BTU of rated cooling, 26,000 BTU of rated heating, and 20.0 SEER2 efficiency, this system is a strong fit for large rooms, open living spaces, finished basements, additions, and high-load spaces where comfort needs to be controlled separately from the rest of the home.

Not sure if 24K is the right size? Confirm your room load, insulation, sun exposure, and installation plan before ordering so the system is matched correctly to the space.

At a Glance:

Why Choose This Mitsubishi 24K System?

• Dedicated zone comfort: Heat and cool one room or open area without tying the space to a central duct system.
• Efficient inverter performance: Mitsubishi inverter technology adjusts output as conditions change, helping maintain steadier comfort than basic on/off systems.
• Year-round heat pump operation: Provides both air conditioning and heating from the same system, with 18,200 BTU of rated heating capacity at 5F.
• Quiet wall-mounted design: The compact indoor unit mounts high on the wall to distribute air through the room while keeping floor space open.
• Modern R-454B refrigerant: Built for Mitsubishi's current R-454B equipment generation.
• Warranty confidence: Mitsubishi lists a 10-year parts and compressor limited warranty when eligible equipment is registered within 90 days, subject to warranty terms.

What Is Included?

• 1 Mitsubishi MUZ-HX24NL outdoor heat pump condenser
• 1 Mitsubishi MSZ-HX24NL wall-mounted indoor air handler
• Wireless remote control capability for the indoor unit

Before You Order:

• Have your installer confirm the room load and that a 24K system is appropriate for the space.
• Confirm line-set length, indoor and outdoor placement, condensate routing, electrical requirements, and local code requirements before purchase.
• This is not a DIY quick-connect system. Refrigerant piping, evacuation, electrical work, startup, and commissioning should be handled by a qualified HVAC professional.
• Line sets, wall brackets, disconnects, pads, electrical materials, and installation accessories may be sold separately unless specifically included.

Frequently Asked Questions:

What size room is this best for?
A 24K mini split is commonly used for large rooms, open living spaces, finished basements, additions, and high-load spaces, but the right size depends on room load, insulation, ceiling height, windows, sun exposure, and climate. A qualified installer should confirm sizing.

Does this system heat and cool?
Yes. This is a heat pump system designed for both air conditioning and heating.

Is this a DIY system?
No. This Mitsubishi system should be installed by a qualified HVAC professional.

Does it use R-454B refrigerant?
Yes. The MUZ-HX24NL / MSZ-HX24NL system is part of Mitsubishi's R-454B equipment lineup.
