Mitsubishi 20,000 BTU (6K + 9K) GX-Series 20 SEER2 Dual Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Mitsubishi GX-Series 2-Zone Wall-Mount Mini Split Heat Pump - 6K + 9K

Comfort for two separate rooms from one Mitsubishi multi-zone outdoor condenser. This GX-Series system pairs the MXZ-2D20NL outdoor heat pump with 6K + 9K wall-mounted indoor units for efficient heating and cooling without adding ductwork.

The outdoor system is in Mitsubishi's 20,000 BTU class. For non-ducted indoor combinations like this wall-mount setup, the catalog lists 18,000 BTU cooling, 24,000 BTU heating, 20 SEER2 efficiency, and AHRI certificate 216498925.

This standard heat pump configuration is a strong fit for efficient two-room comfort where extreme low-temperature capacity is not the main design requirement.

At a Glance:

Why Choose This Mitsubishi 2-Zone System?

• Two-room comfort: Heat and cool two spaces independently using one outdoor condenser.
• GX wall-mounted indoor units: GX indoor units include handheld remote control capability and built-in WiFi per the catalog.
• Efficient inverter performance: Mitsubishi inverter technology varies output to help maintain steadier comfort than basic on/off equipment.
• Current-generation refrigerant: Built around Mitsubishi's R-454B equipment lineup.
• Clean installation profile: Wall-mounted indoor units avoid ductwork and are well suited for bedrooms, offices, additions, bonus rooms, and other defined spaces.

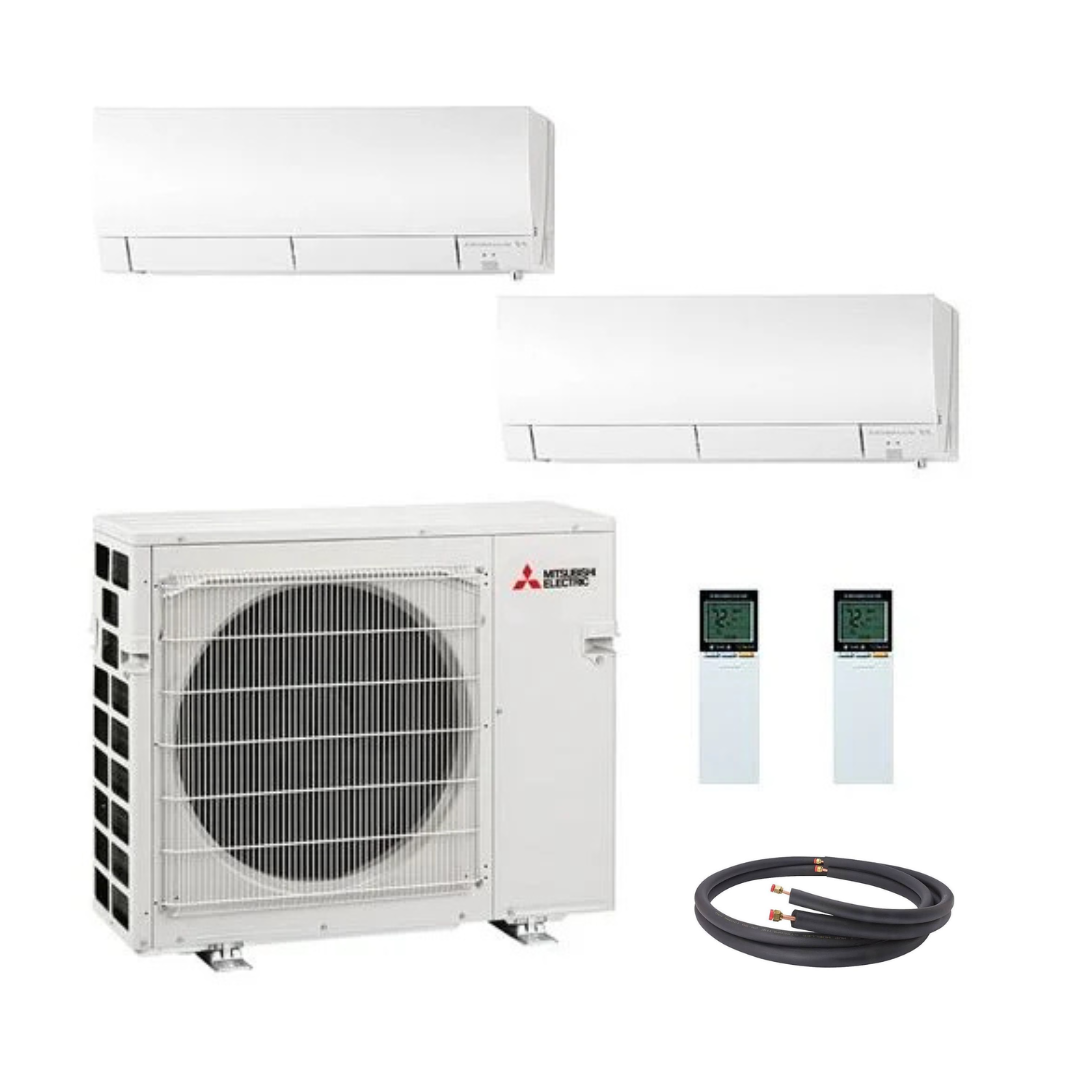

What Is Included?

• 1 Mitsubishi MXZ-2D20NL outdoor multi-zone heat pump condenser
• 1 Mitsubishi MSZ-GX06NL 6K wall-mounted indoor unit
• 1 Mitsubishi MSZ-GX09NL 9K wall-mounted indoor unit
• Handheld remote control capability for each indoor unit

Line-set note: choose a line-set length for each indoor unit. Select None for any zone where you do not want a line set included. Mixed-length line sets are supported; electrical accessories, pads, brackets, disconnects, condensate pumps, and other installation materials may need to be quoted or purchased separately.

Before You Order:

• Have your installer confirm room loads, indoor placement, outdoor placement, line-set routing, electrical requirements, and local code requirements.
• Nominal indoor sizes like 6K + 9K are not a substitute for a Manual J load calculation.
• This is not a DIY quick-connect system. Refrigerant piping, evacuation, electrical work, startup, and commissioning should be handled by a qualified HVAC professional.
• The outdoor condenser is a two-port multi-zone unit, so no branch box is required for this configuration.

Frequently Asked Questions:

Why does the title say 20,000 BTU if the indoor combination is 6K + 9K?
The outdoor unit is Mitsubishi's 20,000 BTU class MXZ-2D20 condenser. The catalog's non-ducted AHRI configuration for this condenser lists 18,000 BTU cooling and 24,000 BTU heating.

Can each room have its own temperature setting?
Yes. Each wall-mounted indoor unit can be controlled separately, subject to normal multi-zone operating limits.

Are line sets included?
Only if you select a line-set package variant. The package options are set up as matching pairs for both zones.

Is this a DIY system?
No. Mitsubishi multi-zone equipment should be installed and commissioned by a qualified HVAC professional.

Specifications:

Indoor Unit Details:
