Mitsubishi 20,000 BTU (9K + 15K) GX-Series 19.3 SEER2 Dual Zone Wall Mount Hyper Heat Mini Split Heat Pump System - R454B | 230V

Mitsubishi GX-Series 2-Zone Wall-Mount Mini Split Heat Pump - 9K + 15K

Comfort for two separate rooms from one Mitsubishi multi-zone outdoor condenser. This GX-Series system pairs the MXZ-2D20NLHZ outdoor heat pump with 9K + 15K wall-mounted indoor units for efficient heating and cooling without adding ductwork.

The outdoor system is in Mitsubishi's 20,000 BTU class. For non-ducted indoor combinations like this wall-mount setup, the catalog lists 18,000 BTU cooling, 22,000 BTU heating, 19.3 SEER2 efficiency, and AHRI certificate 216505925.

Hyper Heat performance helps maintain stronger output in cold weather, with this non-ducted configuration listed at 22,000 BTU of heating capacity at 5F.

At a Glance:

Why Choose This Mitsubishi 2-Zone System?

• Two-room comfort: Heat and cool two spaces independently using one outdoor condenser.
• GX wall-mounted indoor units: GX indoor units include handheld remote control capability and built-in WiFi per the catalog.
• Efficient inverter performance: Mitsubishi inverter technology varies output to help maintain steadier comfort than basic on/off equipment.
• Current-generation refrigerant: Built around Mitsubishi's R-454B equipment lineup.
• Clean installation profile: Wall-mounted indoor units avoid ductwork and are well suited for bedrooms, offices, additions, bonus rooms, and other defined spaces.

What Is Included?

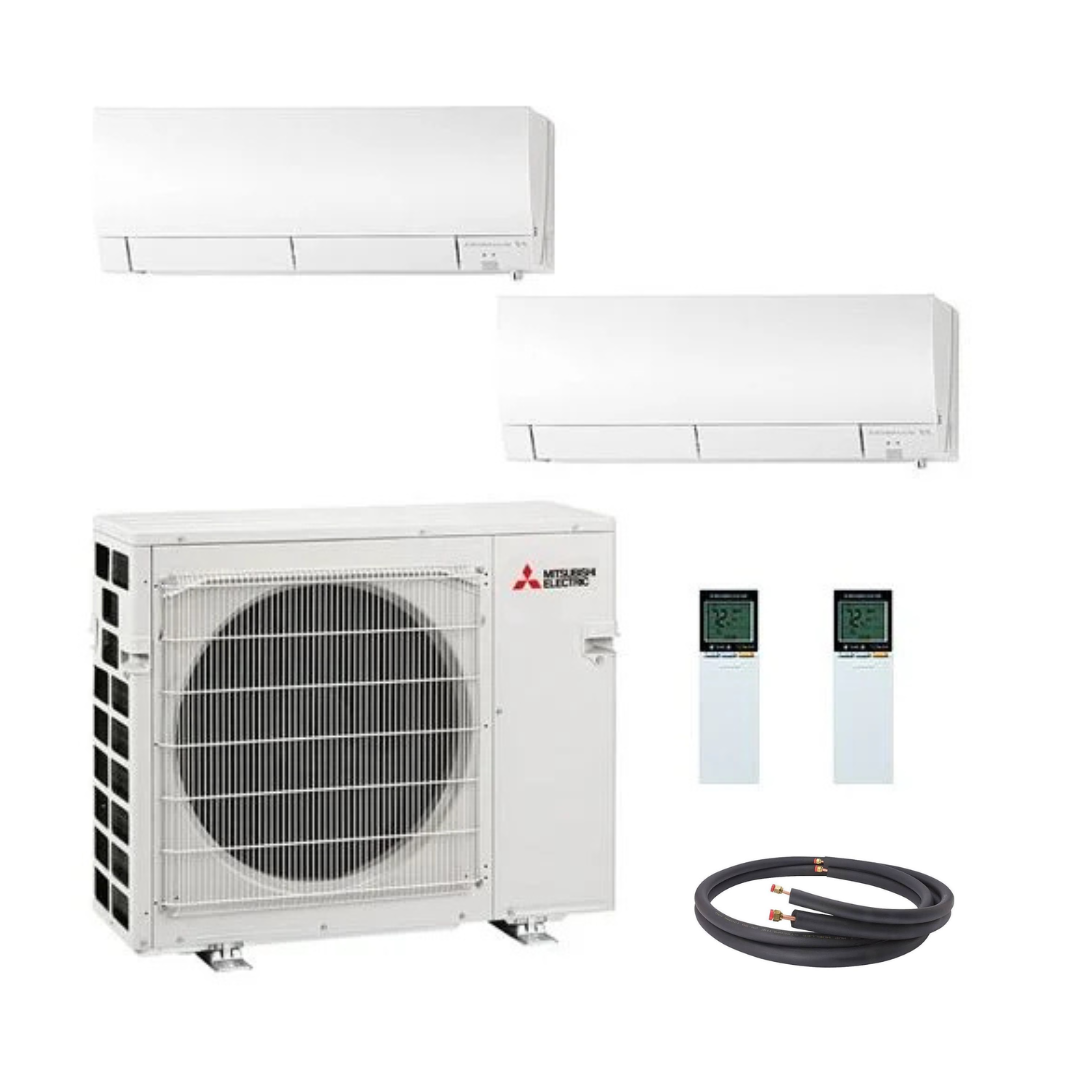

• 1 Mitsubishi MXZ-2D20NLHZ outdoor multi-zone heat pump condenser
• 1 Mitsubishi MSZ-GX09NL 9K wall-mounted indoor unit
• 1 Mitsubishi MSZ-GX15NL 15K wall-mounted indoor unit
• Handheld remote control capability for each indoor unit

Line-set note: choose a line-set length for each indoor unit. Select None for any zone where you do not want a line set included. Mixed-length line sets are supported; electrical accessories, pads, brackets, disconnects, condensate pumps, and other installation materials may need to be quoted or purchased separately.

Before You Order:

• Have your installer confirm room loads, indoor placement, outdoor placement, line-set routing, electrical requirements, and local code requirements.
• Nominal indoor sizes like 9K + 15K are not a substitute for a Manual J load calculation.
• This is not a DIY quick-connect system. Refrigerant piping, evacuation, electrical work, startup, and commissioning should be handled by a qualified HVAC professional.
• The outdoor condenser is a two-port multi-zone unit, so no branch box is required for this configuration.

Frequently Asked Questions:

Why does the title say 20,000 BTU if the indoor combination is 9K + 15K?
The outdoor unit is Mitsubishi's 20,000 BTU class MXZ-2D20 condenser. The catalog's non-ducted AHRI configuration for this condenser lists 18,000 BTU cooling and 22,000 BTU heating.

Can each room have its own temperature setting?
Yes. Each wall-mounted indoor unit can be controlled separately, subject to normal multi-zone operating limits.

Are line sets included?
Only if you select a line-set package variant. The package options are set up as matching pairs for both zones.

Is this a DIY system?
No. Mitsubishi multi-zone equipment should be installed and commissioned by a qualified HVAC professional.

Specifications:

Indoor Unit Details:
