What Size Mini Split Do I Need? A BTU Guide by Room Size

"What size mini split do I need?" is the first question almost everyone asks, and the honest answer has two parts. There's a quick estimate you can do from square footage in a couple of minutes. There's also a real calculation that accounts for your insulation, windows and climate. This guide walks through the quick version using MRCOOL's published numbers. It shows where those numbers stop being reliable and what to check before you order.

What "BTU" means on a mini split

Mini split capacity is listed in BTU per hour: how much heat the system can move out of a room (cooling) or into it (heating) in an hour. 12,000 BTU per hour is also called one "ton" of capacity. So a 24,000 BTU unit is a 2-ton system and a 36,000 BTU unit is a 3-ton system.

Each indoor unit (the "head" on the wall) is sized for the room it serves. A single-zone system has one head and one outdoor unit. A multi-zone system has one outdoor unit feeding several heads. Each head is still sized for its own room.

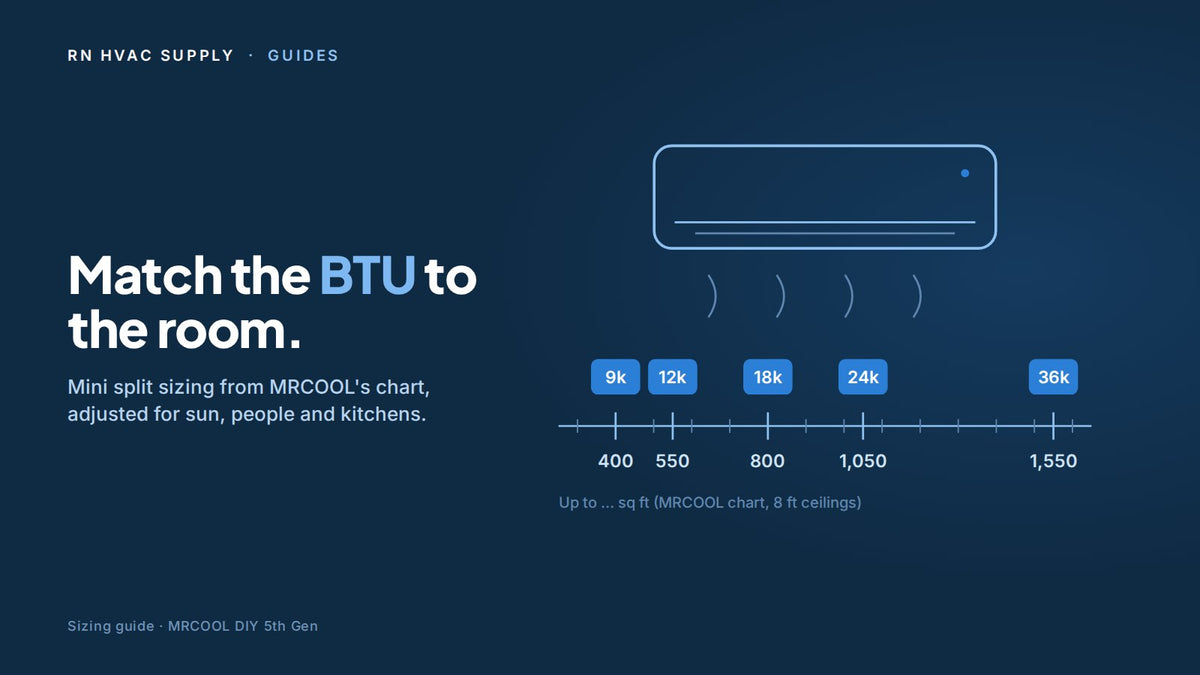

MRCOOL's sizing chart

MRCOOL publishes this chart in its support center. It assumes 8-foot ceilings, and MRCOOL notes that the figures are general estimates and that a professional load calculation is recommended.

Adjust for the room you actually have

Square footage is only the starting point. ENERGY STAR publishes four standard adjustments alongside its sizing chart for room air conditioners. They are a sensible reality check for a single room:

• Heavily shaded room: reduce capacity by 10%.
• Very sunny room: increase capacity by 10%.
• More than two people regularly in the room: add 600 BTU for each additional person.
• Kitchen: increase capacity by 4,000 BTU.

Ceiling height matters too. Both MRCOOL's chart and ENERGY STAR's assume 8-foot ceilings, so a room with vaulted or 10-foot ceilings holds more air than its floor area suggests.

Example: what size mini split for a 600 sq ft room?

On MRCOOL's chart, 600 sq ft sits in the "up to 800 sq ft" band, so the starting point is 18,000 BTU. The individual 18k support page (500 to 700 sq ft) agrees. If that 600 sq ft is an open living room and kitchen, ENERGY STAR's kitchen adjustment adds 4,000 BTU. That is the kind of case where a load calculation settles the question better than a chart.

Example: a 300 sq ft bedroom

Both MRCOOL references put 300 sq ft within the 9,000 BTU range. A bedroom rarely needs the people or kitchen adjustments. A very sunny, west-facing bedroom with large windows is the main reason to look harder.

Why you shouldn't just buy the bigger unit

It's tempting to round up "to be safe." The Department of Energy and ENERGY STAR both warn against it:

• The DOE's guidance on mini splits says oversized or poorly placed indoor units can lead to short cycling, which wastes energy and fails to give proper temperature or humidity control.
• ENERGY STAR notes that frequent on/off cycling causes humidity control problems and inefficient operation, and that oversized units tend to have shorter lives.

In practice, an oversized head cools the room quickly, shuts off, and leaves the air cool but clammy. In humid climates that's the complaint people notice first.

When to get a load calculation

ACCA Manual J is the national ANSI-recognized standard for working out heating and cooling loads in homes. ENERGY STAR advises having the system size verified with Manual J. It's worth it when:

• You're sizing several rooms or a whole floor, especially for a multi-zone system.
• The room is unusual: lots of glass, high ceilings, a finished attic or bonus room over a garage, poor insulation.
• You live somewhere cold and plan to rely on the mini split for heat. Heating, not cooling, may set the size there.
• Your room is near the edge of a size band, or the adjustments above push it over.

Practical things that go with the size you pick

Voltage

In MRCOOL's DIY 5th Gen line, the 9,000 and 12,000 BTU single-zone systems run on 115V. The 18,000, 24,000 and 36,000 BTU systems need 208–230V. If you're on the line between 12k and 18k, check whether you have (or can add) a 240V circuit where the outdoor unit will go.

Circuit size

MRCOOL's installation manual lists the breaker size and wire gauge for each unit. For example, the 9k, 12k and 18k units list a 20A maximum breaker with 12 AWG wire, the 24k a 25A breaker with 10 AWG, and the 36k a 35A breaker with 10 AWG. MRCOOL calls for the electrical work to be done by a licensed electrician to local and national codes.

Several rooms: one system or several?

MRCOOL's DIY 5th Gen multi-zone condensers run three to six indoor units from one outdoor unit. Each head is still sized to its own room, and MRCOOL lists which head sizes each condenser accepts. The 18,000 BTU 3-zone condenser, for example, takes 6k, 9k and 12k heads. If you're planning more than one room, send us the room sizes and we'll help you match heads to a condenser using MRCOOL's published combinations.

Quick checklist before you order

1. Measure the room (length × width) and note the ceiling height.
2. Find the starting size on MRCOOL's chart, and compare it with the more conservative support-page range.
3. Apply the sun, occupancy and kitchen adjustments.
4. If you're near a boundary, heating in a cold climate, or doing several rooms, get a Manual J load calculation.
5. Confirm the voltage and circuit size the unit needs.

How we wrote this: sizing figures, voltages and circuit sizes come from MRCOOL's support center and DIY 5th Gen installation manual. The adjustments and sizing warnings come from ENERGY STAR and the U.S. Department of Energy. Sources are listed below.
